DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P60AS303DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P36306DIP ROTARY SWITCH P25 7MM LOW |
0 |
|
Datasheet |
P36 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
PT65126L254SW ROTARY DIP OCTAL 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

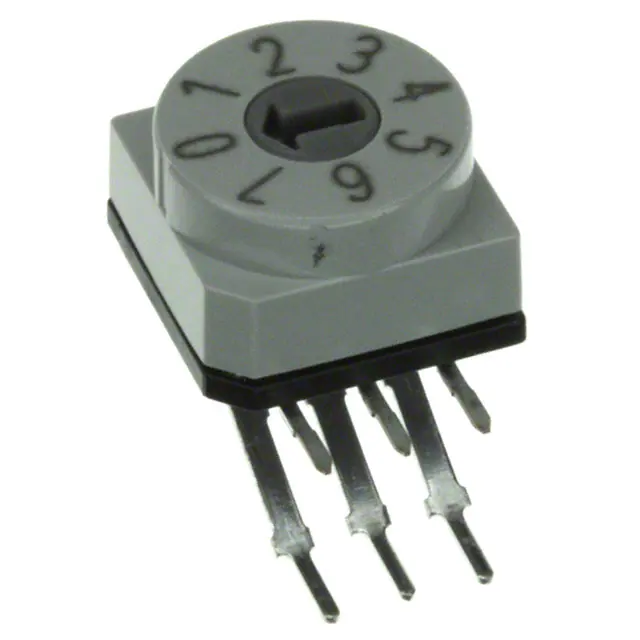

PT65127L508SW ROTARY DIP OCT COMP 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
ND3FR16BSWITCH ROTARY DIP HEX 0.1A 5V |
0 |
|
Datasheet |
ND3 | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
ND3FC10BSW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
Datasheet |
ND3 | Bulk | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
ND3FC16BSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
Datasheet |
ND3 | Bulk | Obsolete | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
P65THR103L254DIP ROTARY SWITCH P60 10MM |
0 |
|
- |
P65 | Bulk | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
|
|
P65THR101DIP ROTARY SWITCH P60 10MM |
0 |
|
Datasheet |
P65 | Bulk | Active | BCD | 10 | 200mA | 42VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -60°C ~ 125°C |
|
|
PT65726L254SW ROTARY DIP OCTAL 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65724L254SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | BCD | 6 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65721L508SWITCH ROTARY DIP SP4T 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
78J04RATSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
Datasheet |
78 | Tube | Active | SPDT | 4 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

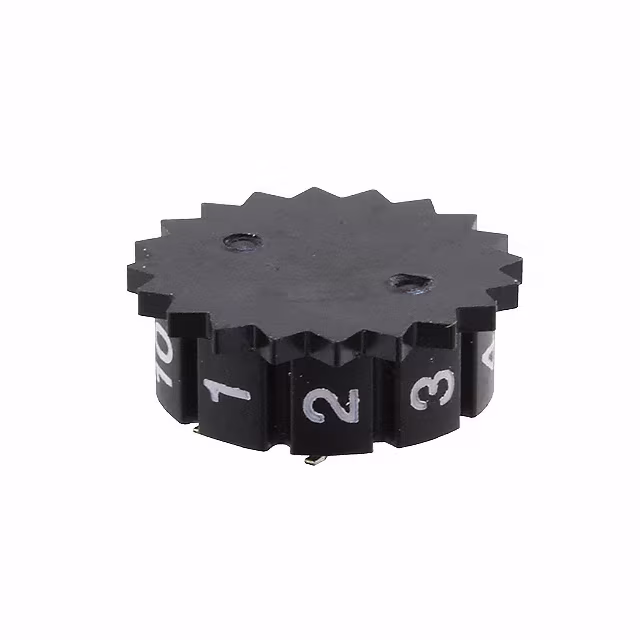

DH101ALSMT001SWITCH ROTARY DIP BCD 0.1A 42V |
0 |
|
Datasheet |
DH | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 42VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.236" (6.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
PT65326SW ROTARY DIP OCTAL 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65502L254SW ROTARY DIP BCD COMP 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65502L508SW ROTARY DIP BCD COMP 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

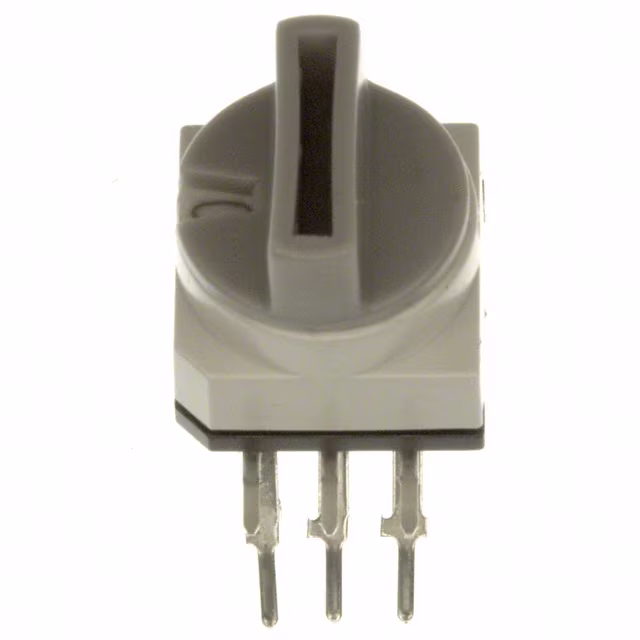

PT65501L508SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
Datasheet |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65306DIP ROTARY SWITCH P60 10MM |
0 |
|
Datasheet |
PT65 | Bulk | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
78J04SRATSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
Datasheet |
78 | Tube | Active | SPDT | 4 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
