Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16SEPC180MXCAP ALUM POLY 180UF 20% 16V TH |
10 |
|
Datasheet |
OS-CON™, SEPC | Bulk | Active | Polymer | 180 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
APSK2R5ELL561ME08SCAP ALUM POLY 560UF 20% 2.5V TH |
0 |
|
Datasheet |
NPCAP™-PSK | Bulk | Active | Polymer | 560 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.35 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
A766KE127M1CLAE027CAP ALUM POLY 120UF 20% 16V SMD |
0 |
|
Datasheet |
A766 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APSG160ELL151MF05SCAP ALUM POLY 150UF 20% 16V TH |
0 |
|
Datasheet |
NPCAP™-PSG | Bulk | Active | Polymer | 150 µF | ±20% | 16 V | 20mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
16SEPG270WCAP ALUM POLY 270UF 20% 16V TH |
1 |
|
Datasheet |
OS-CON™, SEPG | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 252 mA @ 120 Hz | 5.04 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
PLF0E821MDO1TDCAP ALUM POLY 820UF 20% 2.5V TH |
24 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
25SEPF82MCAP ALUM POLY 82UF 20% 25V TH |
23 |
|
Datasheet |
OS-CON™, SEPF | Bulk | Active | Polymer | 82 µF | ±20% | 25 V | 28mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
EEH-ZC1E330RCAP ALUM HYBRID 33UF 20% 25V SMD |
0 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 25 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 55 mA @ 100 Hz | 550 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A758MU477M1CAAE010CAP ALUM POLY 470UF 20% 16V TH |
0 |
|
Datasheet |
A758 | Bulk | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
20SEQP22MCAP ALUM POLY 22UF 20% 20V TH |
0 |
|
Datasheet |
OS-CON™, SEQP | Bulk | Active | Polymer | 22 µF | ±20% | 20 V | 60mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 22.9 mA @ 120 Hz | 458 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
6SEPC470MXCAP ALUM POLY 470UF 20% 6.3V TH |
0 |
|
Datasheet |
OS-CON™, SEPC | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 285 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
APSF2R5ELL561MF08SCAP ALUM POLY 560UF 20% 2.5V TH |
0 |
|
Datasheet |
NPCAP™-PSF | Bulk | Active | Polymer | 560 µF | ±20% | 2.5 V | 5mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 590 mA @ 120 Hz | 5.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
EEH-ZC1E680XPCAP ALUM HYBRID 68UF 20% 25V SMD |
5 |
|
Datasheet |
ZC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
20SEPF180MCAP ALUM POLY 180UF 20% 20V TH |
0 |
|
Datasheet |
OS-CON™, SEPF | Bulk | Active | Polymer | 180 µF | ±20% | 20 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
RE50E561MDN1CAP ALUM POLY 560UF 20% 2.5V TH |
0 |
|
Datasheet |
FPCAP, RE5 | Bulk | Active | Polymer | 560 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 630 mA @ 120 Hz | 6.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
 R7-Series.jpg)
|
RR70J151MDN1CAP ALUM POLY 150UF 20% 6.3V TH |
0 |
|
Datasheet |
FPCAP, RR7 | Bulk | Active | Polymer | 150 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

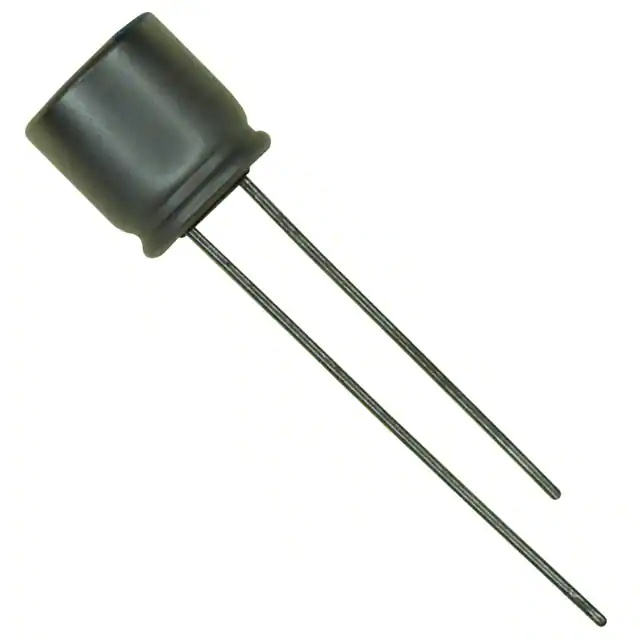

APSC6R3ELL561MH08SCAP ALUM POLY 560UF 20% 6.3V TH |
20 |
|
Datasheet |
NPCAP™-PSC | Bulk | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
RL80E821MDN1KXCAP ALUM POLY 820UF 20% 2.5V TH |
7 |
|
Datasheet |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
6SEPC560MXCAP ALUM POLY 560UF 20% 6.3V TH |
0 |
|
Datasheet |
OS-CON™, SEPC | Bulk | Active | Polymer | 560 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
RE50G561MDN1CAP ALUM POLY 560UF 20% 4V TH |
0 |
|
Datasheet |
FPCAP, RE5 | Bulk | Active | Polymer | 560 µF | ±20% | 4 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 630 mA @ 120 Hz | 6.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
