Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCR1H390MCL1GSCAP ALUM POLY 39UF 20% 50V SMD |
0 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 50 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-Series-Cap-Anti-Vibration.jpg)
|
EEH-ZK1V331VCAP ALUMHYB 330UF 20% 35V SMD |
0 |
|
Datasheet |
ZK, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1V680MCL1GSCAP ALUM POLY 68UF 20% 35V SMD |
0 |
|
Datasheet |
PCR | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 35 V | 44mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZE1H680PCAP ALUM HYBRID 68UF 20% 50V SMD |
2 |
|
Datasheet |
ZE | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZU1V331PCAP ALUMHYB 330UF 20% 35V SMD |
5 |
|
Datasheet |
ZU | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 11mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 720 mA @ 100 Hz | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
B40910A8107M000CAP ALUMHYB 100UF 20% 63V SMD |
0 |
|
Datasheet |
B40910 | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 22mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | - | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
35SEPF120MCAP ALUM POLY 120UF 20% 35V TH |
0 |
|
Datasheet |
OS-CON™, SEPF | Bulk | Active | Polymer | 120 µF | ±20% | 35 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 220 mA @ 120 Hz | 4.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
16SVPF1000MXCAP ALUM POLY 1000UF 20% 16V SMD |
0 |
|
Datasheet |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 16 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
RNL1E102MDS4CAP ALUM POLY 1000UF 20% 25V TH |
0 |
|
Datasheet |
FPCAP, RNL | Bulk | Active | Polymer | 1000 µF | ±20% | 25 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 580 mA @ 120 Hz | 5.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole |
-Photo-Taped-Size-G16.jpg)
|
EEH-AZS1J151BCAP ALUM HYBRID 150UF 20% 63V TH |
23 |
|
Datasheet |
ZS | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 63 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.657" (16.70mm) | - | Through Hole |
|
EEH-ZT1H680VCAP ALUM HYBRID 68UF 20% 50V SMD |
0 |
|
Datasheet |
ZT | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 405 mA @ 100 Hz | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
35SEK330MCAP ALUM POLY 330UF 20% 35V TH |
0 |
|
Datasheet |
OS-CON™, SEK | Bulk | Active | Polymer | 330 µF | ±20% | 35 V | 18mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 69.5 mA @ 120 Hz | 1.39 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
EEH-ZA1K220PCAP ALUM HYBRID 22UF 20% 80V SMD |
3 |
|
Datasheet |
ZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 155 mA @ 100 Hz | 1.55 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-Series-(THT-Tape-And-Box)-Photo-G12.jpg)
|
EEH-AZSJ181UBCAP ALUM HYBRID 180UF 20% 63V TH |
9 |
|
Datasheet |
ZSU-A | Cut Tape (CT) | Active | Hybrid | 180 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 700 mA @ 120 Hz | 3.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.657" (16.70mm) | - | Through Hole |
|
25SVPT330MCAP ALUM POLY 330UF 20% 25V SMD |
0 |
|
Datasheet |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
-Series-(SMD%2C-High-Temp.-Reflow)-Photo-G12.jpg)
|
EEH-ZS1H271UPCAP ALUMHYB 270UF 20% 50V SMD |
0 |
|
Datasheet |
ZSU | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 50 V | 13mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 740 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZS1J181UPCAP ALUMHYB 180UF 20% 63V SMD |
5 |
|
Datasheet |
ZSU | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 700 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
AHC1012221M035RCAP ALUMHYB 220UF 20% 35V SMD |
2 |
|
Datasheet |
AHC | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | - | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1E151MCL7GSCAP ALUM POLY 150UF 20% 25V SMD |
11 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 25 V | 23mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

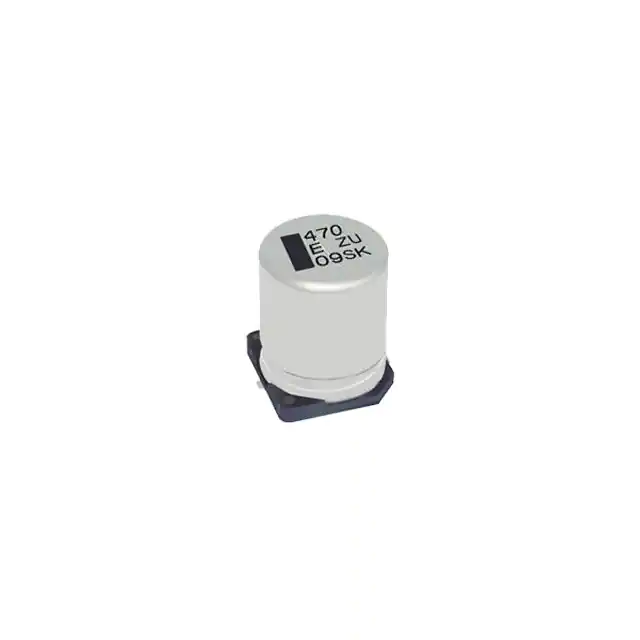

EEH-ZU1V471PCAP ALUMHYB 470UF 20% 35V SMD |
0 |
|
Datasheet |
ZU | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 35 V | 9mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 825 mA @ 100 Hz | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
