Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
63SXE33MCAP ALUM POLY 33UF 20% 63V TH |
590 |
|
Datasheet |
OS-CON™, SXE | Bulk | Active | Polymer | 33 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCX1D121MCS1GSCAP ALUM POLY 120UF 20% 20V SMD |
480 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1C271MCL1GSCAP ALUM POLY 270UF 20% 16V SMD |
400 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

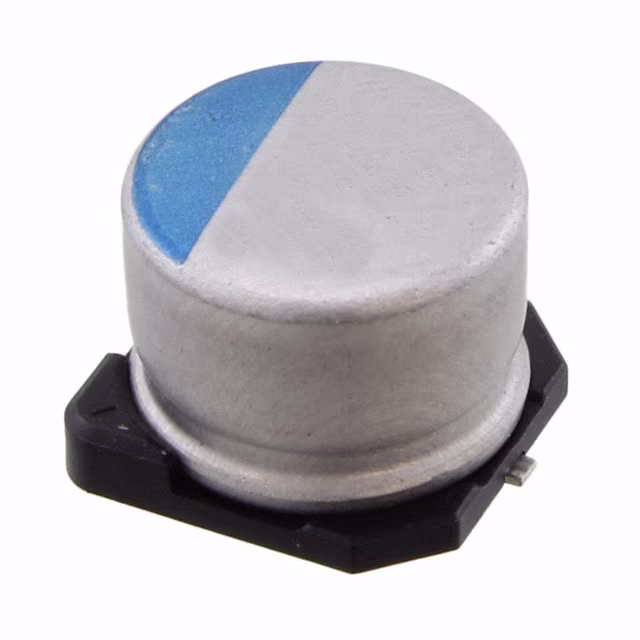

PCX1E820MCL1GSCAP ALUM POLY 82UF 20% 25V SMD |
202 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 36mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCX1E121MCL6GSCAP ALUM POLY 120UF 20% 25V SMD |
723 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 25 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
50PHV180M10X16.5CAP ALUMHYB 180UF 20% 50V SMD |
800 |
|
Datasheet |
PHV | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 50 V | 13mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
100SXV18MCAP ALUM POLY 18UF 20% 100V SMD |
678 |
|
Datasheet |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 100 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
4SVPT560MCAP ALUM POLY 560UF 20% 4V SMD |
999 |
|
Datasheet |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 22mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCV1H560MCL2GSCAP ALUM POLY 56UF 20% 50V SMD |
518 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 50 V | 28mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A700D686M008ATE015CAP ALUM POLY 68UF 20% 8V SMD |
1,453 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 8 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
HHXA250ARA331MJA0GCAP ALUMHYB 330UF 20% 25V SMD |
462 |
|
Datasheet |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
4SVT560MCAP ALUM POLY 560UF 20% 4V SMD |
968 |
|
Datasheet |
OS-CON™, SVT | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1D181MCL2GSCAP ALUM POLY 180UF 20% 20V SMD |
463 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 20 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZS1E561VCAP ALUMHYB 560UF 20% 25V SMD |
261 |
|
Datasheet |
ZS, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 600 mA @ 100 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

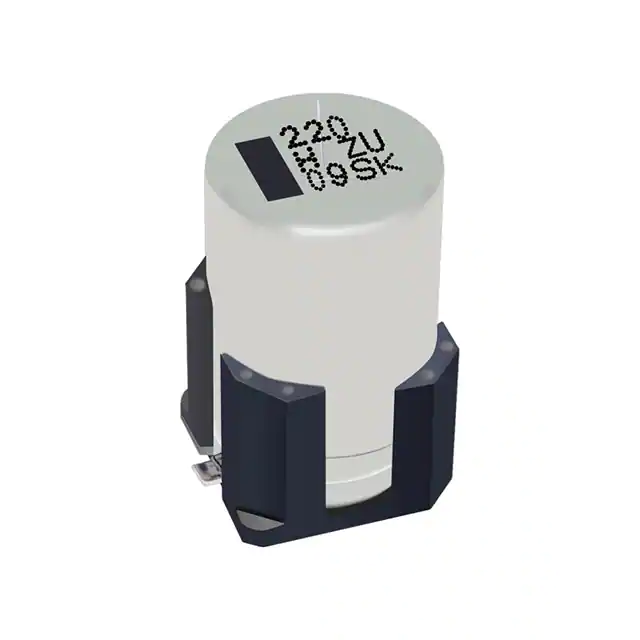

EEH-ZU1E561VCAP ALUMHYB 560UF 20% 25V SMD |
941 |
|
Datasheet |
ZU, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 8mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 870 mA @ 100 Hz | 5.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.673" (17.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCX1H220MCL1GSCAP ALUM POLY 22UF 20% 50V SMD |
247 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 50 V | 56mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXH6R3ARA471MJ80GCAP ALUM POLY 470UF 20% 6.3V SMD |
500 |
|
Datasheet |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
2R5SVPT2700MCAP ALUM POLY 2700UF 20% 2.5V |
400 |
|
Datasheet |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 2700 µF | ±20% | 2.5 V | 12mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 253.5 mA @ 120 Hz | 5.07 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
870055775003CAP ALUM POLY 33UF 20% 50V TH |
595 |
|
Datasheet |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 50 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PLV1C471MDL1CAP ALUM POLY 470UF 20% 16V TH |
132 |
|
Datasheet |
PLV | Bulk | Not For New Designs | Polymer | 470 µF | ±20% | 16 V | 23mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
