Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

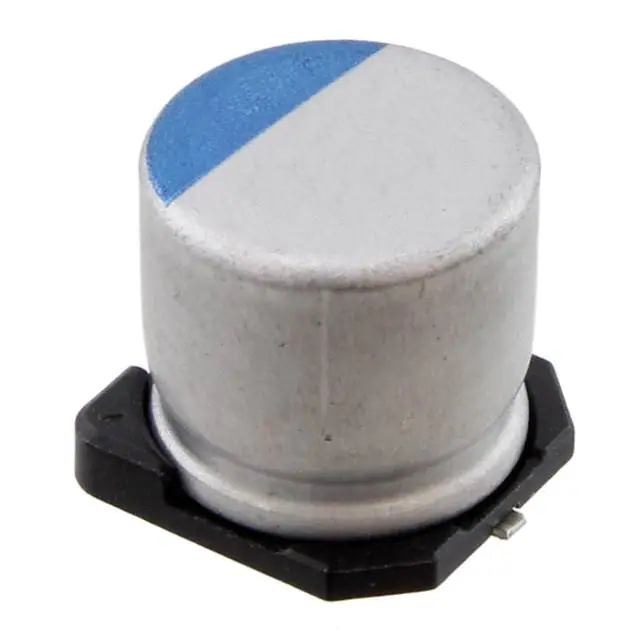

PCX1E121MCL1GSCAP ALUM POLY 120UF 20% 25V SMD |
324 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 25 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A767MU187M1VLAE028CAP ALUM POLY 180UF 20% 35V SMD |
2,619 |
|
Datasheet |
A767 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 35 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
25SEF330MCAP ALUM POLY 330UF 20% 25V TH |
177 |
|
Datasheet |
OS-CON™, SEF | Bulk | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 79 mA @ 120 Hz | 1.58 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
2SEPC1000MX+SCAP ALUM POLY 1000UF 20% 2.5V TH |
1,939 |
|
Datasheet |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
4SEP680M+TCAP ALUM POLY 680UF 20% 4V TH |
630 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 4 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
4SEP560MCAP ALUM POLY 560UF 20% 4V TH |
254 |
|
Datasheet |
OS-CON™, SEP | Bulk | Active | Polymer | 560 µF | ±20% | 4 V | 13mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 226 mA @ 120 Hz | 4.52 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
4SVPC1200MCAP ALUM POLY 1200UF 20% 4V SMD |
647 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
35SVF120MCAP ALUM POLY 120UF 20% 35V SMD |
353 |
|
Datasheet |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 35 V | 18mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 69.5 mA @ 120 Hz | 1.39 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A700W227M002ATE009CAP ALUM POLY 220UF 20% 2V SMD |
4,000 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
A700W227M2R5ATE009CAP ALUM POLY 220UF 20% 2.5V SMD |
3,964 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A781MS277M1VLAV022CAP ALUMHYB 270UF 20% 35V SMD |
2,380 |
|
Datasheet |
A781, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | Anti-Vibration | 2.98 A @ 100 Hz | 7.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount |
|
PCG1C821MCL1GSCAP ALUM POLY 820UF 20% 16V SMD |
3,820 |
|
Datasheet |
PCG | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A798D477M2R5ATE009CAP ALUM POLY 470UF 20% 2.5V SMD |
765 |
|
Datasheet |
AO-Cap A798 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.27 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | Surface Mount |
|
EEF-JX0G181RFCAP ALUM POLY 180UF 20% 4V SMD |
7,000 |
|
Datasheet |
SP-Cap JX | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 15mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEH-ZE1J330PCAP ALUM HYBRID 33UF 20% 63V SMD |
988 |
|
Datasheet |
ZE | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 60 mA @ 100 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1V390MCL2GSCAP ALUM POLY 39UF 20% 35V SMD |
1,994 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 52mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEF-JX0J121RFCAP ALUM POLY 120UF 20% 6.3V SMD |
7,000 |
|
Datasheet |
SP-Cap JX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 15mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2R5SVPA330MAACAP ALUM POLY 330UF 20% 2.5V SMD |
850 |
|
Datasheet |
OS-CON™, SVPA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 168.5 mA @ 120 Hz | 3.37 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLG1C821MDO1TDCAP ALUM POLY 820UF 20% 16V TH |
839 |
|
Datasheet |
PLG | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
EEH-ZF1E271VCAP ALUMHYB 270UF 20% 25V SMD |
602 |
|
Datasheet |
ZF, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 25 V | 20mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 150 mA @ 100 Hz | 1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
