Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
PM500-18BAC/DC CONVERTER 48V 400W |
9 |
|
![]() Datasheet |
PM500 (500W) | Bag | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 10.42 A | - | - | - | - | - | 400W (500W Forced Air) | ITE (Commercial), Medical | - | -10°C ~ 70°C | DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.50" L x 4.00" W x 1.70" H (139.7mm x 101.6mm x 43.2mm) |
![]() |

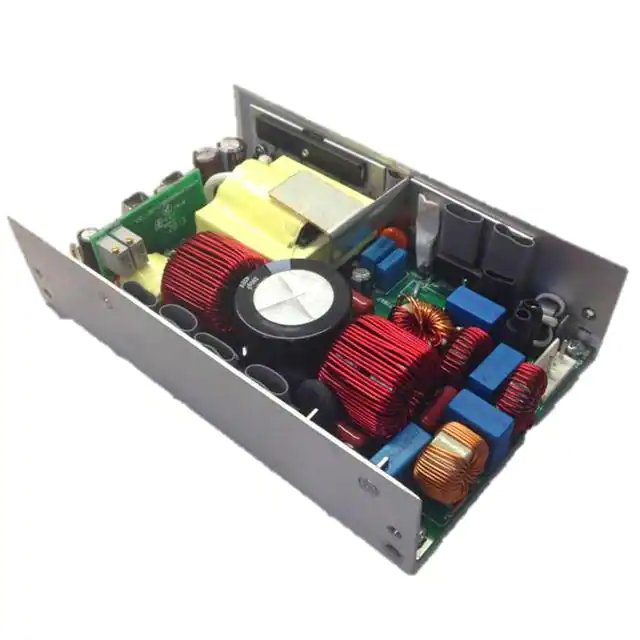

LFWLT450-1000AC/DC CONVERTER 5V 155W |
23 |
|
![]() Datasheet |
WLT450 (450W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 390 VDC | 5V | - | - | - | - | - | 31 A | - | - | - | - | - | 155W (275W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm) |
|
P33-48STAC-DC POWER MODULE 48VDC OUTPUT |
3 |
|
![]() Datasheet |
P3 | Box | Active | Enclosed | 1 | 105 ~ 125 VAC | 48V | - | - | - | - | - | 100 mA | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 1.25" H (104.1mm x 63.5mm x 31.8mm) |
![]() |

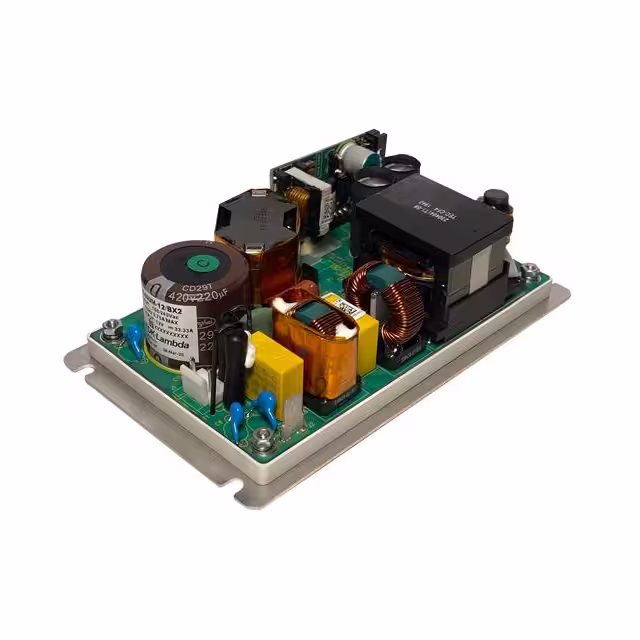

CUS400M-48/BX5AC/DC CONVERTER 48V 250W |
7 |
|
![]() Datasheet |
CUS400M (400W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 5.21 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.57" L x 3.36" W x 1.61" H (141.6mm x 85.3mm x 40.8mm) |
![]() |
GMA300F-24-CAC/DC CONVERTER 24V 300W |
4 |
|
![]() Datasheet |
GMA (300W) | Box | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.44" H (101.6mm x 50.8mm x 36.6mm) |
![]() |
GMA300F-24-R3AC/DC CONVERTER 24V 300W |
2 |
|
![]() Datasheet |
GMA (300W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.44" H (101.6mm x 50.8mm x 36.6mm) |
![]() |
GMA300F-12-CAC/DC CONVERTER 12V 300W |
2 |
|
![]() Datasheet |
GMA (300W) | Box | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.44" H (101.6mm x 50.8mm x 36.6mm) |
|
P35-15STAC-DC POWER MODULE 15VDC OUTPUT |
4 |
|
![]() Datasheet |
P3 | Box | Active | Enclosed | 1 | 105 ~ 125 VAC | 15V | - | - | - | - | - | 300 mA | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 1.56" H (104.1mm x 63.5mm x 39.6mm) |
![]() |
CUS250M-12/FJAC/DC CONVERTER 12V 250W |
9 |
|
![]() Datasheet |
CUS250M (250W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.69" L x 2.52" W x 1.56" H (119.2mm x 64.0mm x 39.5mm) |
![]() |
FLS250-2348AC/DC CONVERTER 48V 250W |
12 |
|
![]() Datasheet |
FLS250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 7.2 A | - | - | - | - | - | 250W (346W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.58" H (114.3mm x 63.5mm x 40.1mm) |
![]() |
FLS250-2312AC/DC CONVERTER 12V 199W |
12 |
|
![]() Datasheet |
FLS250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 199W (300W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.58" H (114.3mm x 63.5mm x 40.1mm) |
![]() |
LFWLT450-1001-IAC/DC CONVERTER 12V 250W |
23 |
|
![]() Datasheet |
WLT450 (450W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 390 VDC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W (450W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.87" L x 4.00" W x 1.66" H (200.0mm x 101.6mm x 42.2mm) |
![]() |
MSP-450-15AC/DC CONVERTER 15V 450W |
6 |
|
![]() Datasheet |
MSP-450 (450W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 30 A | - | - | - | - | - | 450W | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.58" L x 4.13" W x 1.61" H (218.0mm x 105.0mm x 41.0mm) |
|

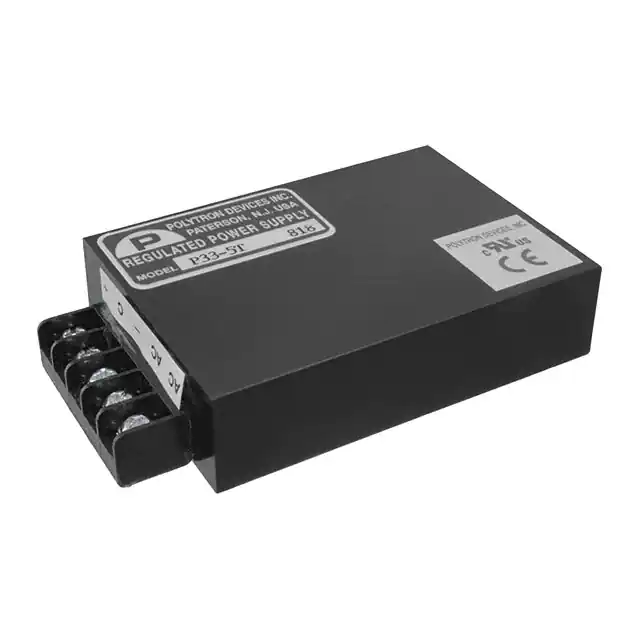

P33-5TAC/DC CONVERTER +/-5V |
5 |
|
![]() Datasheet |
P3 | Box | Active | Enclosed | 2 | 105 ~ 125 VAC | 5V | -5V | - | - | - | - | 100 mA | 100 mA | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 71°C | - | Chassis Mount | 4.10" L x 2.50" W x 0.88" H (104.1mm x 63.5mm x 22.2mm) |
![]() |

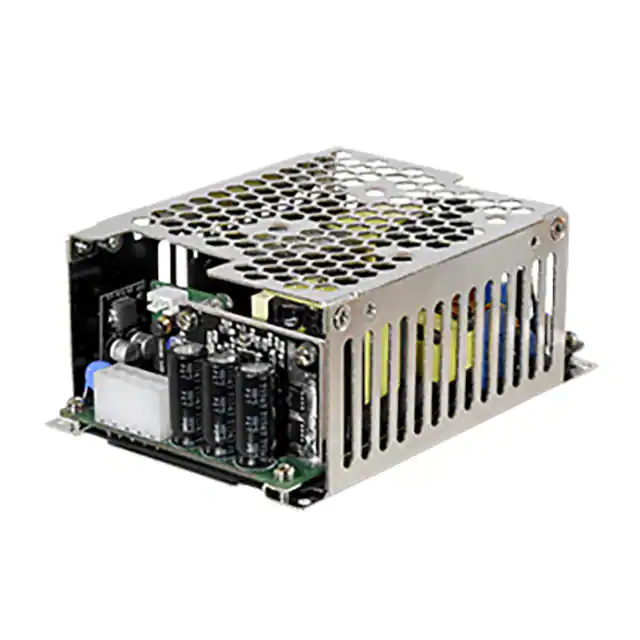

VMS-450B-12-CNFAC/DC CONVERTER 12V 450W |
0 |
|
![]() Datasheet |
VMS-450B-CNF (450W) | Bulk | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 37.5 A | - | - | - | - | - | 450W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.41" W x 1.97" H (127.0mm x 86.6mm x 50.0mm) |
![]() |

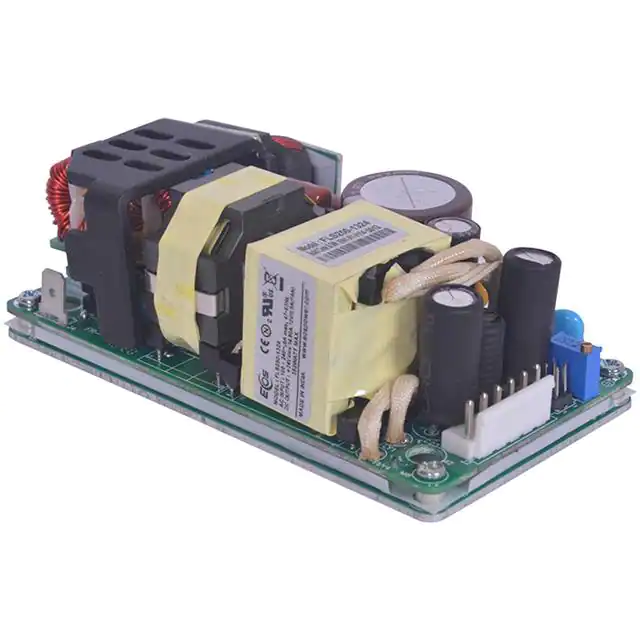

MFLS250-1048AC/DC CONVERTER 48V 250W |
24 |
|
![]() Datasheet |
MFLS250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 7.2 A | - | - | - | - | - | 250W (346W Forced Air) | Medical | 4.38 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.58" H (114.3mm x 63.5mm x 40.1mm) |
![]() |
MFLS250-1324AC/DC CONVERTER 24V 250W |
12 |
|
![]() Datasheet |
MFLS250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 14.5 A | - | - | - | - | - | 250W (348W Forced Air) | Medical | 4.38 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.58" H (114.3mm x 63.5mm x 40.1mm) |
![]() |
MFLS250-1348AC/DC CONVERTER 48V 250W |
12 |
|
![]() Datasheet |
MFLS250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 7.2 A | - | - | - | - | - | 250W (346W Forced Air) | Medical | 4.38 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.58" H (114.3mm x 63.5mm x 40.1mm) |
![]() |
MFLS250-1312AC/DC CONVERTER 12V 199W |
12 |
|
![]() Datasheet |
MFLS250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 18 A | - | - | - | - | - | 199W (216W Forced Air) | Medical | 4.38 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.58" H (114.3mm x 63.5mm x 40.1mm) |
![]() |
PJMA600F-36AC/DC CONVERTER 36V 601W |
4 |
|
![]() Datasheet |
PJMA (600W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 601W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.72" W x 2.40" H (214.9mm x 119.9mm x 61.0mm) |
