Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
MFLS250-1024AC/DC CONVERTER 24V 250W |
16 |
|
![]() Datasheet |
MFLS250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 14.5 A | - | - | - | - | - | 250W (348W Forced Air) | Medical | 4.38 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.58" H (114.3mm x 63.5mm x 40.1mm) |
![]() |
TPP 150-148AC/DC CONVERTER 48V 150W |
10 |
|
![]() Datasheet |
TPP 150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.13 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | 4 kV | -25°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.94" H (116.8mm x 62.0mm x 49.3mm) |
![]() |
LFWLT450-1003-IAC/DC CONVERTER 24V 295W |
24 |
|
![]() Datasheet |
WLT450 (450W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC, 120 ~ 390 VDC | 24V | - | - | - | - | - | 12.3 A | - | - | - | - | - | 295W (450W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.87" L x 4.00" W x 1.66" H (200.0mm x 101.6mm x 42.2mm) |
![]() |
OFM2255225AC/DC CONVERTER 12V 155W |
24 |
|
![]() Datasheet |
OFM225 (225W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.9 A | - | - | - | - | - | 155W | ITE (Commercial), Medical | 4 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.19" L x 5.00" W x 1.58" H (81.0mm x 127.0mm x 40.1mm) |
![]() |
TPP 180-153-MAC/DC CONVERTER 53V 150W |
12 |
|
![]() Datasheet |
TPP 180-M (180W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 53V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.75" H (91.4mm x 62.0mm x 44.5mm) |
![]() |
MULP275-1030AC/DC CONVERTER 30V 160W |
4 |
|
![]() Datasheet |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 30V | - | - | - | - | - | 5.33 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) |
![]() |
MULP275-0048AC/DC CONVERTER 48V 160W |
4 |
|
![]() Datasheet |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
![]() |
MULP275-0348AC/DC CONVERTER 48V 160W |
4 |
|
![]() Datasheet |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
![]() |
MULP275-0058AC/DC CONVERTER 58V 160W |
4 |
|
![]() Datasheet |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 58V | - | - | - | - | - | 2.76 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
![]() |
MULP275-0358AC/DC CONVERTER 58V 160W |
4 |
|
![]() Datasheet |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 58V | - | - | - | - | - | 2.76 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
![]() |
MULP275-1058AC/DC CONVERTER 58V 160W |
2 |
|
![]() Datasheet |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 58V | - | - | - | - | - | 2.76 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) |
![]() |
MULP275-0015AC/DC CONVERTER 15V 160W |
2 |
|
![]() Datasheet |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 15V | - | - | - | - | - | 10.66 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
|

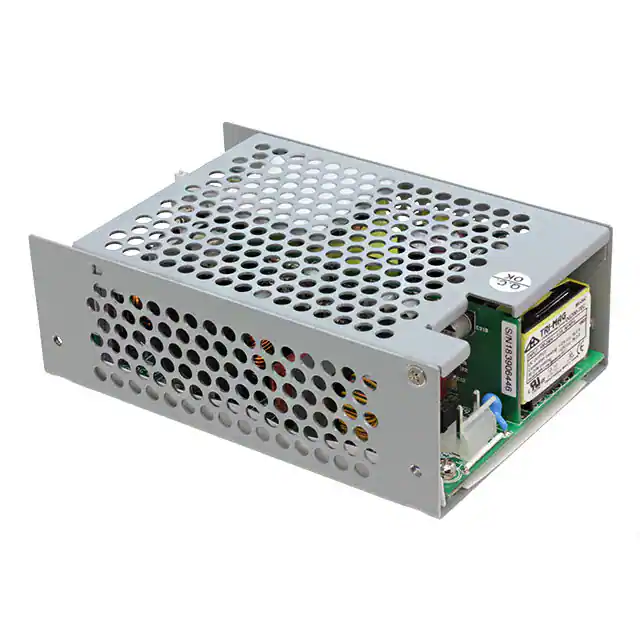

DG160-7ECAC/DC CONVERTER 12V 160W |
5 |
|
![]() Datasheet |
Tri-Mag, DG160 (160W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 13.3 A | - | - | - | - | - | 160W (240W Forced Air) | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) |
![]() |

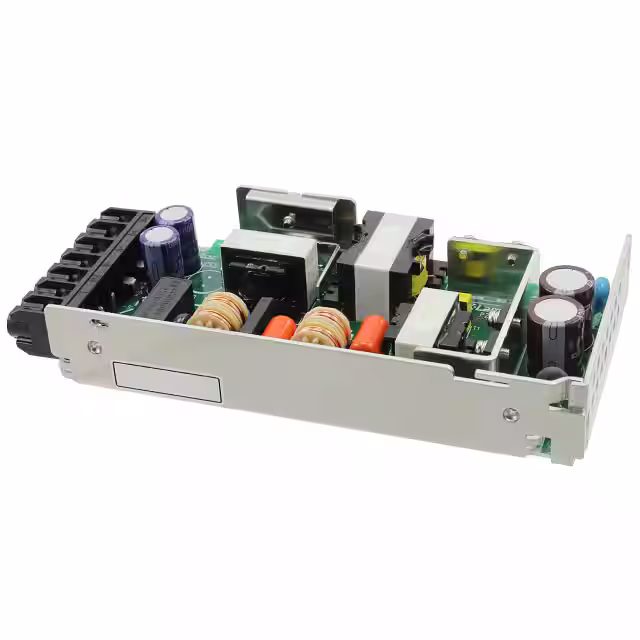

HWS100A-12/MEAC/DC CONVERTER 12V 100W |
3 |
|
![]() Datasheet |
HWS/ME (100W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 6.32" L x 1.32" W x 3.27" H (160.5mm x 33.5mm x 83.0mm) |
![]() |
PBA100F-3R3-NAC/DC CONVERTER 3.3V |
4 |
|
![]() Datasheet |
PBA (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.79" L x 1.26" W x 3.66" H (147.1mm x 32.0mm x 93.0mm) |
![]() |
VSBU-150C-24AC/DC CONVERTER 24V 150W |
20 |
|
![]() Datasheet |
VSBU-150C (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
![]() |
MVPS600-1048AC/DC CONVERTER 48V 600W |
22 |
|
![]() Datasheet |
MVPS600 (600W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 390 VDC | 48V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 600W | Medical | 4.245 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.50" L x 5.00" W x 1.61" H (216.0mm x 127.0mm x 41.0mm) |
![]() |
TPP 180-148-MAC/DC CONVERTER 48V 150W |
20 |
|
![]() Datasheet |
TPP 180-M (180W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 150W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.60" L x 2.44" W x 1.75" H (91.4mm x 62.0mm x 44.5mm) |
![]() |

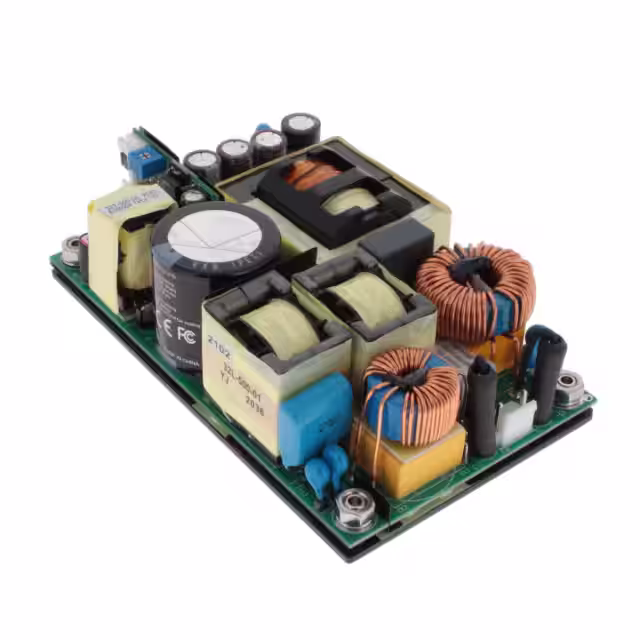

CFM500M360AC/DC CONVERTER 36V 320W |
15 |
|
![]() Datasheet |
CFM500M (500W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 8.89 A | - | - | - | - | - | 320W (500W Forced Air) | Household Appliances, Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
![]() |

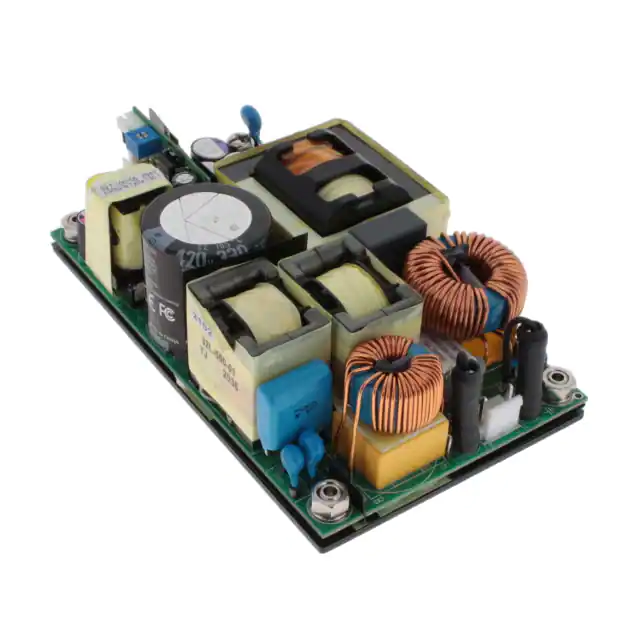

CFM500M120AC/DC CONVERTER 12V 250W |
8 |
|
![]() Datasheet |
CFM500M (500W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W (500W Forced Air) | Household Appliances, Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
