MM5Z5V1ST1G

Part No.:: MM5Z5V1ST1G

Manufacturer:: onsemi

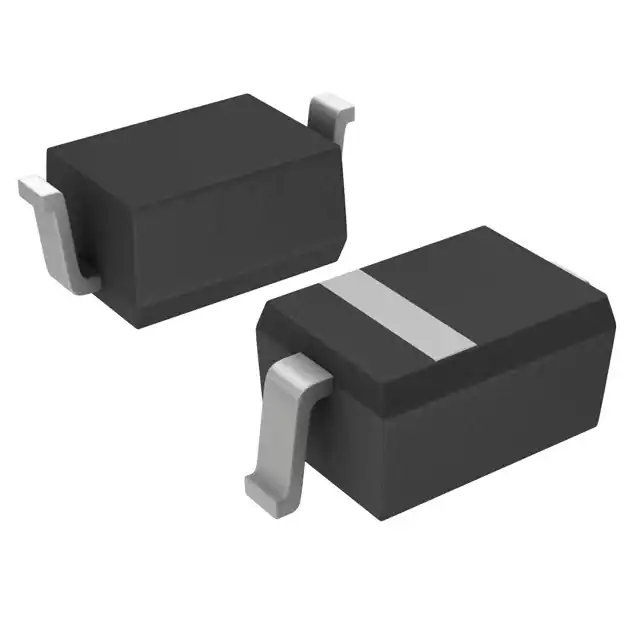

Package:: SC-79, SOD-523

Datasheet:: MM5Z5V1ST1G.pdf

Description:: DIODE ZENER 5.1V 500MW SOD523

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Article Details

Details
Comparison

This series of Zener diodes is packaged in a SOD−523 surfacemount package. They are designed to provide voltage regulationprotection and are especially attractive in situations where space is at apremium. They are well suited for applications such as cellularphones, hand held portables, and high density PC boards.

Part Number	MM5Z5V1ST1G	MM3Z5V6ST1G	MM3Z3V9ST1G	MM3Z18VST1G	MM3Z6V8ST1G
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi
Series	-	-	-	-	-
Package/Case	SC-79, SOD-523	SC-79, SOD-523	SC-79, SOD-523	SC-79, SOD-523	SC-79, SOD-523
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	5.1 V	5.1 V	5.1 V	5.1 V	5.1 V
Tolerance	±2%	±2%	±2%	±2%	±2%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	60 Ohms	60 Ohms	60 Ohms	60 Ohms	60 Ohms
Current - Reverse Leakage @ Vr	2 µA @ 2 V	2 µA @ 2 V	2 µA @ 2 V	2 µA @ 2 V	2 µA @ 2 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	SOD-523	SOD-523	SOD-523	SOD-523	SOD-523
