Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7108K2ZBISWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Potted | -30°C ~ 85°C |
|
T105MHZBESWITCH TOGGLE SPDT 0.4VA 20V |
5 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

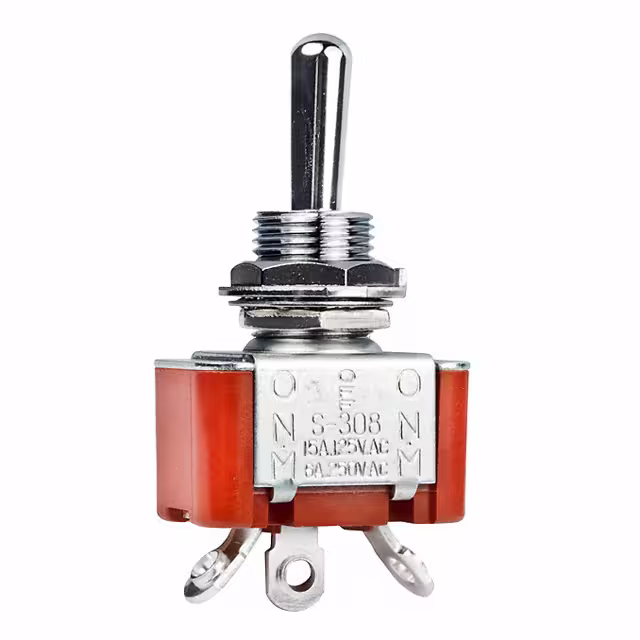

S308/328SWITCH TOGGLE SPDT 15A 125V |
0 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Low Temperature Lubricant | -30°C ~ 70°C |
|

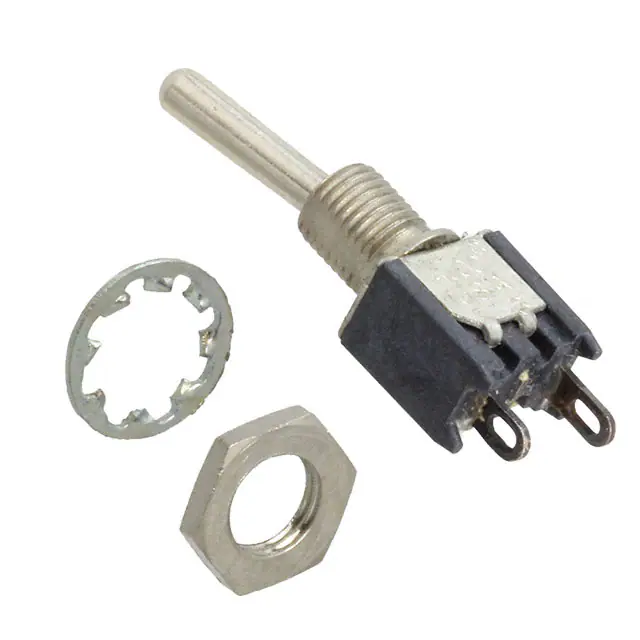

TT13A3TSWITCH TOGGLE SPST 3A 125V |
0 |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount | SPST | On-Off | 3A (AC/DC) | 125 V | 28 V | Standard Round | 9.68mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.83mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201P3YCBESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7105T1CWZBESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5236WWAX814TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
5247ZATOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
TL36WW05200TOGGLE SWITCH SMT TL PCB MOUNT |
0 |
|
- |
TL | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5237YCDB4NX445TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
MN19SS2W45ANGLE PC MOUNT MINIATURE TOGGLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7201T1CWCBESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T203MHAVQESWITCH TOGGLE DPDT 2A 120V |
0 |
|
Datasheet |
T | Tray | Active | Panel Mount, Right Angle, Vertical | DPDT | On-Off-On | 2A (AC/DC) | 120 V | 28 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7215P1YZQESWITCH TOGGLE SP3T 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2FC53-52/TABSSWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 10.31mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
2FB53-52SWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 10.31mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
7201L1YABESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 16.26mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

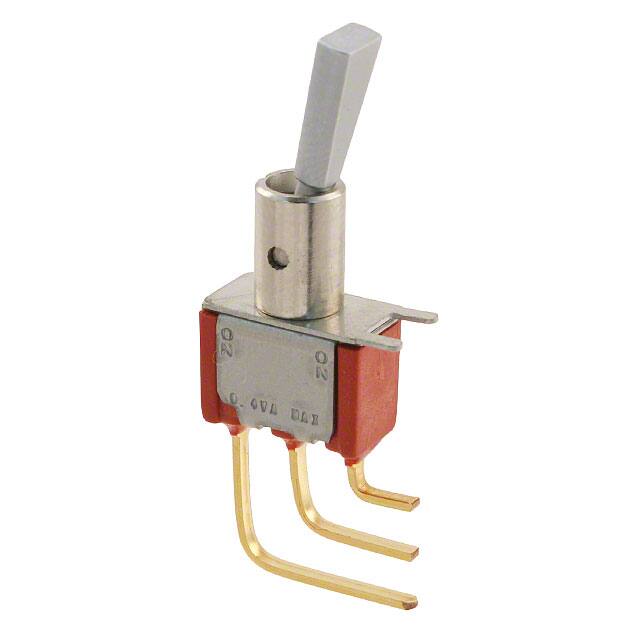

7101P3Y9AV2BESSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Satin Chrome Actuator | -30°C ~ 85°C |
|
|
7205SPHCGESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7211MDZQESWITCH TOGGLE SP3T 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
