Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7201K2W1QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
MN13SS2G45SWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
2FB63-22SWITCH TOGGLE SPDT 6A 125V |
0 |
|
- |
F | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 12.70mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
E211MD9AGESWITCH TOGGLE SP3T 7.5A 125V |
0 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle | SP3T | On-On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
E203MD1V31BETOGGLE SWITCHES |
0 |
|
Datasheet |
E | Tray | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | - | -30°C ~ 85°C |
|
|
2GB54-NBL8SWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GC54-NBL8SWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
M2044B2B1A01SWITCH TOGGLE DP3T 6A 125V |
0 |
|
- |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
MN12LL1W01-CBUSHING MOUNT MINIATURE TOGGLE |
0 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 5.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN19B2B1G01BUSHING MOUNT MINIATURE TOGGLE |
0 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
TL46MW00000SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
SF36S00000016SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
SF | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 11.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -20°C ~ 85°C |
|
|
MAAOA-BLSWITCH TOGGLE SPST 20A 125V |
0 |
|
- |
215 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 10.67mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Rectangular - 30.94mm x 16.66mm | Unthreaded | - | - | 0°C ~ 85°C |
|
|
MAAOA-WHSWITCH TOGGLE SPST 20A 125V |
0 |
|
- |
215 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 10.67mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Rectangular - 30.94mm x 16.66mm | Unthreaded | - | - | 0°C ~ 85°C |
|
|
215-WHSWITCH TOGGLE SPST 20A 125V |
0 |
|
- |
215 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 10.67mm | Non-Illuminated | - | - | Screw Terminal | Rectangular - 30.94mm x 16.66mm | Unthreaded | - | - | 0°C ~ 85°C |
|
|
215-BLSWITCH TOGGLE SPST 20A 125V |
0 |
|
- |
215 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Paddle | 10.67mm | Non-Illuminated | - | - | Screw Terminal | Rectangular - 30.94mm x 16.66mm | Unthreaded | - | - | 0°C ~ 85°C |
|

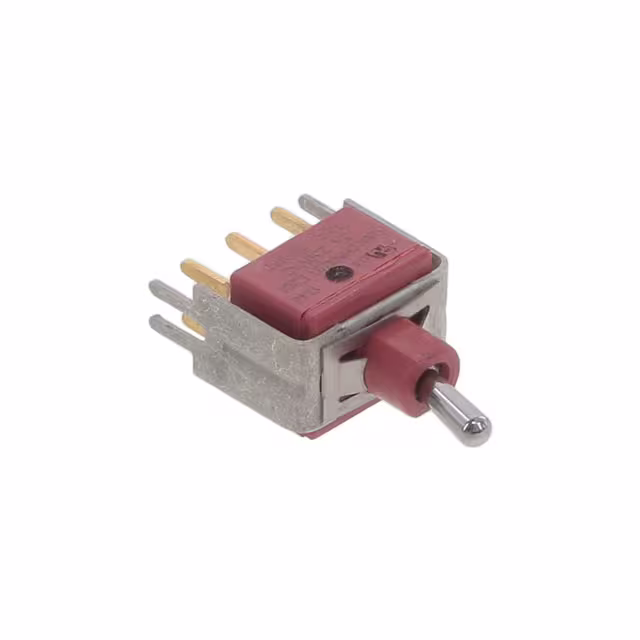

E201MD1V3QESWITCH TOGGLE DPDT 7.5A 125V |
0 |
|
Datasheet |
E | Tray | Active | Through Hole | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5238YCDB17X681TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
SF39S00000016SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
SF | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 11.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -20°C ~ 85°C |
|
T203SHZBESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
T | Tray | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
