Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T203STDCBESWITCH TOGGLE DPDT 0.4VA 20V |
50 |
|
Datasheet |
T | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.38mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101K2AV2QEGSWITCH TOGGLE SPDT 5A 120V |
28 |
|
Datasheet |
7000 | Bag | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201MD9V4BESWITCH TOGGLE DPDT 0.4VA 20V |
35 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

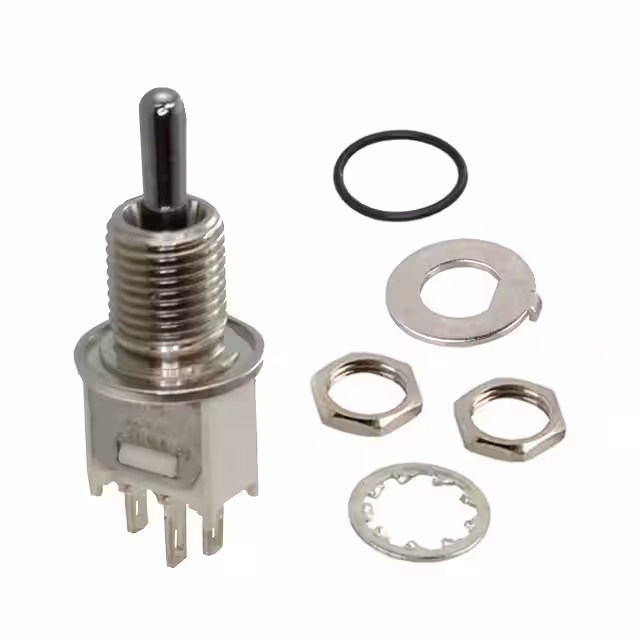

T105SCFZQESWITCH TOGGLE SPDT 2A 120V |
36 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 2A (AC/DC) | 120 V | 28 V | Standard Round | 7.11mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

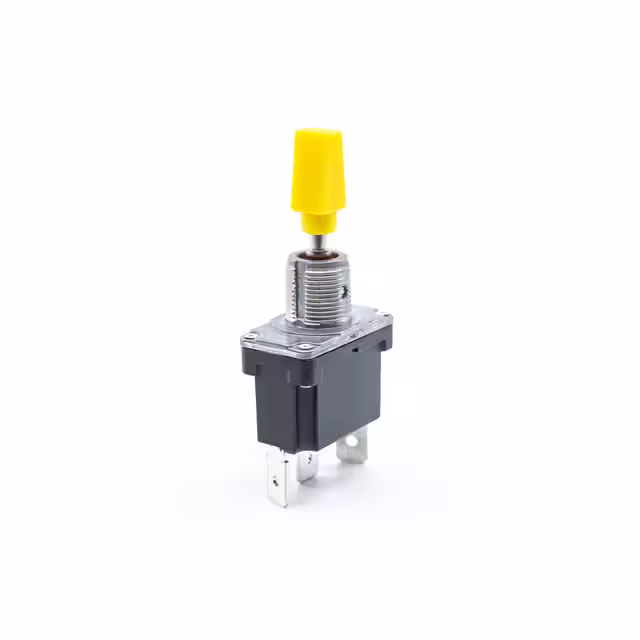

ST5SP81T2C2SWITCH TOGGLE SPDT 20A 125V |
25 |
|
Datasheet |
ST5 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Flatted | 22.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP40 | - | -10°C ~ 125°C |
|
7201SH3ZGESWITCH TOGGLE DPDT 5A 120V |
33 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

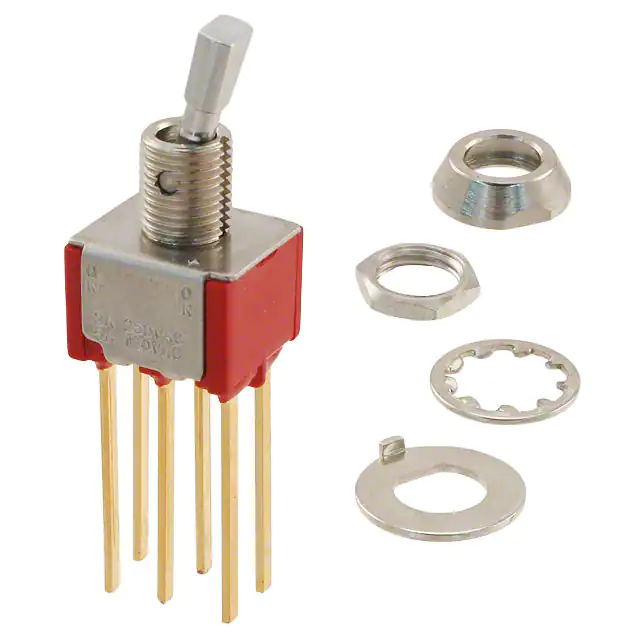

7201P4DWGESWITCH TOGGLE DPDT 5A 120V |
32 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7105P3Y1CBESWITCH TOGGLE SPDT 0.4VA 20V |
49 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

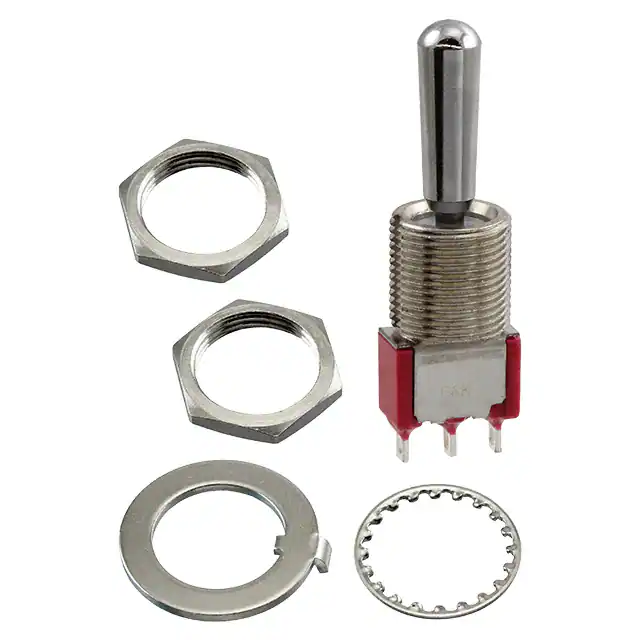

7103TCWZQESWITCH TOGGLE SPDT 5A 120V |
22 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

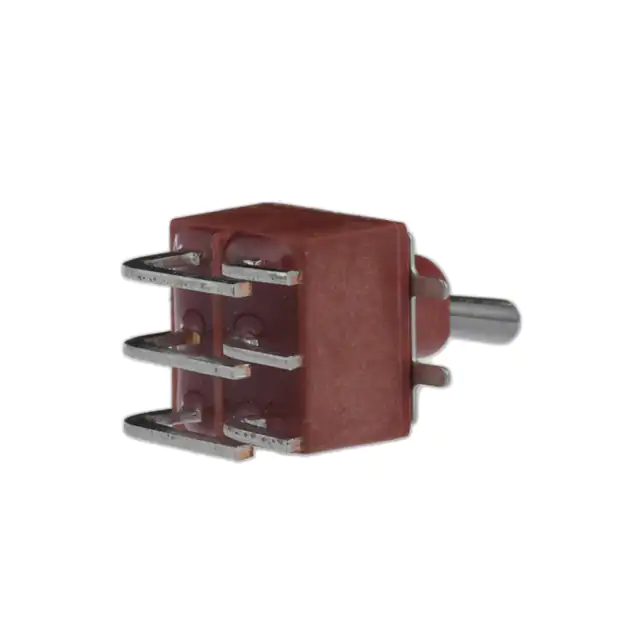

E201MD1ASESWITCH TOGGLE DPDT 7.5A 125V |
69 |
|
Datasheet |
E | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TS126SZQ2SWITCH TOGGLE SPDT 6A 125V |
13 |
|
Datasheet |
TS | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC) | 125 V | - | Knurled Cap | 10.87mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.53mm Dia | 11/16-28 | IP67 - Dust Tight, Waterproof | Black Actuator | -30°C ~ 85°C |
|
|
7108TCWZQESWITCH TOGGLE SPDT 5A 120V |
39 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7215P3YZBESWITCH TOGGLE SP3T 0.4VA 20V |
37 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

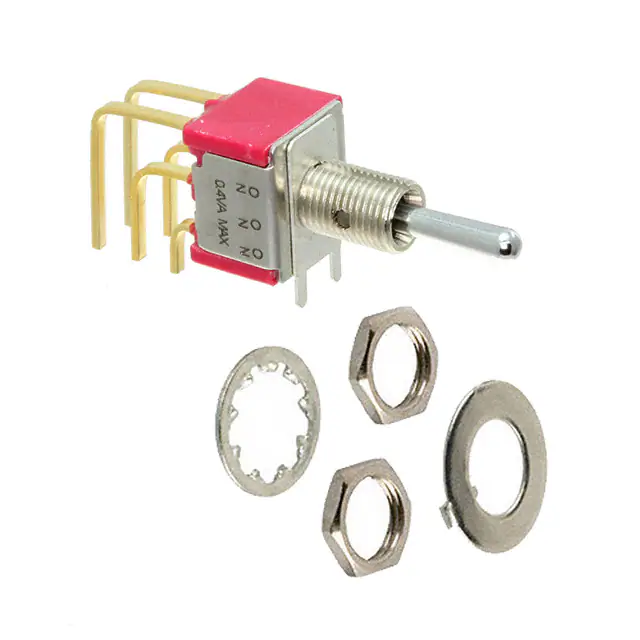

7213SPYAV2BESWITCH TOGGLE SP3T 0.4VA 20V |
74 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SP3T | On-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5648AKBSWITCH TOGGLE DPDT 6A 125V |
50 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Front Panel Sealing | -40°C ~ 85°C |
|
ATLE44E-6M3-ZSWITCH TOGGLE 4PDT 50MA 48V |
14 |
|
Datasheet |
ATLE4 | Tray | Active | Through Hole, Right Angle | 4PDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
|
T201SHCBESWITCH TOGGLE DPDT 0.4VA 20V |
46 |
|
Datasheet |
T | Tray | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105TCWCQESWITCH TOGGLE SPDT 5A 120V |
20 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203P4YZQESWITCH TOGGLE DPDT 5A 120V |
21 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101T2PZQESWITCH TOGGLE SPDT 5A 120V |
45 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 15.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
