Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

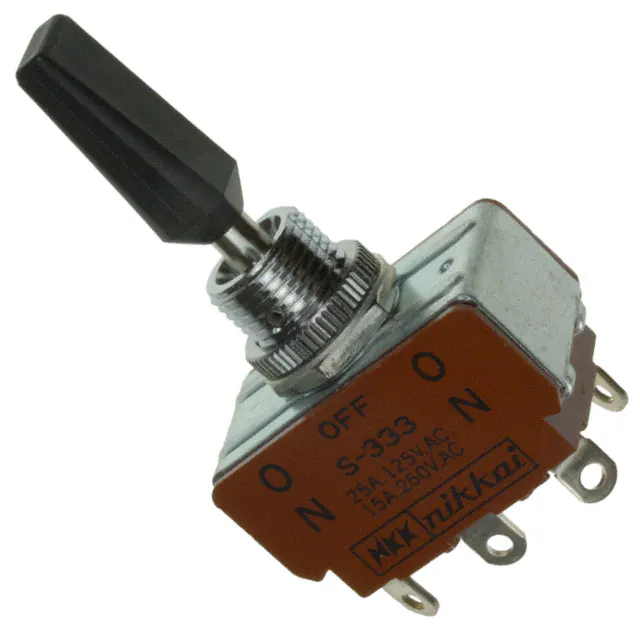

S333RSWITCH TOGGLE DPDT 20A 125V |
23 |
|
Datasheet |
S300R | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Black Actuator | -10°C ~ 70°C |
|

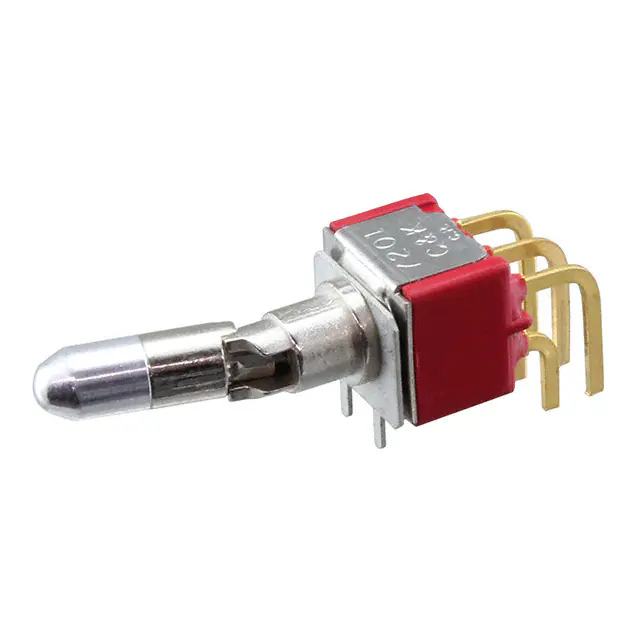

7201K9AGESWITCH TOGGLE DPDT 5A 120V |
78 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7203K2ZQESWITCH TOGGLE DPDT 5A 120V |
84 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

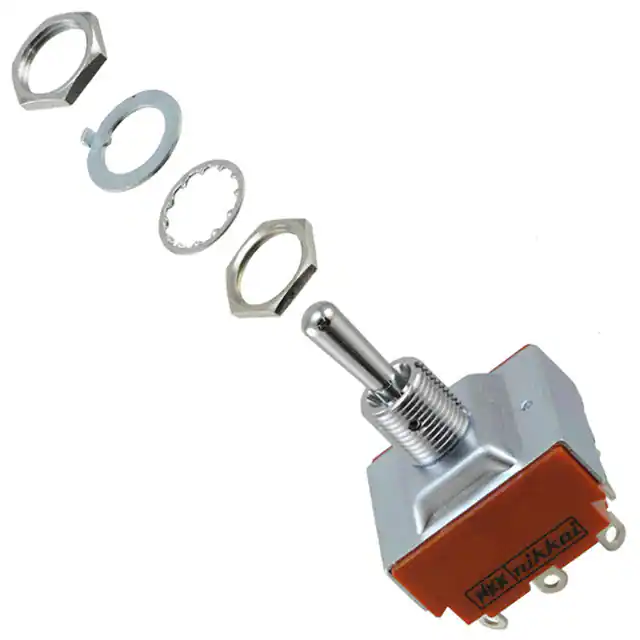

S33SWITCH TOGGLE 3PDT 20A 125V |
39 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

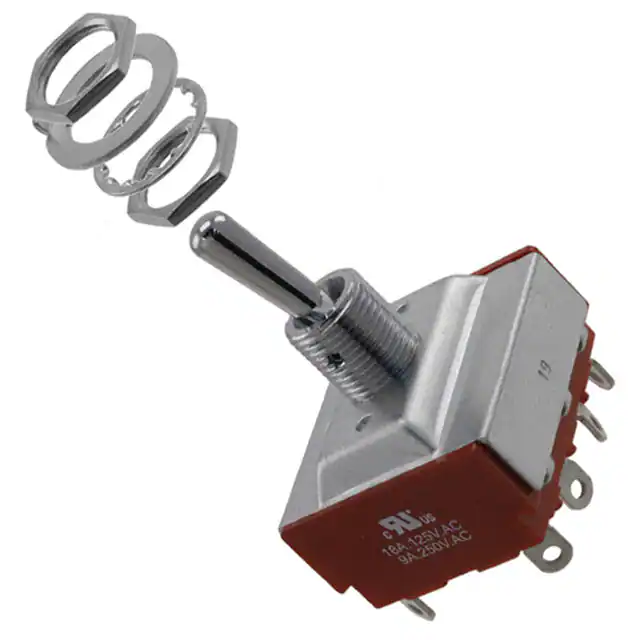

S41SWITCH TOGGLE 4PST 20A 125V |
76 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

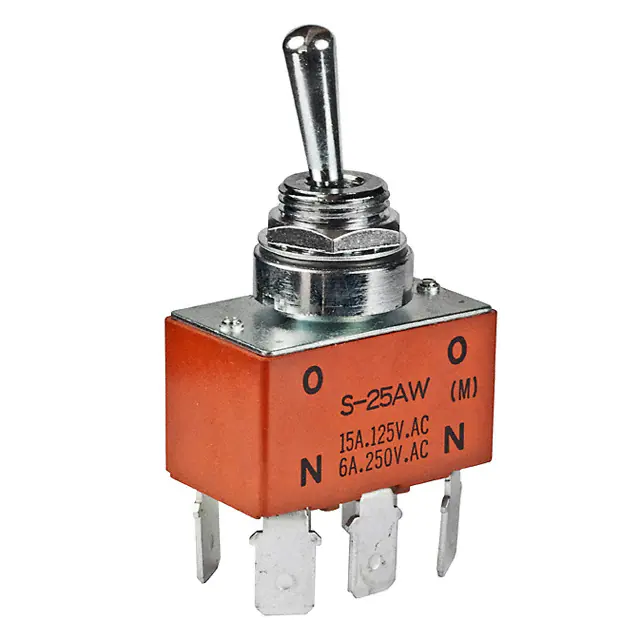

S25AWFSWITCH TOGGLE DPDT 15A 125V |
89 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
649HSWITCH TOGGLE DPDT 10A 250V |
53 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|

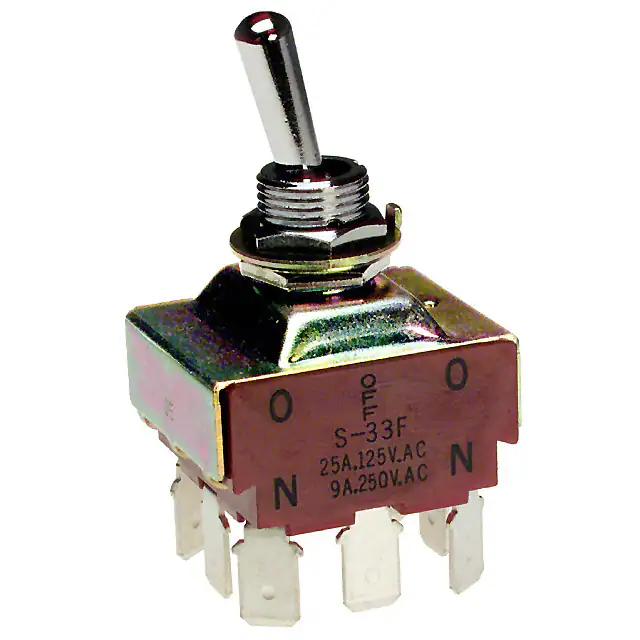

S33FSWITCH TOGGLE 3PDT 20A 125V |
59 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
645H/2SWITCH TOGGLE DPDT 10A 250V |
43 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | On-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|

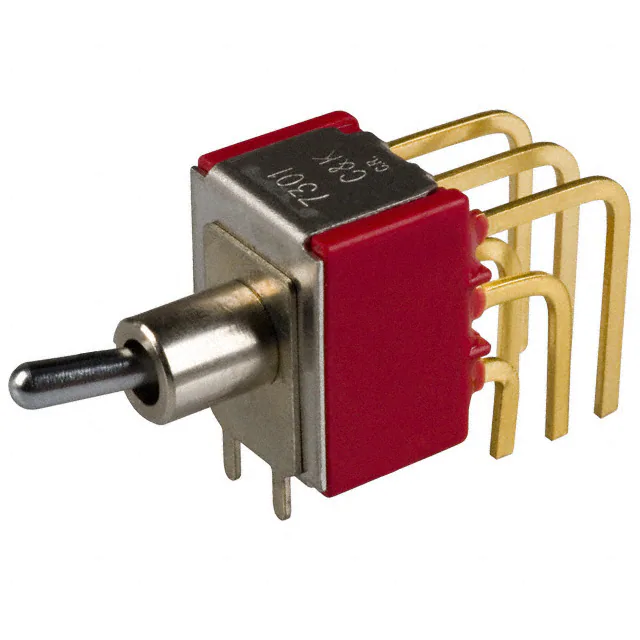

7301MD9ABESWITCH TOGGLE 3PDT 0.4VA 20V |
58 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S38SWITCH TOGGLE 3PDT 15A 125V |
67 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
.jpg)
|
S45SWITCH TOGGLE 4PDT 15A 125V |
64 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | On-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|

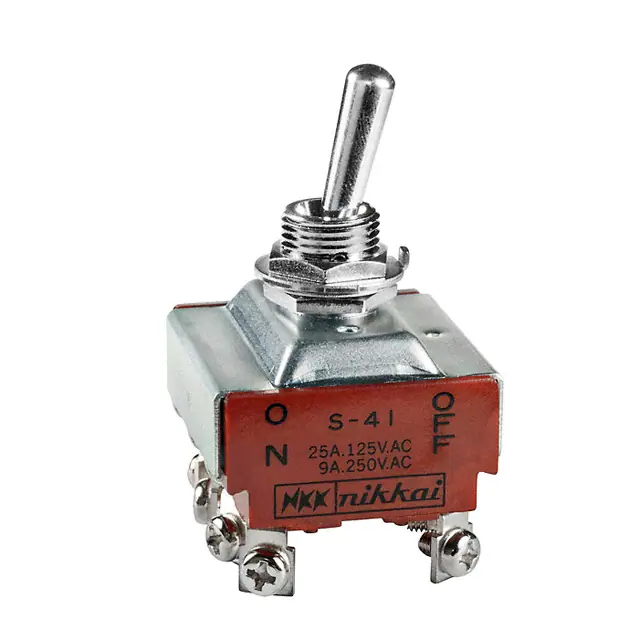

S41TSWITCH TOGGLE 4PST 20A 125V |
41 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
MTL206PSWITCH TOGGLE DPDT 6A 125V |
57 |
|
Datasheet |
MTL Green | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Locking Lever | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|

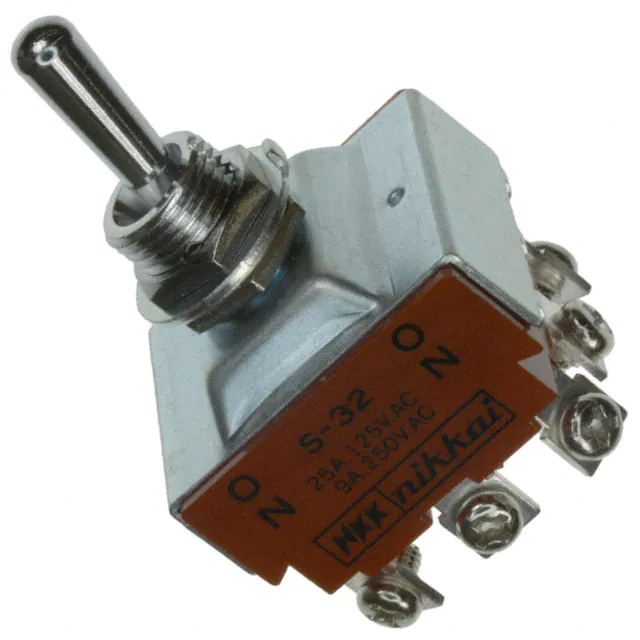

S32TSWITCH TOGGLE 3PDT 20A 125V |
58 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
31NT91-2SWITCH TOGGLE SPST 15A 125V |
54 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
55065-03SWITCH TOGGLE DPDT 25A 12V |
50 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 25A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
CT31001N000SWITCH TOGGLE SPST 10A 125V |
83 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|

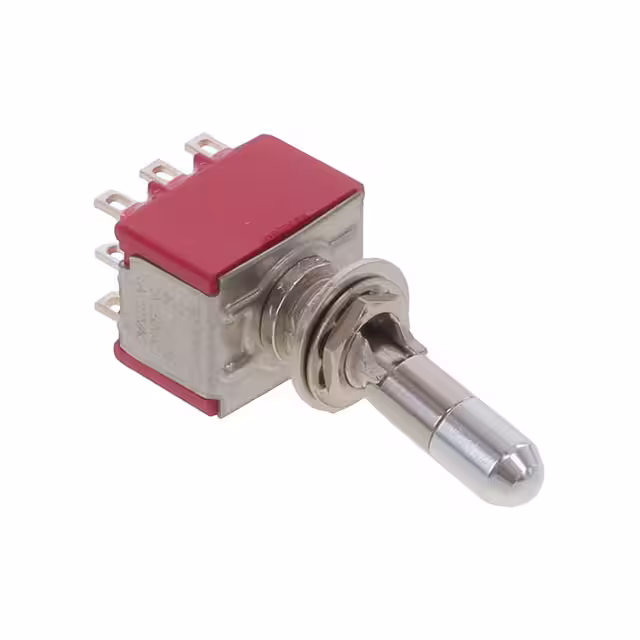

7301K2ZQESWITCH TOGGLE 3PDT 5A 120V |
80 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
55065-02SWITCH TOGGLE DPDT 15A 24V |
75 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Standard Round | 38.10mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
