Stepper Motors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QSH5718-51-28-101STEP MOTOR HYBRID BIPOLAR 2.3V Analog Devices Inc./Maxim Integrated |
0 |
|
Datasheet |
QMot QSH5718 | Box | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200.0 | 1.8° | ±5% | 143.05 / 1010 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.83 Ohms | Flatted Shaft |
|
QSH6018-65-28-210STEP MOTOR HYBRID BIPOLAR 3.36V Analog Devices Inc./Maxim Integrated |
0 |
|
Datasheet |
QMot QSH6018 | Box | Active | Hybrid | Bipolar | 3.36VDC | 2.8 A | 200.0 | 1.8° | ±5% | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.2 Ohms | Flatted Shaft |
|
PD28-3-1021-TMCLSTEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
1 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 700 mA | 200.0 | 1.8° | - | 17 / 120 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|
PD42-3-1141STEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
0 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 69.39 / 490 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | - | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
|

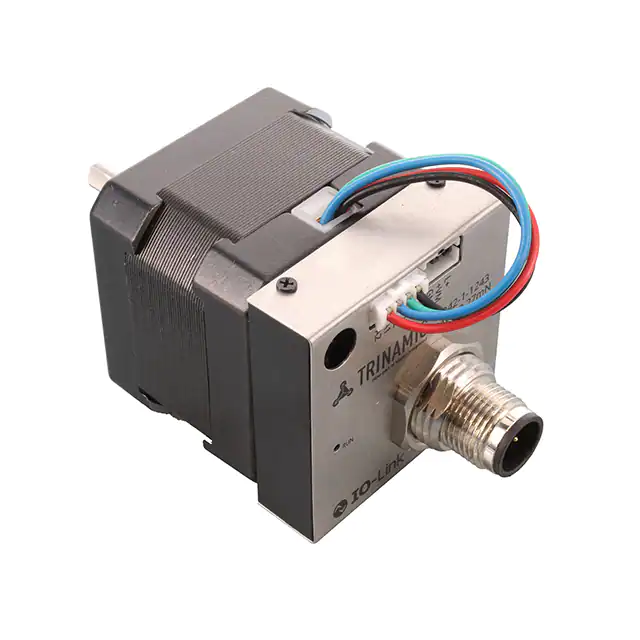

PD42-1-1243-IOLINKPANDRIVE NEMA17, 28V, 0.27NM Analog Devices Inc./Maxim Integrated |
0 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | - | 24VDC | 1 A | - | 1.8° | ±5% | 49.56 / 350 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | - | 4.5 Ohms | - |
|
PD42-1-1370-TMCLPANDRIVE NEMA17, 24V, 0.22NM Analog Devices Inc./Maxim Integrated |
0 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 2VDC | 2 A | 200.0 | 1.8° | ±5% | 31.16 / 220 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 1 Ohms | Integrated Controller, Flatted Shaft |
|
PD42-3-1240-TMCLPANDRIVE NEMA17, 24V, 0.44NM Analog Devices Inc./Maxim Integrated |
0 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 62.31 / 440 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.4 Ohms | Integrated Controller, Flatted Shaft |
|

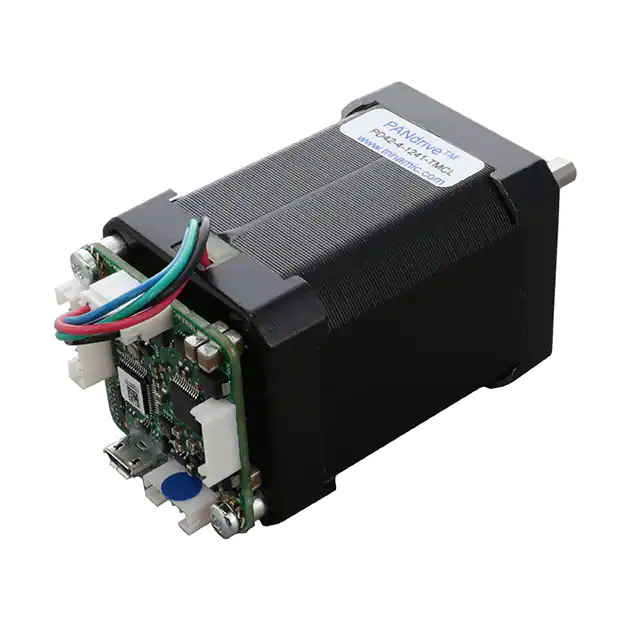

PD42-4-1241-TMCLPANDRIVE NEMA17, 24V, 0.8NM Analog Devices Inc./Maxim Integrated |
1 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 3.3VDC | 3 A | 200.0 | 1.8° | ±5% | 113.30 / 800 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.1 Ohms | Integrated Controller, Flatted Shaft |
|
|
PD42-4-1240-TMCLPANDRIVE NEMA17, 24V, 0.7NM Analog Devices Inc./Maxim Integrated |
0 |
|
Datasheet |
PANdrive™ | Bulk | Active | Hybrid | Bipolar | 24VDC | 2 A | 200.0 | 1.8° | ±5% | 99.1 / 700 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 2.3 Ohms | Integrated Controller, Flatted Shaft |
|

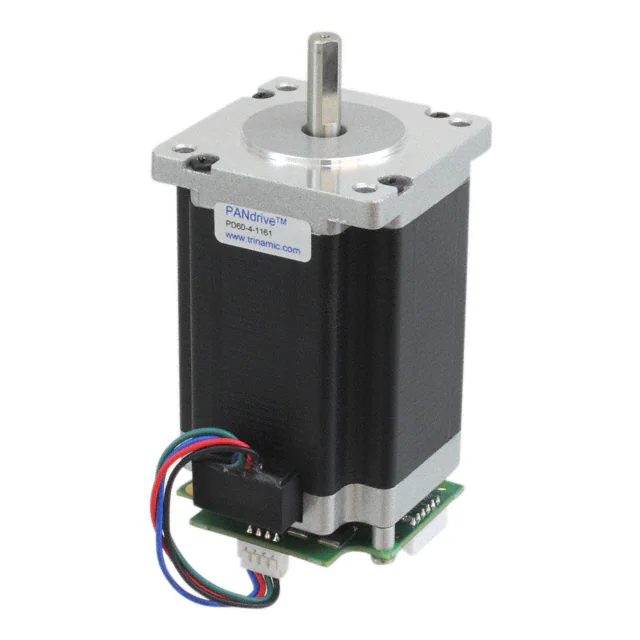

PD60-4-1161STEPPER MOTOR HYBRID BIPOLAR 24V Analog Devices Inc./Maxim Integrated |
0 |
|
Datasheet |
PANdrive™ | Case | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 200.0 | 1.8° | - | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft |
