Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

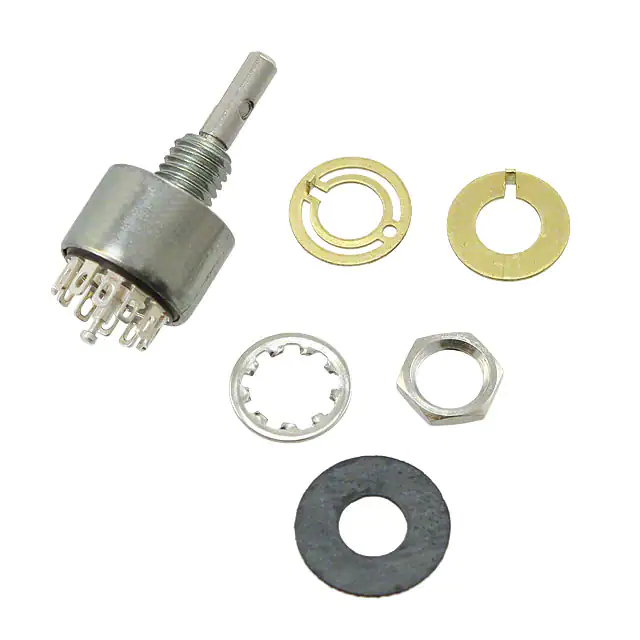

MG00L1NZQFSWITCH ROTARY 12POS 250MA 125V |
0 |
|
Datasheet |
M | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 15.88mm |
|
A40315RNZGSWITCH ROTARY 3POS 2.5A 125V |
0 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
A10003RNCBKSWITCH ROTARY 12POS 0.4VA 20V |
0 |
|
Datasheet |
A | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
MA06L1NCGFSWITCH ROTARY 6POS 250MA 125V |
0 |
|
Datasheet |
M | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
|
MC03S6NCQDSWITCH ROTARY 3POS 250MA 125V |
0 |
|
Datasheet |
M | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Round (3.17mm Dia), Slotted | 13.59mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
|
A30415RSCGSWITCH ROTARY 4POS 2.5A 125V |
0 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 3 | 3P4T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
MA02L1NZQDSWITCH ROTARY 2POS 250MA 125V |
0 |
|
Datasheet |
M | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
|
MB04L1NCQFSWITCH ROTARY 4POS 250MA 125V |
0 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
|
56BDP30-01-1-AJNSWITCH ROTARY 2-12POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56A30-01-1-03SSWITCH ROTARY 3POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A30-01-1-06SSWITCH ROTARY 6POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A30-01-1-12S-CSWITCH ROTARY 12POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56BDP36-01-1-AJSSWITCH ROTARY 2-10POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56BP30-01-1-03NSWITCH ROTARY 3POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56BP30-01-1-10NSWITCH ROTARY 10POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56BP30-01-1-12N-CSWITCH ROTARY 12POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56BP30-01-1-12N-FSWITCH ROTARY 12POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P30-01-1-03NSWITCH ROTARY 3POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P30-01-1-05NSWITCH ROTARY 5POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
56P30-01-1-10NSWITCH ROTARY 10POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
