Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A10205RNCBSWITCH ROTARY 2POS 0.4VA 20V |
0 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
KC13A13.001NPFSWITCH ROTARY 3POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC25A30.001NPFSWITCH ROTARY 5POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC26A38.001NPFSWITCH ROTARY 6POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 38.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC26A7.001SLFSWITCH ROTARY 6POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Shorting (MBB) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 7.00mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 18.50mm |
|
|
KC26A9.501SPFSWITCH ROTARY 6POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Shorting (MBB) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC26B30.002NPFSWITCH ROTARY 6POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 30.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC34A30.001NLFSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 18.50mm |
|
|
KC34A7.001SLFSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Shorting (MBB) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 7.00mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 18.50mm |
|
|
KC34B10.001NPFSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 10.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

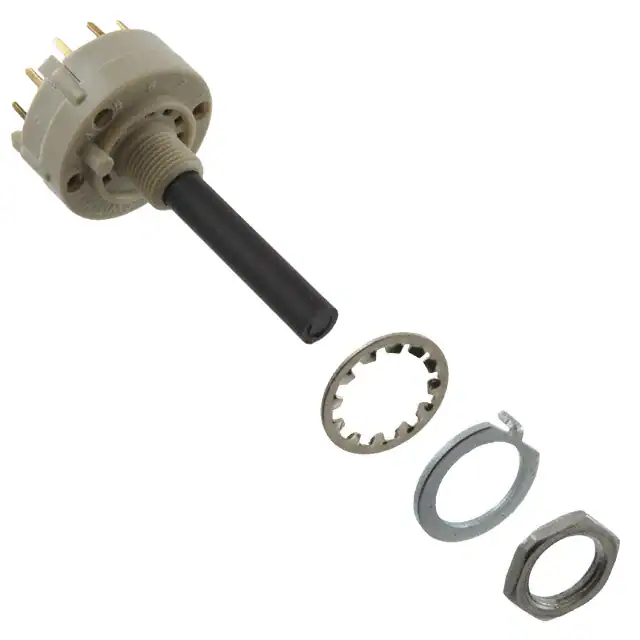

KC34B30.001NPFSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 30.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC43A9.501SLFSWITCH ROTARY 3POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Shorting (MBB) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 18.50mm |
|
|
KC52A9.501NLFSWITCH ROTARY 12POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 18.50mm |
|
|
KC34A7.001NPFSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 7.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC43A30.001NLFSWITCH ROTARY 3POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 18.50mm |
|
|
KC52B30.001NPFSWITCH ROTARY 12POS 350MA 125V |
0 |
|
Datasheet |
KC | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 30.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC33B30.002NLFSWITCH ROTARY 3POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 30.00mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.70mm |
|
|
KC10A7.001NPFSWITCH ROTARY 12POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 7.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC26B30.002NLFSWITCH ROTARY 6POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 30.00mm | 30° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.70mm |
|
|
KC26A30.001NPFSWITCH ROTARY 6POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
