Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

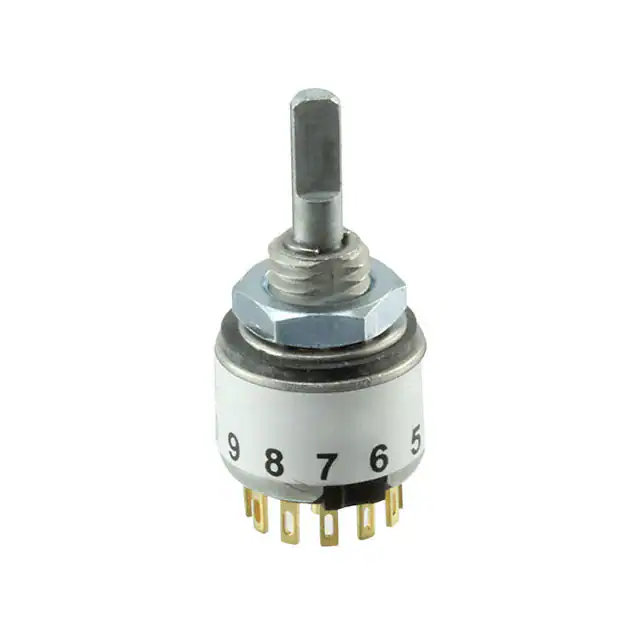

56SD30-01-2-AJNSWITCH ROTARY 2-6POS 200MA 115V |
276 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|

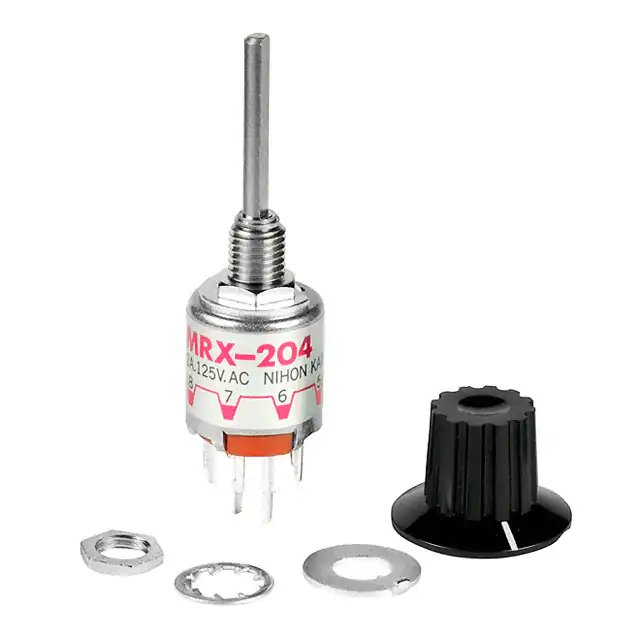

MRX204-ASWITCH ROTARY 2-4POS 2A 125V |
0 |
|
Datasheet |
MR | Box | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 13.00mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|

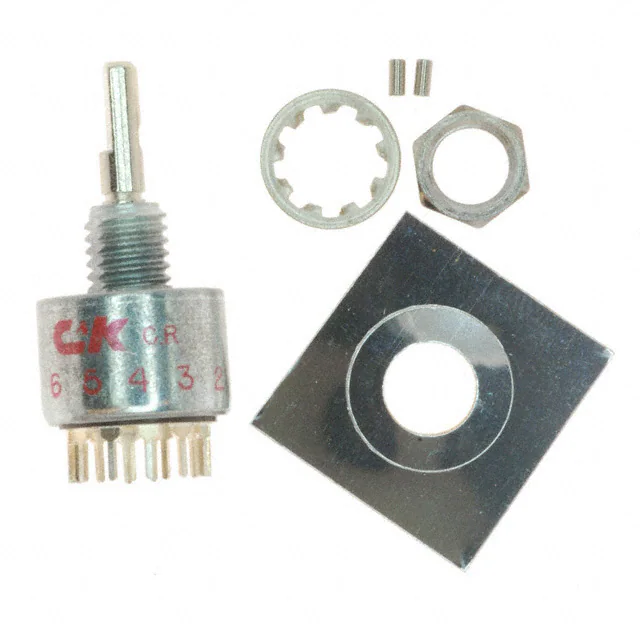

MD00L1NCQDSWITCH ROTARY 6POS 250MA 125V |
132 |
|
Datasheet |
M | Tray | Active | 6 | Continuous | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
MRAN112SWITCH ROTARY |
141 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Flatted (3.17mm Dia) | 10.00mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
50D90-01-1-AJNSWITCH ROTARY 2-4POS 150MA 115V |
140 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 90° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

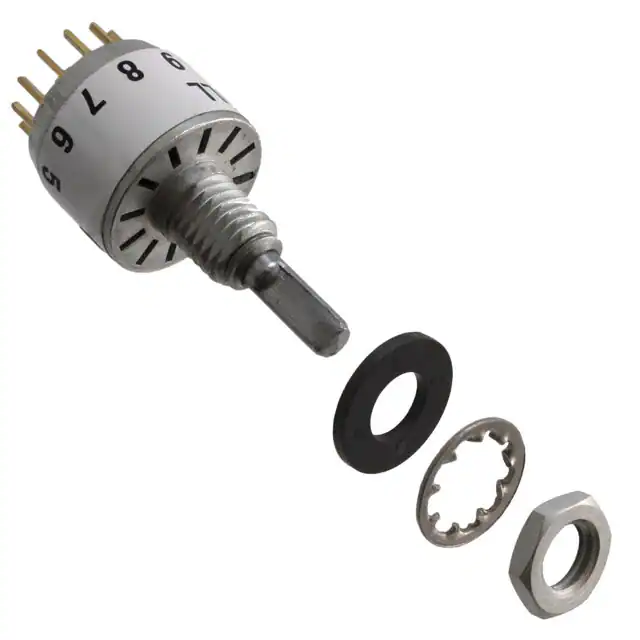

51DP30-01-1-AJNSWITCH ROTARY 2-12POS 150MA 115V |
382 |
|
Datasheet |
51 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
MRJE3404SWITCH ROTARY 4POS 0.4VA 20V |
279 |
|
Datasheet |
MRJ | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia), Slotted | 19.00mm | 30° | Nickel | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 8.13mm |
|
MC00S1NCQFSWITCH ROTARY 12POS 250MA 125V |
136 |
|
Datasheet |
M | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 16.51mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.22mm |
|
51A22-01-1-16NSWITCH ROTARY 16POS 150MA 115V |
108 |
|
Datasheet |
51 | Bulk | Active | 16 | Continuous | 1 | 1 | SP16T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

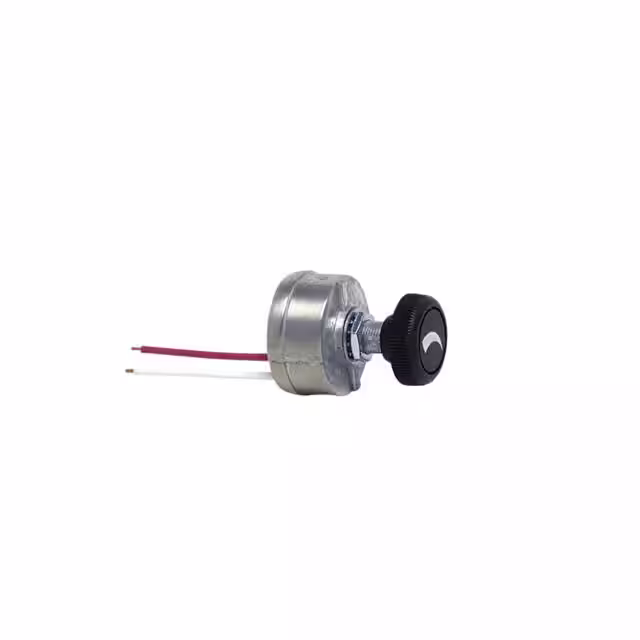

74601-01SWITCH ROTARY 7A 12V |
33 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | Not Specified | 7A (DC) | - | 12 V | Knob | - | - | - | - | Panel Mount | Wire Leads | - | 22.43mm |
|
77SP36-01-1-10N-FSWITCH ROTARY 10POS 50MA 115V |
448 |
|
Datasheet |
77 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Tin Oxide (AgSnO) | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 4.57mm |
|

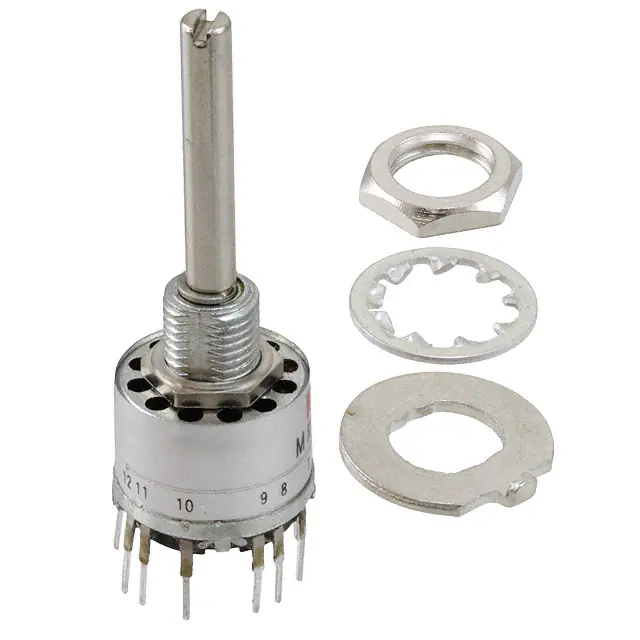

MRJ11204SWITCH ROTARY 2-12POS 0.4VA 20V |
440 |
|
Datasheet |
MRJ | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (3.17mm Dia), Slotted | 19.00mm | 30° | Nickel | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 11.20mm |
|

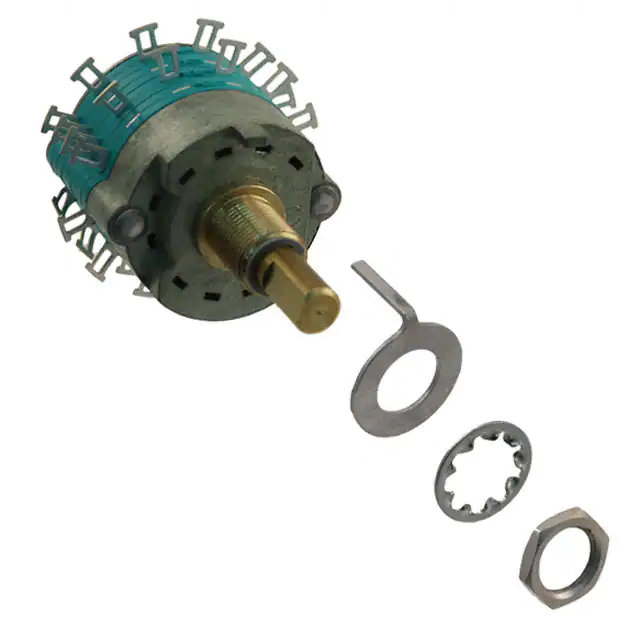

C4D0406N-ASWITCH ROTARY 2-6POS 300MA 125V |
76 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 27.33mm |
|
77SP36-01-2-05NSWITCH ROTARY 5POS 50MA 115V |
681 |
|
Datasheet |
77 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Tin Oxide (AgSnO) | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
77SPT36-01-2-04NSWITCH ROTARY 4POS 50MA 115V |
200 |
|
Datasheet |
77 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Tin Oxide (AgSnO) | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 4.57mm |
|

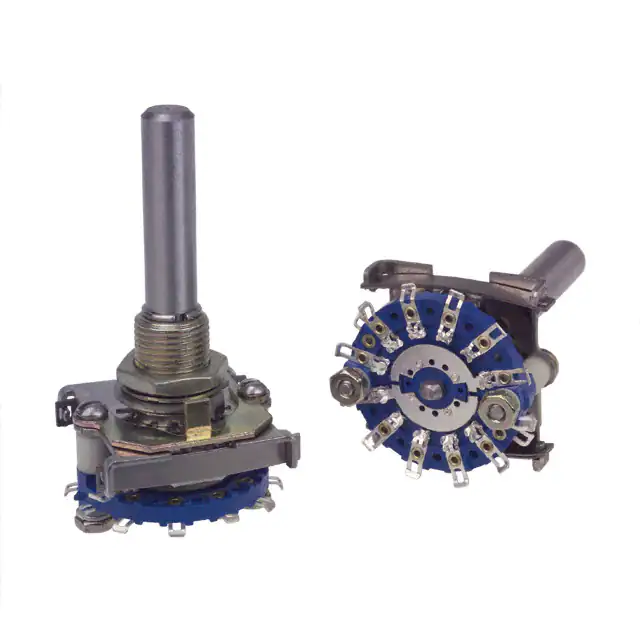

D2D0206NSWITCH ROTARY 2-6POS 250MA 115V |
69 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 11.99mm |
|

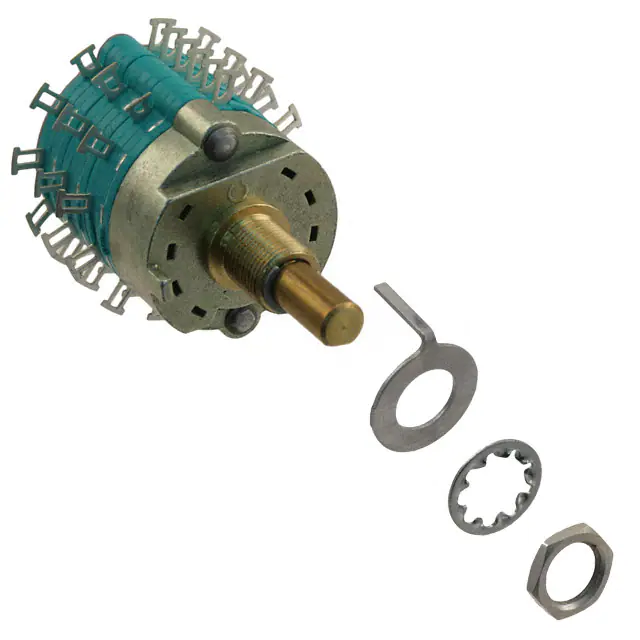

C4D0312N-ASWITCH ROTARY 2-12POS 300MA 125V |
61 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 34.54mm |
|

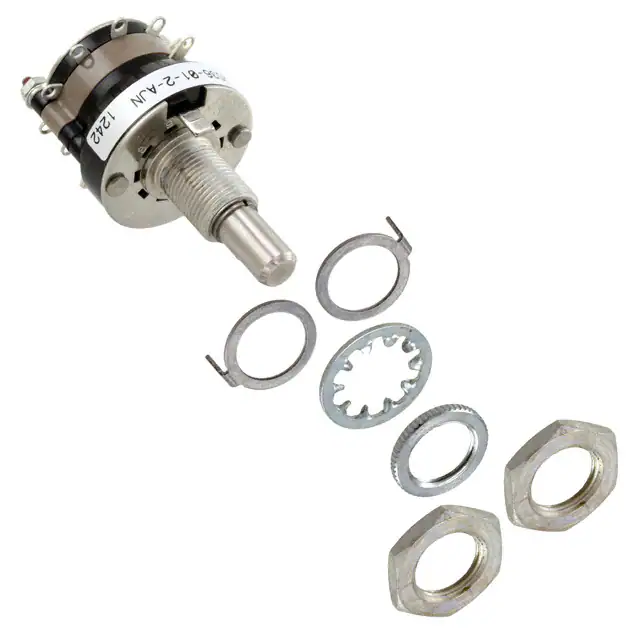

42D36-01-2-AJNSWITCH ROTARY 2-5POS 1A 115V |
70 |
|
Datasheet |
42 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|

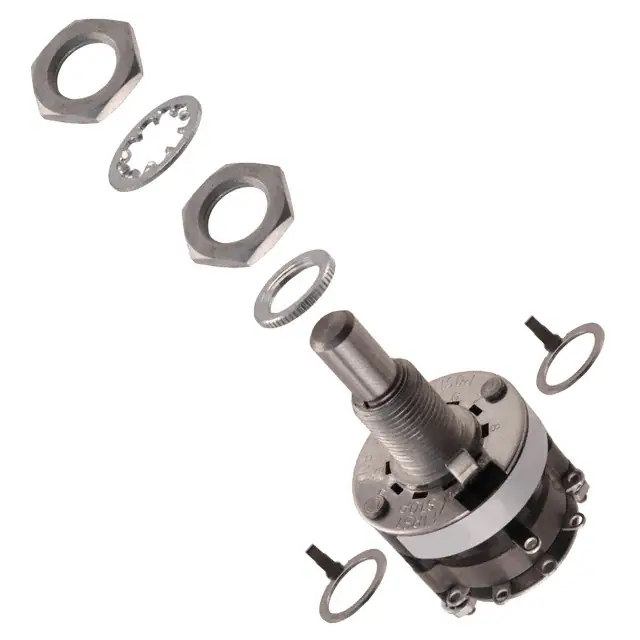

42D36-01-1-AJNSWITCH ROTARY 2-10POS 1A 115V |
117 |
|
Datasheet |
42 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|

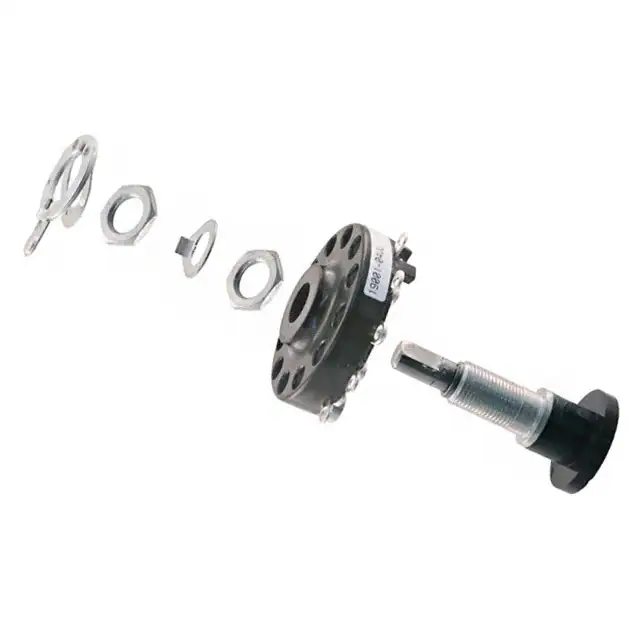

19001-04ULSWITCH ROTARY 4POS 15A 120V |
79 |
|
Datasheet |
19 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.13mm |
