Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KC34A01NPS42SHSWITCH ROTARY 4POS 350MA 125V |
0 |
|
Datasheet |
KC | Bulk | Obsolete | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 41.50mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

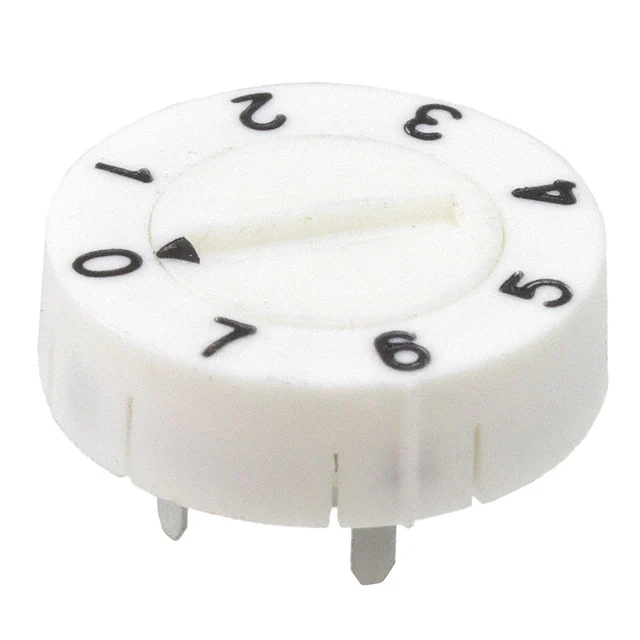

435174-1SWITCH ROTARY 8POS 125MA 115V |
0 |
|
Datasheet |
6000 | Bulk | Active | 8 | Continuous | 1 | - | Octal | Non-Shorting (BBM) | 125mA (AC) | 115 V | - | Screwdriver Slot | Flush | 45° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|
|
57M22-05-1-16S-CSWITCH ROTARY 16POS 250MA 115V |
0 |
|
Datasheet |
57 | Bulk | Active | 16 | Fixed | 5 | 1 | SP16T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 22.5° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 57.10mm |
|

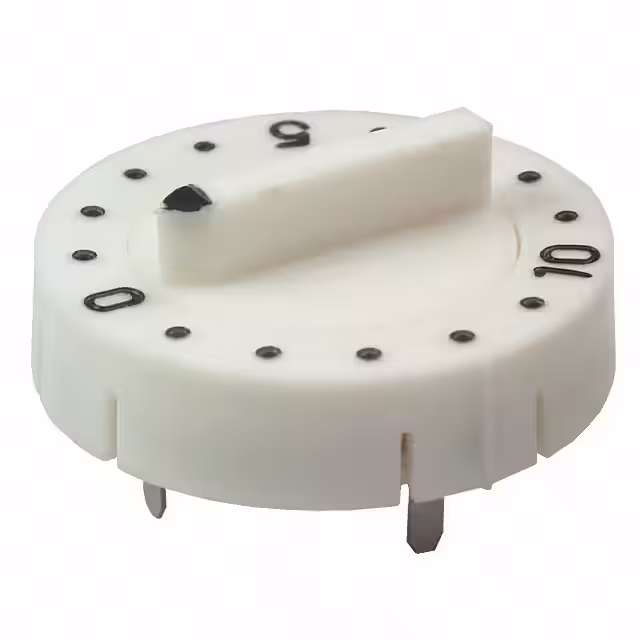

1-435167-1SWITCH ROTARY 16POS |
0 |
|
Datasheet |
6000 | Tray | Active | 16 | Continuous | 1 | - | Hexadecimal | Non-Shorting (BBM) | - | - | - | Knob | 3.81mm | 15° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|
|
44MGS45-01-1-08N-FSWITCH ROTARY 8POS 5A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
54D30-02-1-AJNSWITCH ROTARY 2-12POS 1A 115V |
0 |
|
Datasheet |
54 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 33.53mm |
|
|
R10207RR03QSWITCH ROTARY 2POS 5A 125V |
0 |
|
Datasheet |
R | Tube | Obsolete | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Panel Mount | Solder Lug | - | 14.61mm |
|
D2C0111NSWITCH ROTARY 2-11POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (3.17mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
RTAP30112SSD25SSWITCH ROTARY 12POS 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | 30° | Brass | Silver | Through Hole | PC Pin | - | 12.60mm |
|

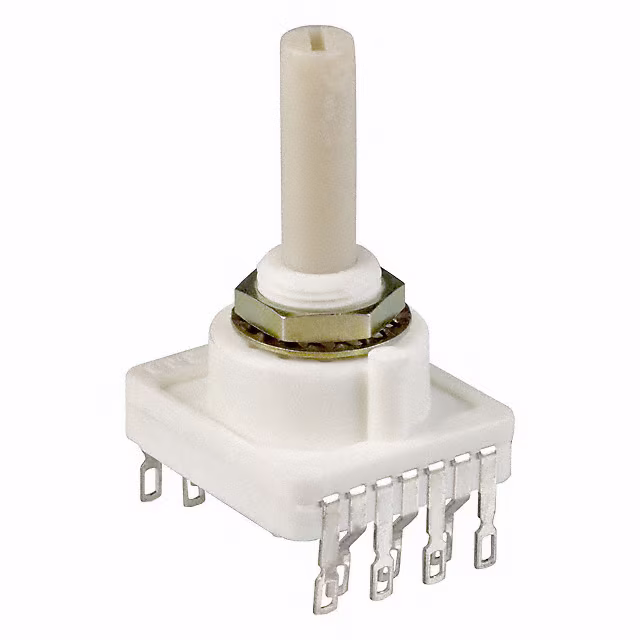

RTAC30112B12AD25SSWITCH ROTARY 12POS 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.70mm |
|
RTAC30206B06AD25SSWITCH ROTARY 6POS 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.70mm |
|
|
RTAC30206B06AD50SSWITCH ROTARY 6POS 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 50.00mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.70mm |
|
RTAC30112B12AD50SSWITCH ROTARY 12POS 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 50.00mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.70mm |
|
RTAC30112SAD25SSWITCH ROTARY 12POS 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.70mm |
|
RTAP36205B05SD25SSWITCH ROTARY 5POS 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | 36° | Brass | Silver | Through Hole | PC Pin | - | 12.60mm |
|

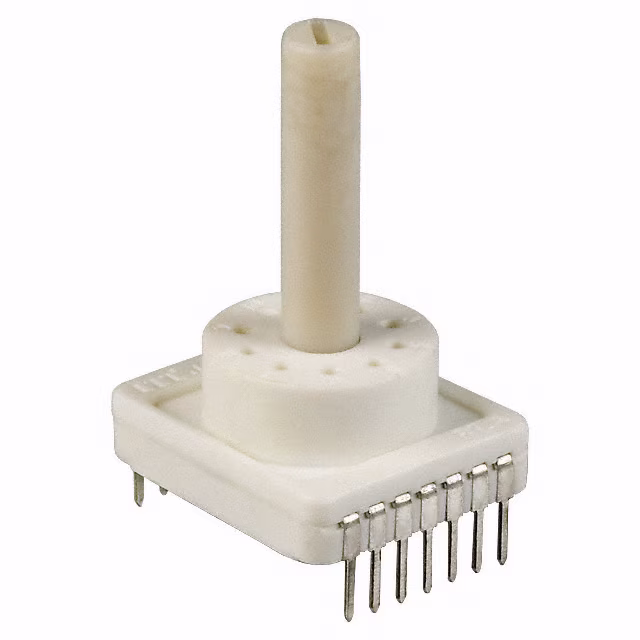

RTAP225BSSD25SSWITCH ROTARY 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | - | Continuous | 1 | - | BCD | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | 22.5° | Brass | Silver | Through Hole | PC Pin | - | 12.60mm |
|
|
RTAP30BCSSD25SSWITCH ROTARY 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | - | Continuous | 1 | - | BCD with Complement | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | 30° | Brass | Silver | Through Hole | PC Pin | - | 12.60mm |
|

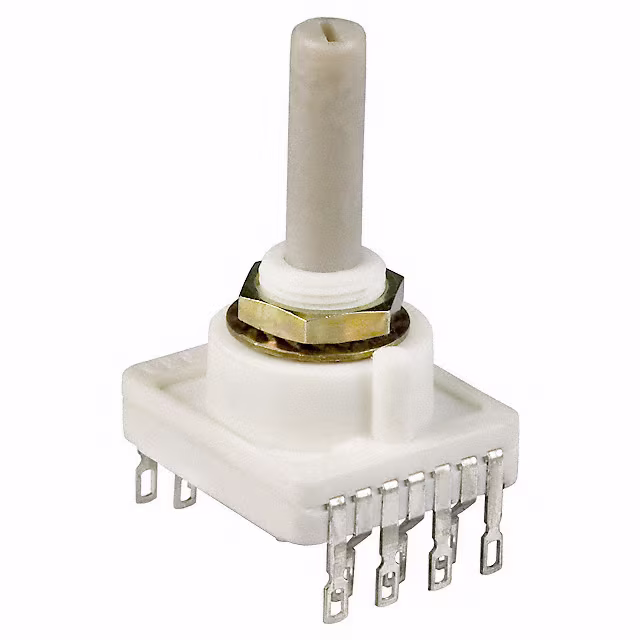

RTAC225BSAD25SSWITCH ROTARY 150MA 60V |
0 |
|
Datasheet |
RTA | Bulk | Obsolete | - | Continuous | 1 | - | BCD | Non-Shorting (BBM) | 150mA (AC/DC) | 60 V | 60 V | Round (5.9mm Dia) | 25.00mm | 22.5° | Brass | Silver | Panel Mount | Solder Lug | - | 18.70mm |
|
MIL1106B06NSD25SWITCH ROTARY 6POS 20MA 50V |
0 |
|
Datasheet |
MIL | - | Obsolete | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | 30° | Brass | Gold | Through Hole, Right Angle | PC Pin | Sealed - Fully | 17.78mm |
|
|
MIL1112B12NSD25SWITCH ROTARY 12POS 20MA 50V |
0 |
|
Datasheet |
MIL | - | Obsolete | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 20mA (AC/DC) | 50 V | 50 V | Round (4mm Dia) | 25.00mm | 30° | Brass | Gold | Through Hole, Right Angle | PC Pin | Sealed - Fully | 17.78mm |
