Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D7G0405SSWITCH ROTARY 2-5POS 1A 115V |
0 |
|
Datasheet |
D7 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Shorting (MBB) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 43.74mm |
|
|
44H60-02-1-03NSWITCH ROTARY 3POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | 2 | 1 | SP3T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
09A45-03-1-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 4 | Fixed | 3 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 38.00mm |
|
|
C1D0412N-VASWITCH ROTARY 2-12POS 100MA 125V |
0 |
|
Datasheet |
C1 | Bulk | Active | 2 ~ 12 | Adjustable | 4 | 1 | SP12T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 35.84mm |
|
|
44M30-03-1-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 3 | 1 | SPDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
C4D0512S-ASWITCH ROTARY 2-12POS 300MA 125V |
0 |
|
Datasheet |
C4 | Bulk | Active | 2 ~ 12 | Adjustable | 5 | 1 | SP12T | Shorting (MBB) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 48.97mm |
|
|
44A30-04-3-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 4 | 3 | 3PDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 52.40mm |
|
|
09S90-02-1-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 2 | 1 | SP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 90° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 31.19mm |
|
|
09S45-02B08NSWITCH ROTARY 8POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 8 | Fixed | 2 | 1 | SP8T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 31.19mm |
|
|
C7D0324N-CSWITCH ROTARY 24POS 500MA 125V |
0 |
|
Datasheet |
C7 | Bulk | Active | 24 | Continuous | 3 | 1 | SP24T | Non-Shorting (BBM) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 44.38mm |
|
|
C7D0312S-30CSWITCH ROTARY 12POS 500MA 125V |
0 |
|
Datasheet |
C7 | Bulk | Active | 12 | Continuous | 3 | 1 | SP12T | Shorting (MBB) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 44.38mm |
|

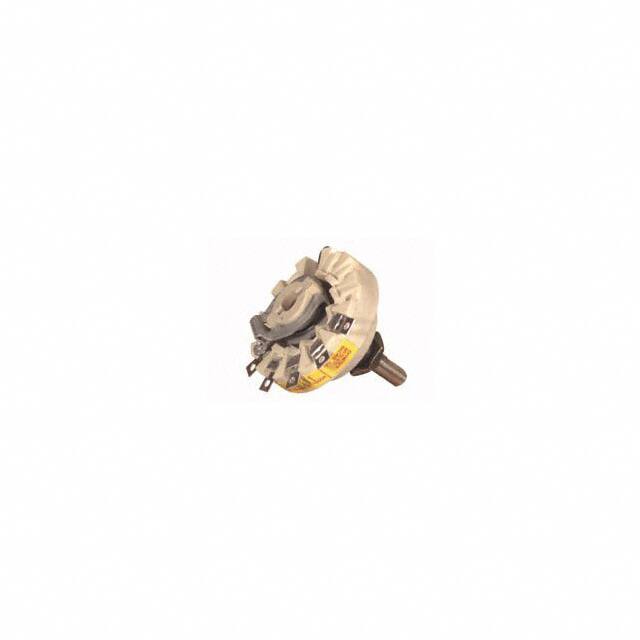

111-10SWITCH ROTARY 10POS 15A 125V |
0 |
|
Datasheet |
111 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
44HS45-01-1-04SSWITCH ROTARY 4POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Shorting (MBB) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
083174-1-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
08 | Bulk | Active | 2 | Fixed | 4 | 1 | SPDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 44.81mm |
|
|
44MG45-01B08SSWITCH ROTARY 8POS 5A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 8 | Fixed | - | 1 | SP8T | Shorting (MBB) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | - |
|
|
093101-6-02SSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 2 | Fixed | 1 | 6 | 6PDT | Shorting (MBB) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
44HS45-01-2-04NSWITCH ROTARY 4POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
09A30-03-2-06NSWITCH ROTARY 6POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 6 | Fixed | 3 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 38.00mm |
|
|
09S30-04-1-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 3 | Fixed | 4 | 1 | SP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 44.81mm |
|
|
UCSQO-234-YB-C2004SWITCH ROTARY 3POS 10A 110V |
0 |
|
- |
UCSQO | Bulk | Active | 3 | Fixed | 2 | 1 | SPDT | Not Specified | 10A (AC), 8A (DC) | 110 V | 24 V | Lever | 25.00mm | 45° | - | - | Panel Mount | Screw Terminal | - | 50.00mm |
