Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44MS60-01-3-02NSWITCH ROTARY 2POS 5A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | 3 | 3PDT | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
44A90-05-1-03NSWITCH ROTARY 3POS 5A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 3 | Fixed | 5 | 1 | SP3T | Non-Shorting (BBM) | 5A (AC), 2A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 90° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.19mm |
|
|
711-3ESWITCH ROTARY 3POS 7A 125V |
0 |
|
Datasheet |
711 | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 7A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | 20.60mm |
|
|
44HS30-02-2-03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | 2 | 2 | DP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 34.82mm |
|
|
08A36-04-1-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
08 | Bulk | Active | 4 | Fixed | 4 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 44.81mm |
|
|
44H45-01-3-02NSWITCH ROTARY 2POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 2 | Fixed | 1 | 3 | 3PDT | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
44H30-02-2-05NSWITCH ROTARY 5POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 5 | Fixed | 2 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
44H90-01-2-02NSWITCH ROTARY 2POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 5A (AC), 2A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 90° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
44A30-05-1-06SSWITCH ROTARY 6POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 5 | 1 | SP6T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.19mm |
|
|
44HS45-01-3-02NSWITCH ROTARY 2POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 2 | Fixed | 1 | 3 | 3PDT | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|

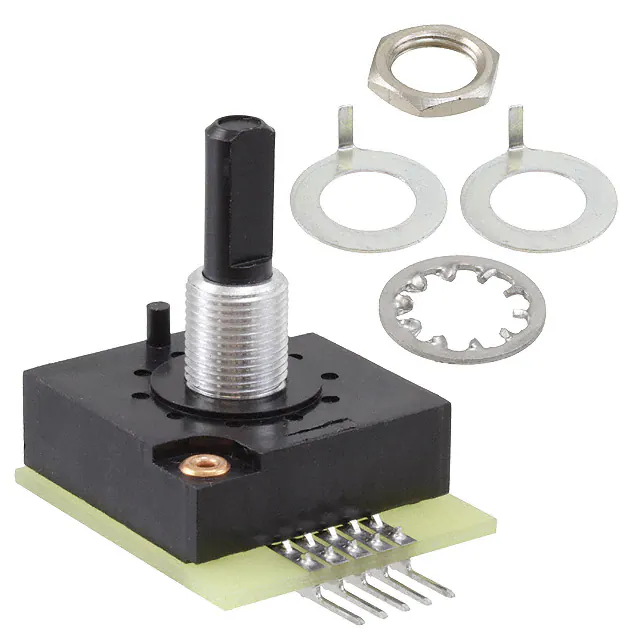

435984-1SWITCH ROTARY 10POS 125MA 115V |
0 |
|
Datasheet |
3100 | Bulk | Obsolete | 10 | Continuous | 1 | - | BCD | Not Specified | 125mA (AC) | 115 V | - | Flatted (6.35mm Dia) | 14.88mm | 36° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | - | 13.34mm |
|
|
093101-5-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 2 | Fixed | 1 | 5 | 5PDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
44M45-02-1-07NSWITCH ROTARY 7POS 5A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 7 | Fixed | 2 | 1 | SP7T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
44A30-03-2-06NSWITCH ROTARY 6POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 3 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
44D30-03-2-AJNSWITCH ROTARY 2-6POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 6 | Adjustable | 3 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
44D30-03-2-AJSSWITCH ROTARY 2-6POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 6 | Adjustable | 3 | 2 | DP6T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
09M30-02-1-12NSWITCH ROTARY 12POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 12 | Continuous | 2 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
|
|
C7D0223SSWITCH ROTARY 23POS 500MA 125V |
0 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 2 | 1 | SP23T | Shorting (MBB) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 32.49mm |
|
|
111-6SWITCH ROTARY 6POS 15A 125V |
0 |
|
Datasheet |
111 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
44M30-03-1-07NSWITCH ROTARY 7POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 7 | Fixed | 3 | 1 | SP7T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
