Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09S45-01-1-06SSWITCH ROTARY 6POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 24.38mm |
|
|
42M36-02-1-09NSWITCH ROTARY 9POS 1A 115V |
0 |
|
- |
42 | Bulk | Active | 9 | Fixed | 2 | 1 | SP9T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
09M30-02-1-05SSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 5 | Fixed | 2 | 1 | SP5T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
|
|
093101-4-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
44MS60-01-1-05NSWITCH ROTARY 5POS 5A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
09A30-03-1-10NSWITCH ROTARY 10POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 10 | Fixed | 3 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 38.00mm |
|
|
09A90-02-1-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 2 | Fixed | 2 | 1 | SPDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 90° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
|

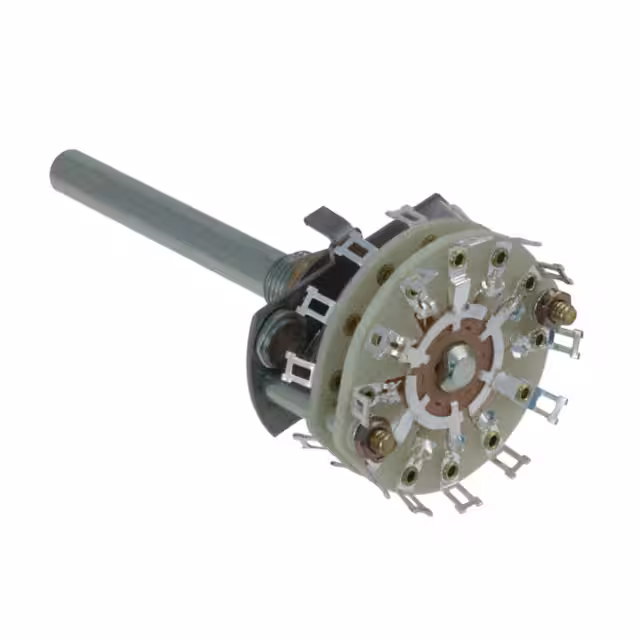

E3G0603N-3SWITCH ROTARY 3POS 500MA 115V |
0 |
|
Datasheet |
E3 | Bulk | Active | 3 | Fixed | 2 | 3 | 3P3T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | Spring Return | 11.96mm |
|
|
D2D0212SSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Shorting (MBB) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.34mm |
|
|
D4G0605NSWITCH ROTARY 2-5POS 500MA 115V |
0 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 2 | DP5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 42.82mm |
|
|
D2D0605SSWITCH ROTARY 2-5POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 3 | 3P5T | Shorting (MBB) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.34mm |
|
|
E3G0603S-3SWITCH ROTARY 3POS 500MA 115V |
0 |
|
Datasheet |
E3 | Bulk | Active | 3 | Fixed | 2 | 3 | 3P3T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | Spring Return | 11.96mm |
|
|
44MS30-02-1-03SSWITCH ROTARY 3POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
08A36-03-1-06SSWITCH ROTARY 6POS 250MA 115V |
0 |
|
Datasheet |
08 | Bulk | Active | 6 | Fixed | 3 | 1 | SP6T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 38.00mm |
|
|
05001-09NSWITCH ROTARY 9POS 1A 115V |
0 |
|
Datasheet |
5000 | Bulk | Active | 9 | Fixed | 1 | 1 | SP9T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - | 12.45mm |
|
|
083172-2-04SSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
08 | Bulk | Active | 4 | Fixed | 2 | 2 | DP4T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
|
|
42A36-05-1-03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 5 | 1 | SP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.19mm |
|
|
42M36-02-2-03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
- |
42 | Bulk | Active | 3 | Fixed | 2 | 2 | DP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
44H45-01-1-05NSWITCH ROTARY 5POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
093102-2-02SSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 2 | Fixed | 2 | 2 | DPDT | Shorting (MBB) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
