Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2D0112SSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Shorting (MBB) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 11.99mm |
|
|
D4G0405SSWITCH ROTARY 2-5POS 500MA 115V |
0 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 28.55mm |
|
|
44M30-01-1-11NSWITCH ROTARY 11POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
423531-1-03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
Datasheet |
42 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
71CF30-1BP-1BYSWITCH ROTARY 5/12POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 5, 12 | Continuous, Fixed | 1 | 1, 2 | SP12T, DP5T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71CF30-1BY-1BYSWITCH ROTARY 11/12P 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 11, 12 | Continuous | 1 | 1 | SP11T, SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
44S30-01-1-07NSWITCH ROTARY 7POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
D2D0305SSWITCH ROTARY 2-5POS 250MA 115V |
0 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 3 | 3P5T | Shorting (MBB) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 11.99mm |
|
|
D4G0603NSWITCH ROTARY 2-3POS 500MA 115V |
0 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 3 | Adjustable | 2 | 3 | 3P3T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 28.55mm |
|
|
D4G0211SSWITCH ROTARY 2-11POS 500MA 115V |
0 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 28.55mm |
|
|
093101-1-05NSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
71BT36-04-1-06NSWITCH ROTARY 6POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 4 | 1 | SP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | Process Sealed | 38.86mm |
|

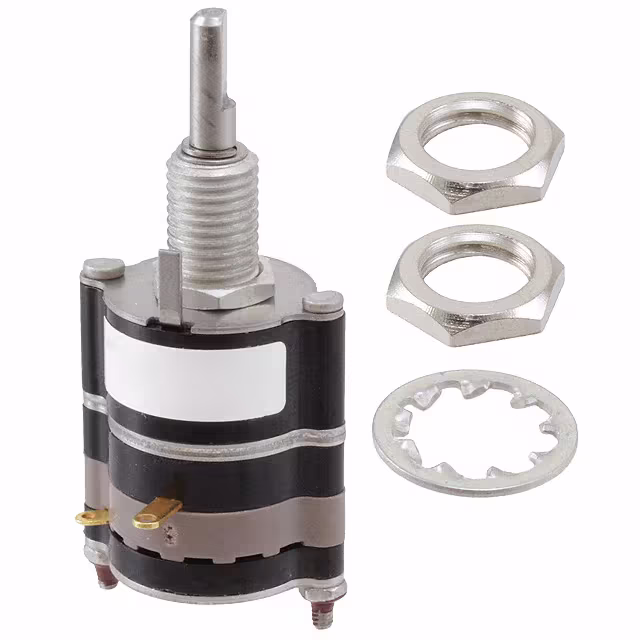

093101-1-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
093101-1-04SSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
09 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
083171-1-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Datasheet |
08 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
44A30-02-1-07NSWITCH ROTARY 7POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 7 | Fixed | 2 | 1 | SP7T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
443461-2-05NSWITCH ROTARY 5POS 1A 115V |
0 |
|
Datasheet |
44 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
71MBS30-04D04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 4 | Fixed | 4 | 3 | 3P4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 35.94mm |
|
|
71AD30-04-4-AJNSWITCH ROTARY 2-3POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 3 | Adjustable | 4 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 35.94mm |
|
|
71BD30-04-4-AJNSWITCH ROTARY 2-3POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 3 | Adjustable | 4 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 35.94mm |
