Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71B30-03-2-06SSWITCH ROTARY 6POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 3 | 2 | DP6T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71B36-03-2-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 3 | Fixed | 3 | 2 | DP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71B36-03-2-05NSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 5 | Fixed | 3 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71B36-03-2-05SSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 5 | Fixed | 3 | 2 | DP5T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
50KMP36-01B02NSWITCH ROTARY 2POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
50KMP36-01B02SSWITCH ROTARY 2POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
50KMP36-01B04NSWITCH ROTARY 4POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
50KMP36-01B05NSWITCH ROTARY 5POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
50KMP36-01B06NSWITCH ROTARY 6POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 13.64mm |
|
|
77P36-01-2-02NSWITCH ROTARY 2POS 50MA 115V |
0 |
|
Datasheet |
77 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Tin Oxide (AgSnO) | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
|
51CD30-01-2-AJSSWITCH ROTARY 2-6POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
71BD30-02-3-AJNSWITCH ROTARY 2-4POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 4 | Adjustable | 2 | 3 | 3P4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
|
71AD30-03-1-AJSSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
51MP30-01-3-04SSWITCH ROTARY 4POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
|
71AD30-03-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|

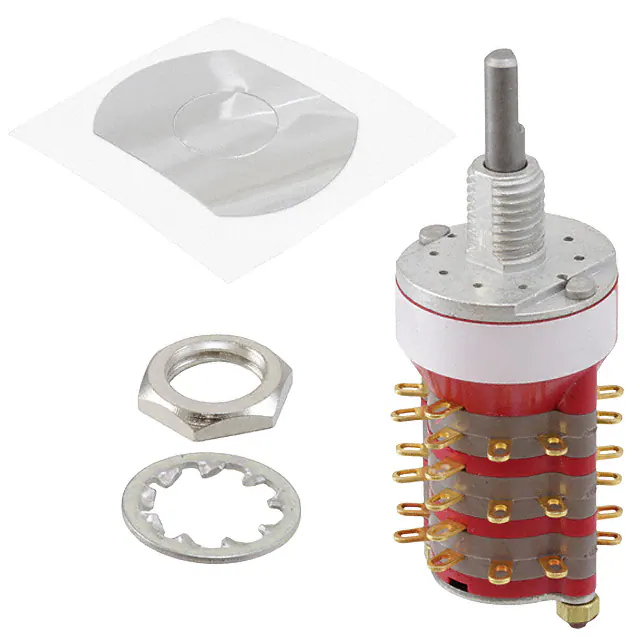

71AD36-03-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 3 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71BD30-03-1-AJSSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 3 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71BD36-03-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 3 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
71BD36-03-1-AJSSWITCH ROTARY 2-10POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 3 | 1 | SP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 30.40mm |
|
|
51K30-01-2-03SSWITCH ROTARY 3POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
