Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71BD30-01-1-AJSSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | - | 1 | 1 | SP12T | - | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | - | 30° | - | - | Panel Mount | Solder Lug | - | - |
|
|
71BD36-01-1-AJSSWITCH ROTARY 2-10POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|

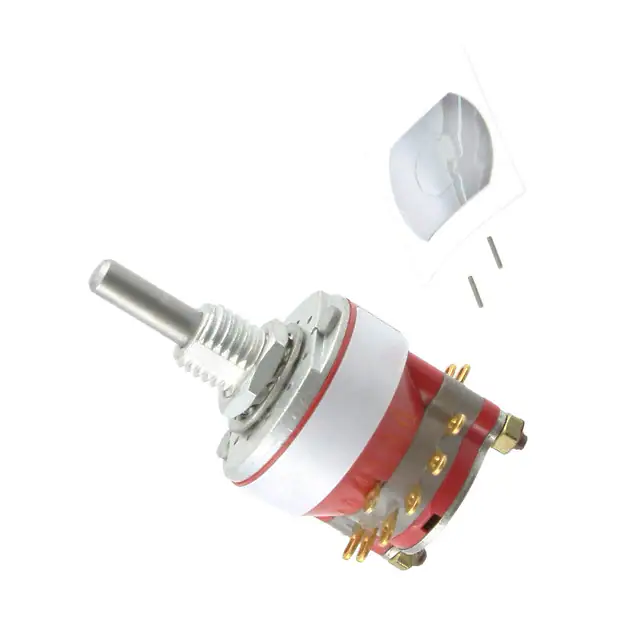

71AD30-01-1-AJSSWITCH ROTARY 2-12POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
50A36-01-2-02SSWITCH ROTARY 2POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
56SP36S-01C03NSWITCH ROTARY 3POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|
|
MRK112-CCSWITCH ROTARY 2-12POS 0.4VA 28V |
0 |
|
Datasheet |
MR | Tray | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 15.80mm | 30° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 10.10mm |
|
|
71MB30-01-1-03SSWITCH ROTARY 3POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71MB36-01-1-05NSWITCH ROTARY 5POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Round (4mm Dia) | 17.00mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71MB36-01B10NSWITCH ROTARY 10POS 250MA 115V |
0 |
|
- |
71 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Round (4mm Dia) | 17.00mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
56P30-01-4-03SSWITCH ROTARY 3POS 200MA 115V |
0 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
50SP36-01-2-05NSWITCH ROTARY 5POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 13.64mm |
|
|
50BSP36-01-2-03NSWITCH ROTARY 3POS 150MA 115V |
0 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 13.64mm |
|
|
51S30-01-2-03NSWITCH ROTARY 3POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
51S30-01-2-04NSWITCH ROTARY 4POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
51S30-01-2-06NSWITCH ROTARY 6POS 150MA 115V |
0 |
|
Datasheet |
51 | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|

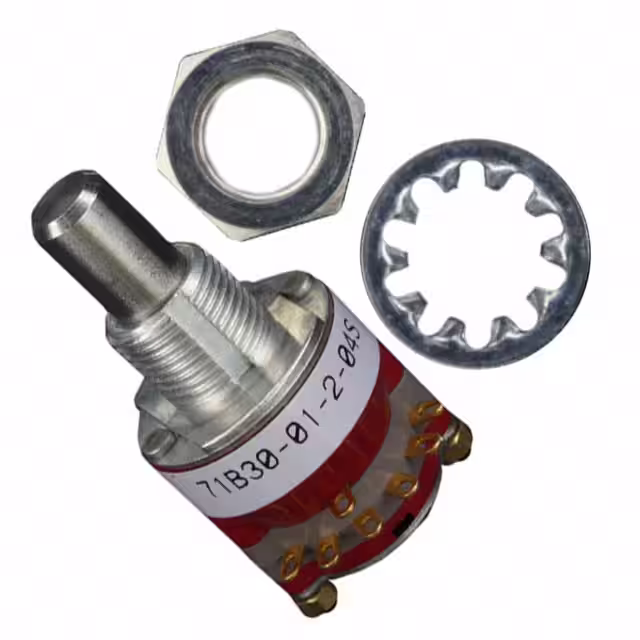

71B30-01-2-04SSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71A30-01-2-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71A30-01-2-05NSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71A30-01-2-06SSWITCH ROTARY 6POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
|
71A36-01-2-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Datasheet |
71 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
