Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M22L10-000-202POT 2K OHM 2W WIREWOUND LINEAR |
27 |
|
Datasheet |
M22L10 | Tray | Active | 2k | ±5% | 2W | None | 10.0 | Long Life | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
M22L10-100-103POT 10K OHM 2W WIREWOUND LINEAR |
10 |
|
Datasheet |
M22L10 | Tray | Active | 10k | ±5% | 2W | None | 10.0 | Long Life | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
533B1203JCPOT 20K OHM 1W WIREWOUND LINEAR |
11 |
|
Datasheet |
533 | Bulk | Active | 20k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

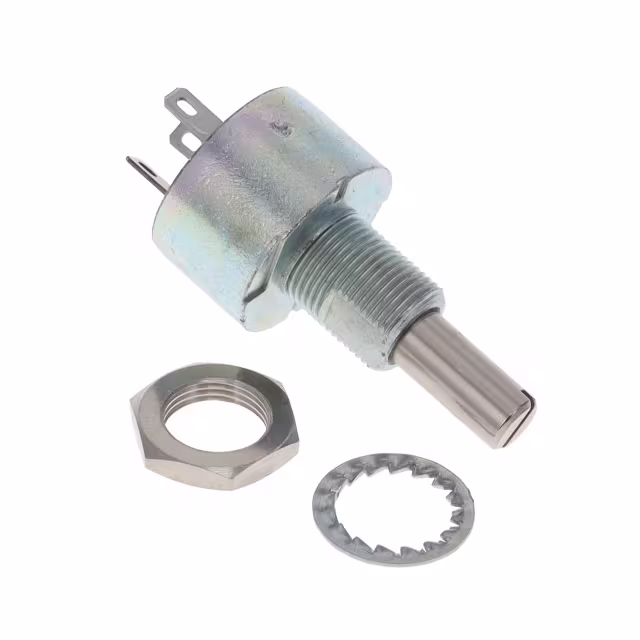

PE30L0FL104KABPOT 100K OHM 0.9W CERMET LINEAR |
43 |
|
Datasheet |
PE30 | Box | Active | 100k | ±10% | 0.9W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

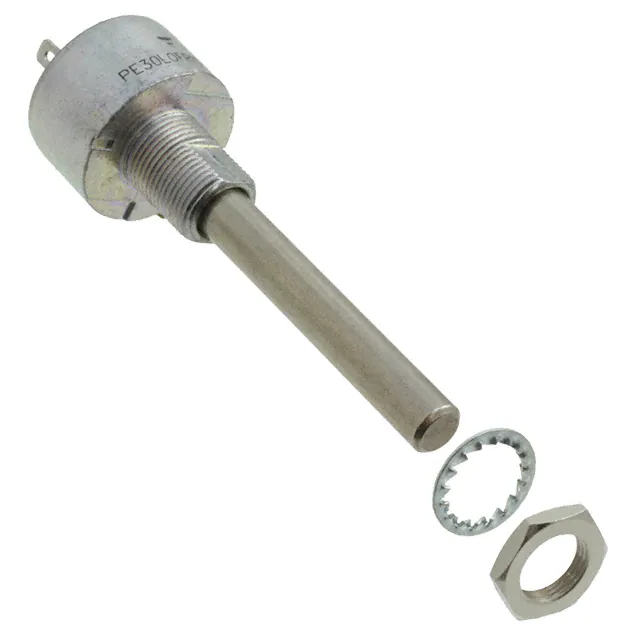

PE30L0FR103KABPOT 10K OHM 3W CERMET LINEAR |
38 |
|
Datasheet |
PE30 | Bulk | Active | 10k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

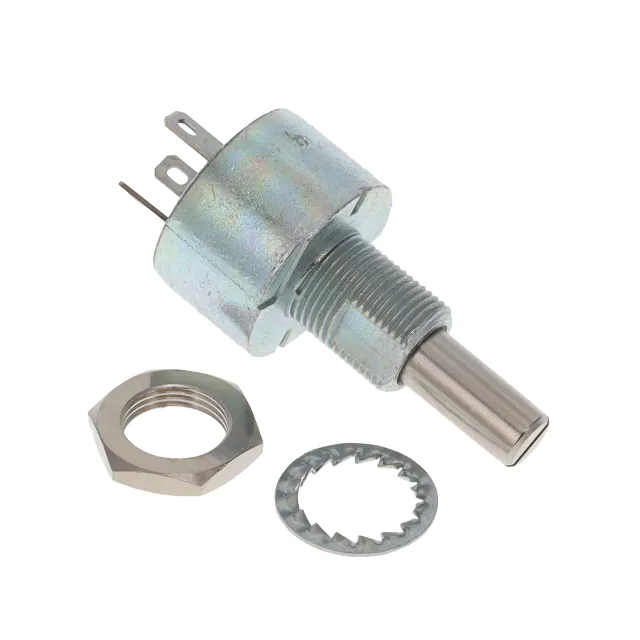

PE30L0FL223KABPOT 22K OHM 3W CERMET LINEAR |
13 |
|
Datasheet |
PE30 | Box | Active | 22k | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

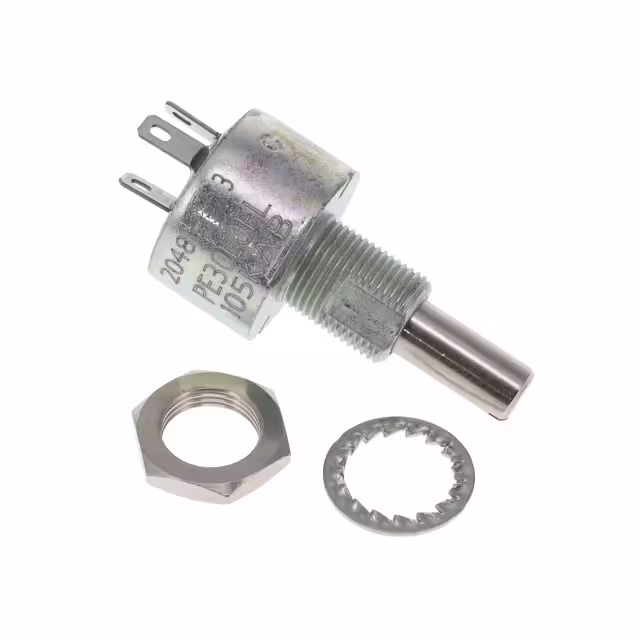

PE30L0FL105KABPOT 1M OHM 0.09W CERMET LINEAR |
20 |
|
Datasheet |
PE30 | Box | Active | 1M | ±10% | 0.09W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

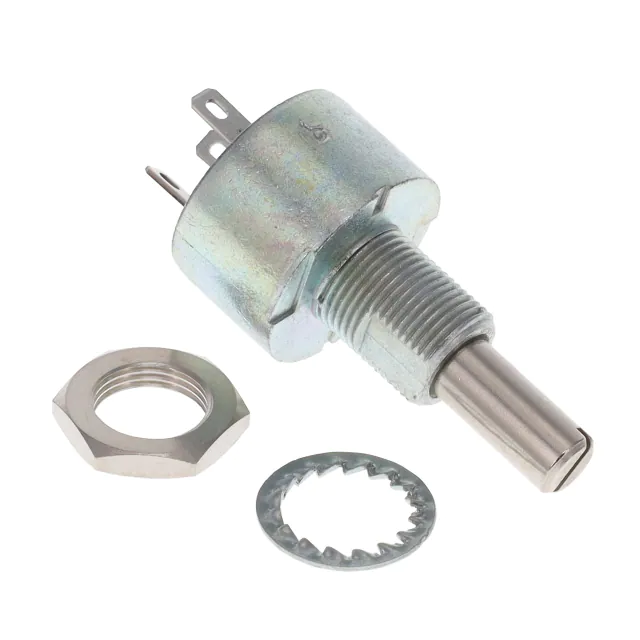

PE30L0FL221KABPOT 220 OHM 3W CERMET LINEAR |
12 |
|
Datasheet |
PE30 | Box | Active | 220 | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PE30L0FL474KABPOT 470K OHM 0.19W CERMET LINEAR |
96 |
|
Datasheet |
PE30 | Box | Active | 470k | ±10% | 0.19W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PE30L0FL102KABPOT 1K OHM 3W CERMET LINEAR |
38 |
|
Datasheet |
PE30 | Bulk | Active | 1k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

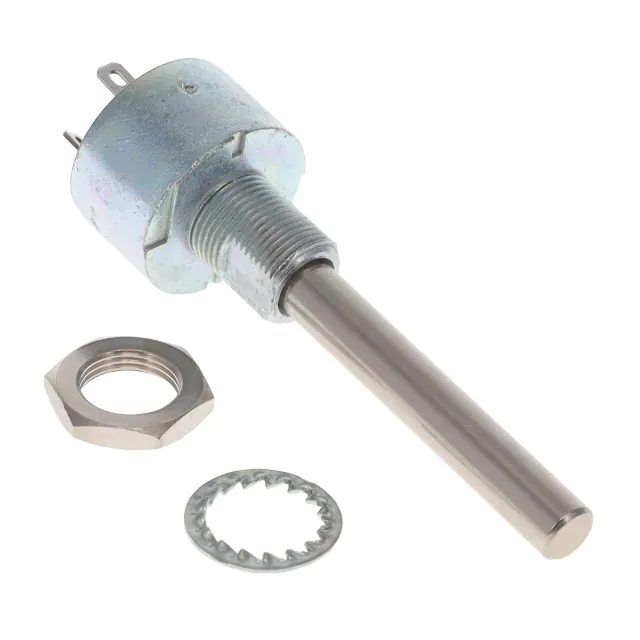

PE30L0FR223KABPOT 22K OHM 3W CERMET LINEAR |
30 |
|
Datasheet |
PE30 | Box | Active | 22k | ±10% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
3543S-1-102LPOT 1K OHM 1W WIREWOUND LINEAR |
89 |
|
Datasheet |
3543 | Bulk | Active | 1k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3545S-1-202LPOT 2K OHM 1.5W WIREWOUND LINEAR |
82 |
|
Datasheet |
3545 | Tray | Active | 2k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

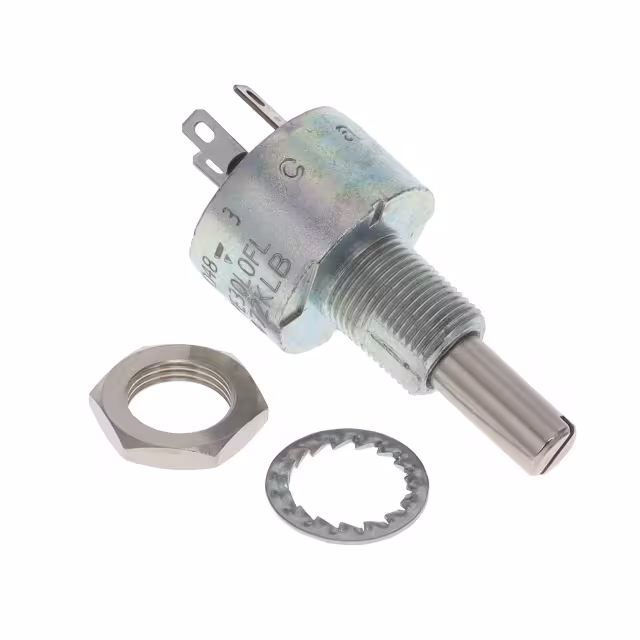

PE30L0FL472KLBPOT 4.7K OHM 1.5W CERMET LOG |
40 |
|
Datasheet |
PE30 | Box | Active | 4.7k | ±10% | 1.5W | None | 1.0 | - | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
3549H-1AA-103APOT 10K OHM 2W HYBRITRON LINEAR |
4 |
|
Datasheet |
Hybritron® 3549 | Tray | Active | 10k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
6637S-1-102POT 1K OHM 1W PLASTIC LINEAR |
16 |
|
Datasheet |
6637 | Tray | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.1248" (3.17mm) | 3/8-32 | Panel Mount |
|
6657S-1-502POT 5K OHM 1.5W PLASTIC LINEAR |
18 |
|
Datasheet |
6657 | Bulk | Active | 5k | ±10% | 1.5W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
132B00102POT 1K OHM 2.75W WIREWOUND LIN |
5 |
|
Datasheet |
132 | Bulk | Active | 1k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | Continuous | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

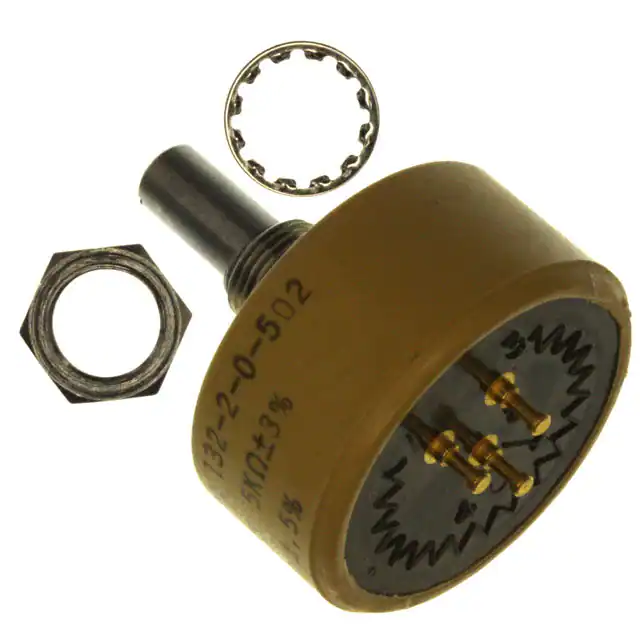

132B20502POT 5K OHM 2.75W WIREWOUND LIN |
20 |
|
Datasheet |
132 | Bulk | Active | 5k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 340° | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
132B00502POT 5K OHM 2.75W WIREWOUND LIN |
18 |
|
Datasheet |
132 | Bulk | Active | 5k | ±3% | 2.75W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | Continuous | Wirewound | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
