Mfr. Part #	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
RUEF900-1 PTC RESET FUSE 30V 9A RADIAL Littelfuse Inc.	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUEF	Bulk	Obsolete	Polymeric	30V	9 A	18 A	100 A	20 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.949" L x 0.120" W (24.10mm x 3.00mm)	1.142" (29.00mm)	-	0.400" (10.15mm)
15LR380U PTC RESET FUSE 15V 3.8A STRAP Littelfuse Inc.	-	RFQ	-	Strap	POLY-FUSE®, LR	Bulk	Obsolete	Polymeric	15V	3.8 A	8.3 A	100 A	5 s	13 mOhms	37 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.984" L x 0.283" W (25.00mm x 7.20mm)	-	0.039" (1.00mm)	-
24LT300U PTC RESET FUSE 24V 3A STRAP Littelfuse Inc.	-	RFQ	Datasheet	Strap	POLY-FUSE®, LT	Bulk	Obsolete	Polymeric	24V	3 A	6.3 A	100 A	4 s	15 mOhms	55 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	1.185" L x 0.522" W (30.10mm x 13.25mm)	-	0.043" (1.10mm)	-

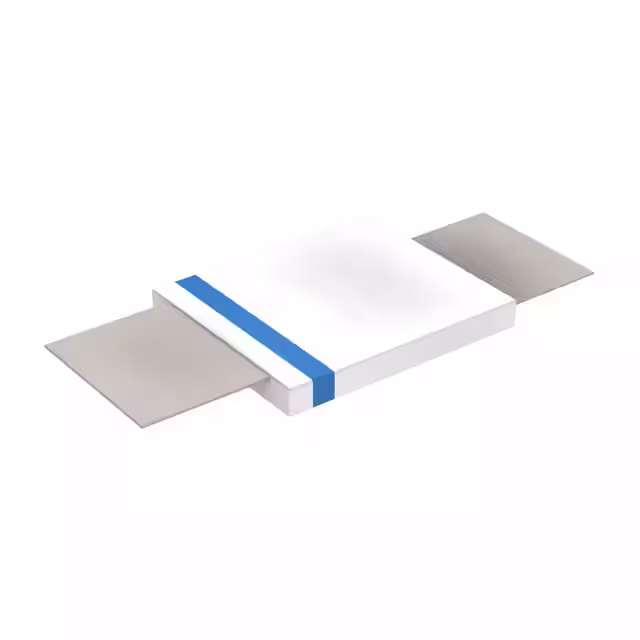

16VT240U PTC RESET FUSE 16V 2.4A STRAP Littelfuse Inc.	-	RFQ	-	Strap	POLY-FUSE®, VT	Bulk	Obsolete	Polymeric	16V	2.4 A	5.4 A	100 A	4 s	15 mOhms	52 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.992" L x 0.201" W (25.20mm x 5.10mm)	-	0.032" (0.80mm)	-
16VT270U PTC RESET FUSE 16V 2.7A STRAP Littelfuse Inc.	-	RFQ	-	Strap	POLY-FUSE®, VT	Bulk	Obsolete	Polymeric	16V	2.7 A	-	100 A	-	-	-	-	-	-	-	-	User Defined	-	-	-	-
PTGL07AS3R3K3B51B0 PTC RESET FUSE 51V 307MA RADIAL Murata Electronics	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	-	51V	307 mA	606 mA	3 A	-	-	-	-	-	-	-	-	Through Hole	0.287" Dia x 0.138" T (7.30mm x 3.50mm)	0.484" (12.30mm)	-	0.197" (5.00mm)
BK130-1100-DZ PTC RESET FUSE 130V 1.1A RAD YAGEO	-	RFQ	Datasheet	Radial, Disc	BK130	Bulk	Active	Polymeric	130V	1.1 A	2.2 A	10 A	9 s	300 mOhms	500 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.551" Dia x 0.150" T (14.00mm x 3.80mm)	0.638" (16.20mm)	-	0.201" (5.10mm)
BK130-1350-SZ PTC RESET FUSE 130V 1.35A RAD YAGEO	-	RFQ	Datasheet	Radial, Disc	BK130	Bulk	Active	Polymeric	130V	1.35 A	2.7 A	10 A	10 s	200 mOhms	400 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.520" L x 0.150" W (13.20mm x 3.80mm)	0.984" (25.00mm)	-	0.201" (5.10mm)
PTR016V0400-TR1 PTC RESET FUSE 16V 4A RADIAL Eaton - Electronics Division	-	RFQ	Datasheet	Radial, Disc	PTR016V	Tape & Reel (TR)	Active	Polymeric	16V	4 A	6.8 A	100 A	1.7 s	21 mOhms	60 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.350" L x 0.122" W (8.90mm x 3.10mm)	0.583" (14.80mm)	-	0.197" (5.00mm)
PTGL09AR4R7M3B51B0 PTC RESET FUSE 56V 350MA RADIAL Murata Electronics	-	RFQ	Datasheet	Radial, Disc	POSISTOR®, PTGL	Bulk	Obsolete	Ceramic	56V	350 mA	600 mA	2 A	-	-	-	4.7 Ohms	-10°C ~ 60°C	-	-	-	Through Hole	0.374" Dia x 0.157" T (9.50mm x 4.00mm)	0.610" (15.50mm)	-	0.197" (5.00mm)
2016L300/16MR-A PTC 16V POLYFUSE SURF MOUNT 2016 Littelfuse Inc.	-	RFQ	Datasheet	2016 (5041 Metric), Concave	POLY-FUSE®, 2016L	Tape & Reel (TR)	Active	Polymeric	16V	3 A	5 A	40 A	10 s	15 mOhms	48 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.200" L x 0.160" W (5.08mm x 4.07mm)	-	0.063" (1.60mm)	-
2016L260/24MR-A PTC 24V POLYFUSE SURF MOUNT 2016 Littelfuse Inc.	-	RFQ	Datasheet	2016 (5041 Metric), Concave	POLY-FUSE®, 2016L	Tape & Reel (TR)	Active	Polymeric	24V	2.6 A	5 A	40 A	5 s	25 mOhms	75 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.200" L x 0.160" W (5.08mm x 4.07mm)	-	0.063" (1.60mm)	-
LVRL135S PTC RESET FUSE 120V 1.35A RADIAL Littelfuse Inc.	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVRL	Bulk	Obsolete	Polymeric	120V (135V Int)	1.35 A	2.7 A	13.5 A	20 s	110 mOhms	300 mOhms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.640" L x 0.160" W (16.30mm x 4.10mm)	0.854" (21.70mm)	-	0.200" (5.08mm)

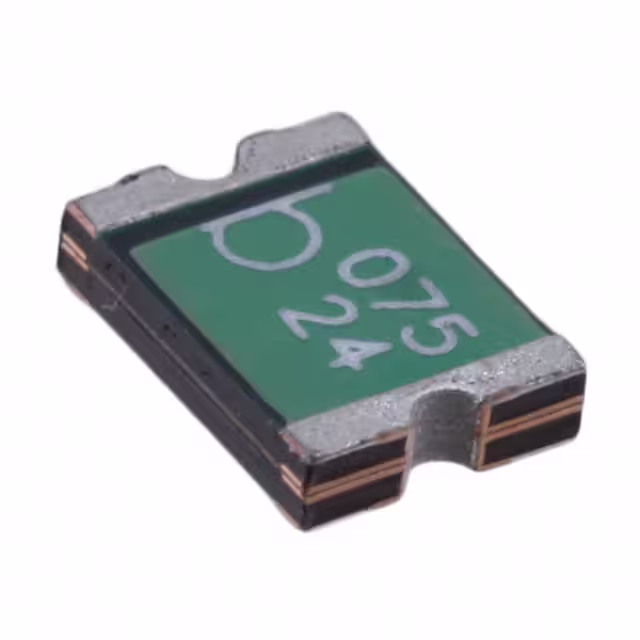

0ZCC0160BF2C PTC RESET FUSE 16V 1.6A 1812 Bel Fuse Inc.	-	RFQ	Datasheet	1812 (4532 Metric), Concave	0ZCC	Tape & Reel (TR)	Obsolete	Polymeric	16V	1.6 A	3.2 A	100 A	1 s	30 mOhms	100 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.053" (1.35mm)	-
0ZCC0200FF2C PTC RESET FUSE 8V 2A 1812 Bel Fuse Inc.	-	RFQ	Datasheet	1812 (4532 Metric), Concave	0ZCC	Tape & Reel (TR)	Obsolete	Polymeric	8V	2 A	3.5 A	100 A	2 s	20 mOhms	70 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.047" (1.20mm)	-
MF-RHT500-0-14 PTC 5.0A 16V RADIAL LEADED HI-TE Bourns Inc.	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RHT	Bulk	Active	Polymeric	16V	5 A	9 A	100 A	9 s	17.5 mOhms	45 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.441" L x 0.118" W (11.20mm x 3.00mm)	0.744" (18.90mm)	-	0.201" (5.10mm)
250S130-RCDR PTC RESET FUSE 60V 130MA 2SMD Littelfuse Inc.	-	RFQ	Datasheet	2-SMD	POLY-FUSE®, 250S	Tape & Reel (TR)	Obsolete	Polymeric	60V (250V Int)	130 mA	260 mA	3 A	1.1 s	7 Ohms	17 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.370" L x 0.291" W (9.40mm x 7.40mm)	-	0.146" (3.70mm)	-
250S130VDR PTC RESET FUSE 60V 130MA 2SMD Littelfuse Inc.	-	RFQ	Datasheet	2-SMD	POLY-FUSE®, 250S	Tape & Reel (TR)	Obsolete	Polymeric	60V (250V Int)	130 mA	260 mA	3 A	2 s	4 Ohms	20 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.240" L x 0.272" W (6.10mm x 6.90mm)	-	0.126" (3.20mm)	-
RHEF750-AP PTC RESET FUSE 16V 7.5A RADIAL Littelfuse Inc.	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RHEF	Tape & Box (TB)	Obsolete	Polymeric	16V	7.5 A	13.1 A	100 A	7 s	9.4 mOhms	22 mOhms	-	-40°C ~ 125°C	-	-	-	Through Hole	0.551" L x 0.118" W (14.00mm x 3.00mm)	0.925" (23.50mm)	-	0.199" (5.05mm)
PTGL07AS121M0N51A0 FD Murata Electronics	-	RFQ	-	Radial, Disc	POSISTOR®, PTGL	Bulk	Active	Ceramic	280V	-	-	-	-	96 Ohms	144 Ohms	120 Ohms	-40°C ~ 105°C	-	-	-	Through Hole	-	-	-	-

Total 4956 Record«Prev 1... 173 174 175 176177178 179 180...248 Next»
