Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC4SD21YXPDHOPTOISOLATOR 5KV TRIAC SMD SHARP/Socle Technology |
0 |
|
Datasheet |
- | 5-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 5-SMD | CSA, UR, VDE |
|
PC3SD21NTZDFOPTOISOLATOR 5KV TRIAC 6DIP SHARP/Socle Technology |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
S2S3000FOPTOISOLATOR 3.75KV TRIAC 4MFP SHARP/Socle Technology |
0 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat | CSA, UR |
|
|
S2S3LY0FOPTOISOLATOR 3.75KV TRIAC 4SMD SHARP/Socle Technology |
0 |
|
Datasheet |
- | 4-SMD | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 5mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
|
S2S4LY0FOPTOISOLATOR 3.75KV TRIAC 4SMD SHARP/Socle Technology |
0 |
|
Datasheet |
- | 4-SMD | Tube | Obsolete | Triac | Yes | 1 | 3750Vrms | 600 V | 100V/µs | 5mA | 50 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
PC3SD21NTZBFOPTOISOLATOR 5KV TRIAC 6DIP SHARP/Socle Technology |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC4SD21NTZDFOPTOISOLATOR 5KV TRIAC 6DIP SHARP/Socle Technology |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD11NTZCFOPTOISOLATOR 5KV TRIAC 6DIP SHARP/Socle Technology |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD11NTZBFOPTOISOLATOR 5KV TRIAC 6DIP SHARP/Socle Technology |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|

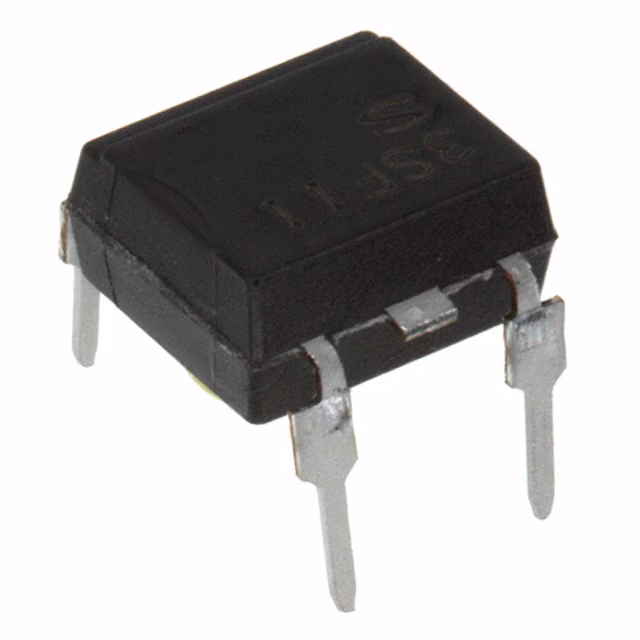

PC3SF11YTZBFOPTOISOLATOR 5KV TRIAC 6DIP SHARP/Socle Technology |
0 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
