Mfr. Part #	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Channels	Inputs - Side 1/Side 2	Voltage - Isolation	Common Mode Transient Immunity (Min)	Input Type	Output Type	Current - Output / Channel	Data Rate	Propagation Delay tpLH / tpHL (Max)	Rise / Fall Time (Typ)	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Voltage - Supply	Grade	Qualification	Operating Temperature	Mounting Type	Supplier Device Package
ACPL-072L-500 OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	-	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tape & Reel (TR)	Active	1	1/0	3750Vrms	10kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25MBd	40ns, 40ns	9ns, 8ns	-	-	3V ~ 3.6V, 4.5V ~ 5.5V	-	-	-40°C ~ 105°C	Surface Mount	8-SO Tall
ACPL-K74T-060E OPTOISO 5KV 2CH PUSH PULL 8SO Broadcom Limited	-	RFQ	Datasheet	-	8-SOIC (0.268", 6.81mm Width)	Tube	Active	2	2/0	5000Vrms	15kV/µs	DC	Push-Pull, Totem Pole	-	-	35ns, 35ns	10ns, 10ns	1.5V	20mA	3V ~ 5.5V	-	-	-40°C ~ 125°C	Surface Mount	8-SO Stretched
ACPL-K75T-060E OPTOISO 5KV 2CH PUSH PULL 8SO Broadcom Limited	-	RFQ	Datasheet	-	8-SOIC (0.268", 6.81mm Width)	Tube	Active	2	2/0	5000Vrms	25kV/µs	DC	Push-Pull, Totem Pole	-	-	100ns, 100ns	10ns, 10ns	1.5V	20mA	3V ~ 5.5V	-	-	-40°C ~ 125°C	Surface Mount	8-SO Stretched
ACSL-6310-56TE OPTOISO 2.5KV 3CH OPEN COLL 16SO Broadcom Limited	-	RFQ	Datasheet	-	16-SOIC (0.154", 3.90mm Width)	Tape & Reel (TR)	Active	3	2/1	2500Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	100ns, 100ns	30ns, 12ns	1.52V	15mA	3V ~ 5.5V	-	-	-40°C ~ 100°C	Surface Mount	16-SOIC
HCPL-263N-320E OPTOISO 5KV 2CH OPEN COL 8DIP GW Broadcom Limited	-	RFQ	Datasheet	-	8-SMD, Gull Wing	Tube	Active	2	2/0	5000Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	42ns, 12ns	1.3V	10mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	8-DIP Gull Wing
HCPL-2411-300E OPTOISO 2.5KV TRI-STATE 8DIP GW Broadcom Limited	-	RFQ	-	-	8-SMD, Gull Wing	Tube	Active	1	1/0	2500Vrms	1kV/µs	DC	Tri-State	25 mA	40MBd	55ns, 55ns	20ns, 10ns	1.3V	10mA	4.75V ~ 5.25V	-	-	0°C ~ 70°C	Surface Mount	8-DIP Gull Wing

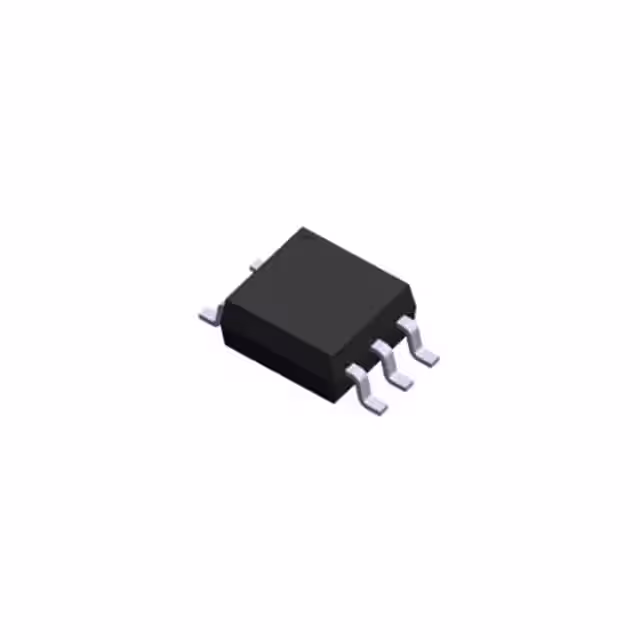

ELM611(TA) OPTOISO 3.75KV OPEN COLL 5SOP Everlight Electronics Co Ltd	-	RFQ	Datasheet	-	6-SOIC (0.173", 4.40mm Width), 5 Leads	Tape & Reel (TR)	Active	1	1/0	3750Vrms	20kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10Mbps	100ns, 100ns	40ns, 10ns	1.45V	50mA	7V	-	-	-40°C ~ 85°C	Surface Mount	5-SOP
HCPL-263L OPTOISO 3.75KV 2CH OPEN COL 8DIP Broadcom Limited	-	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	2	2/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	75ns, 75ns	24ns, 10ns	1.5V	15mA	2.7V ~ 3.6V, 4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
ACPL-072L OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	-	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tube	Active	1	1/0	3750Vrms	10kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25MBd	40ns, 40ns	9ns, 8ns	-	-	3V ~ 3.6V, 4.5V ~ 5.5V	-	-	-40°C ~ 105°C	Surface Mount	8-SO Tall
HCPL-7723-360E OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	-	RFQ	Datasheet	-	8-SMD, Gull Wing	Tube	Active	1	1/0	3750Vrms	10kV/µs	Logic	Push-Pull, Totem Pole	10 mA	50MBd	22ns, 22ns	8ns, 6ns	-	-	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	8-DIP Gull Wing
HCPL-7723-320E OPTOISO 5KV PUSH PULL 8DIP GW Broadcom Limited	-	RFQ	Datasheet	-	8-SMD, Gull Wing	Tube	Active	1	1/0	5000Vrms	10kV/µs	Logic	Push-Pull, Totem Pole	10 mA	50MBd	22ns, 22ns	8ns, 6ns	-	-	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	8-DIP Gull Wing
HCPL-263L#020 OPTOISO 5KV 2CH OPEN COLL 8DIP Broadcom Limited	-	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	2	2/0	5000Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	75ns, 75ns	24ns, 10ns	1.5V	15mA	2.7V ~ 3.6V, 4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
ACFL-6211T-500E OPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited	-	RFQ	Datasheet	R²Coupler™	12-BSOP (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	2	1/1	5000Vrms	15kV/µs	DC	Push-Pull, Totem Pole	10 mA	15MBd	35ns, 35ns	10ns, 10ns	1.5V	20mA	3V ~ 5.5V	Automotive	AEC-Q100	-40°C ~ 125°C	Surface Mount	12-SO

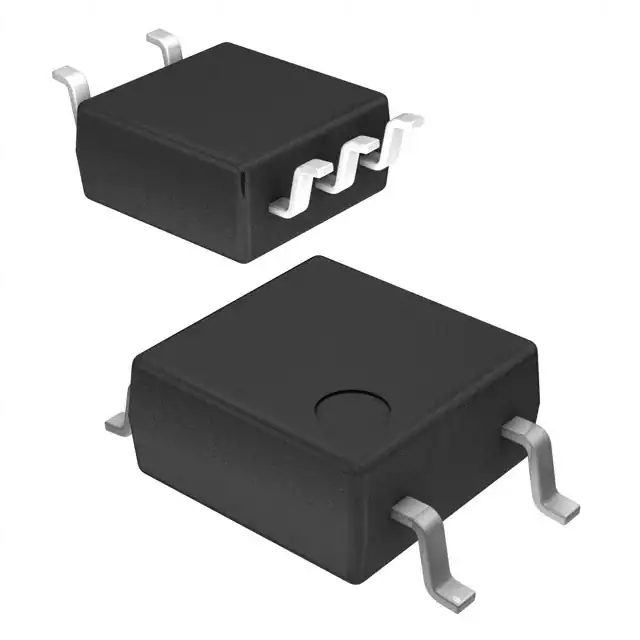

APS1551S OPTOISO 3.75KV PUSH PULL Panasonic Electric Works	-	RFQ	Datasheet	-	6-SOIC (0.173", 4.40mm Width), 5 Leads	Tube	Active	1	1/0	3750Vrms	15kV/µs	DC	Push-Pull, Totem Pole	10 mA	50Mbps	30ns, 30ns	4ns, 5ns	1.6V	25mA	4.5V ~ 5.5V	-	-	-40°C ~ 105°C	Surface Mount	6-SO, 5 Lead
ACFL-6211T-560E OPTOISO 5KV 2CH PSH PULL SO12 Broadcom Limited	-	RFQ	Datasheet	R²Coupler™	12-BSOP (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	2	1/1	5000Vrms	15kV/µs	DC	Push-Pull, Totem Pole	10 mA	15MBd	35ns, 35ns	10ns, 10ns	1.5V	20mA	3V ~ 5.5V	Automotive	AEC-Q100	-40°C ~ 125°C	Surface Mount	12-SO
PS9924-Y-V-F3-AX OPTOISO 7.5KV OPN COLLECTOR 8DIP CEL	-	RFQ	Datasheet	-	8-SOIC (0.543", 13.80mm Width)	Tape & Reel (TR)	Discontinued at Digi-Key	1	1/0	7500Vrms	15kV/µs	DC	Open Collector	25 mA	10Mbps	75ns, 75ns	20ns, 5ns	1.56V	25mA	2.7V ~ 5.5V	-	-	-40°C ~ 110°C	Surface Mount	8-LSDIP
HCPL-261A-560E OPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited	-	RFQ	Datasheet	-	8-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	3750Vrms	1kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	42ns, 12ns	1.3V	10mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	8-DIP Gull Wing
HCPL-0723-560E OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	-	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tape & Reel (TR)	Active	1	1/0	3750Vrms	10kV/µs	Logic	Push-Pull, Totem Pole	10 mA	50MBd	22ns, 22ns	8ns, 6ns	-	-	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	8-SO Tall
CPC5001GSTR OPTOISO 3.75KV 2CH OPEN DRN 8SMD IXYS Integrated Circuits Division	-	RFQ	-	-	8-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	2	1/1	3750Vrms	5kV/µs, 7kV/µs	Logic	Open Drain	-	5MBd	250ns, 100ns	-	-	-	2.7V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	-
PS9513L1-AX OPTOISO 5KV OPEN COLLECTOR 8DIP CEL	-	RFQ	Datasheet	-	8-DIP (0.400", 10.16mm)	Tube	Discontinued at Digi-Key	1	1/0	5000Vrms	15kV/µs	DC	Open Collector	15 mA	1Mbps	750ns, 500ns	-	1.65V	25mA	4.5V ~ 20V	-	-	-40°C ~ 100°C	Through Hole	8-DIP
