Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZ-2RL204SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 170gf | 14gf | 1.125" (28.6mm) | - | 0.050" (1.3mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
91SX40-H58SWITCH SNAP ACTION SPDT 7A 115V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
413SX21-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -53°C ~ 204°C |
|
BE-2RV22-A4SWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
BE | Bulk | Active | SPDT | On-Mom | 25A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 1.172" (29.8mm) | 0.250" (6.35mm) | 0.045" (1.1mm) | 0.030" (0.76mm) | -55°C ~ 85°C |
|
|
BZ-2RQ174-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-R7216-P5SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0003" (0.008mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
A-20GV-KSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 70gf | 14gf | 0.748" (19.0mm) | 0.625" (15.9mm) | 0.094" (2.4mm) | 0.158" (4.0mm) | -25°C ~ 80°C |
|
|
12SM604-TSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -55°C ~ 125°C |
|
|
1SM263SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
BZ-2RQ241-D5SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 255 ~ 368gf | 113gf | 1.500" (38.1mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 121°C |
|

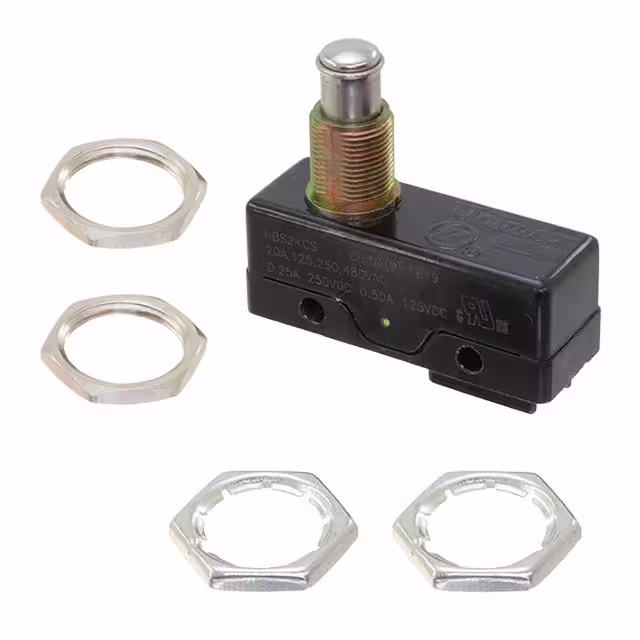

HBS2KCB4SJ011CSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 368gf | 113gf | 0.860" (21.84mm) | 0.020" (0.5mm) | - | 0.219" (5.6mm) | -55°C ~ 150°C |
|
|
111SM17-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 198gf | 57gf | 0.350" (8.9mm) | 0.218" (5.5mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|
|
BZ-RW822SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 156gf | 43gf | 1.188" (30.2mm) | - | 0.006" (0.15mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
13BS16SWITCH SNAP ACTION 20A 125V |
0 |
|
- |
BS | Bulk | Active | - | - | 20A (AC) | 125 V | - | Adjustable Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 85°C |
|
|
BA-R122-A4SWITCH BASIC LARGE |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7-1C17E9-048-SSWITCH V BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

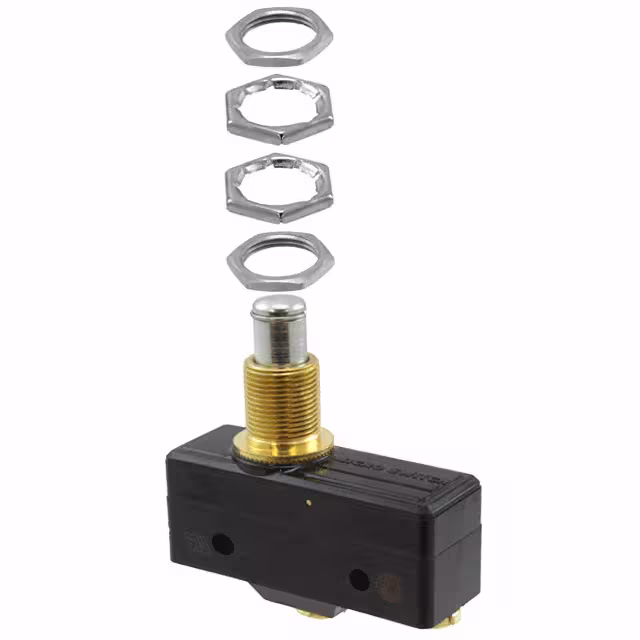

BE-2RQ1-A2SWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
BE | Bulk | Active | SPDT | On-Mom | 25A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 397 ~ 624gf | 283gf | 0.859" (21.8mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
BZ-7RW855T-SSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | Splash Proof | - | 113gf | 14gf | 0.750" (19.1mm) | - | 0.125" (3.2mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-2R55SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SX81SWITCH SNAP ACTION SPDT 7A 250V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
