Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature
D3V-21G-2C4A-K SWITCH SNP ACT SPST-NC 21A 250V Omron Electronics Inc-EMC Div	16	-	RFQ	Datasheet	D3V	Bulk	Active	SPST-NC	On-Mom	20A (AC)	250 V	-	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	125gf	20gf	0.579" (14.7mm)	0.047" (1.2mm)	0.012" (0.3mm)	0.040" (1.0mm)	-25°C ~ 85°C
V-10-2A4 SWITCH SNAP ACT SPST-NC 10A 250V Omron Electronics Inc-EMC Div	4	-	RFQ	Datasheet	V	Bulk	Active	SPST-NC	On-Mom	10A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	100gf	20gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 80°C

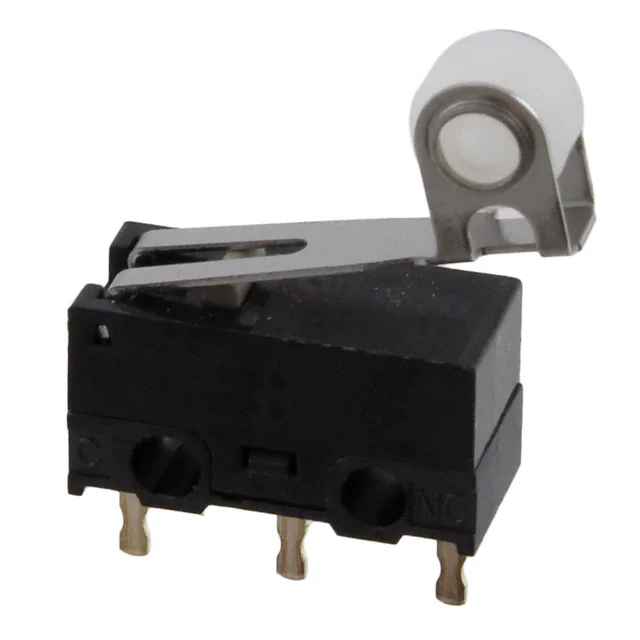

D2F-01L2-A1 SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Roller	Through Hole, Right Angle	PC Pin	IP40	Actuator Mounted Left Side	80gf	5.099gf	0.512" (13.0mm)	-	0.020" (0.5mm)	0.022" (0.55mm)	-40°C ~ 85°C

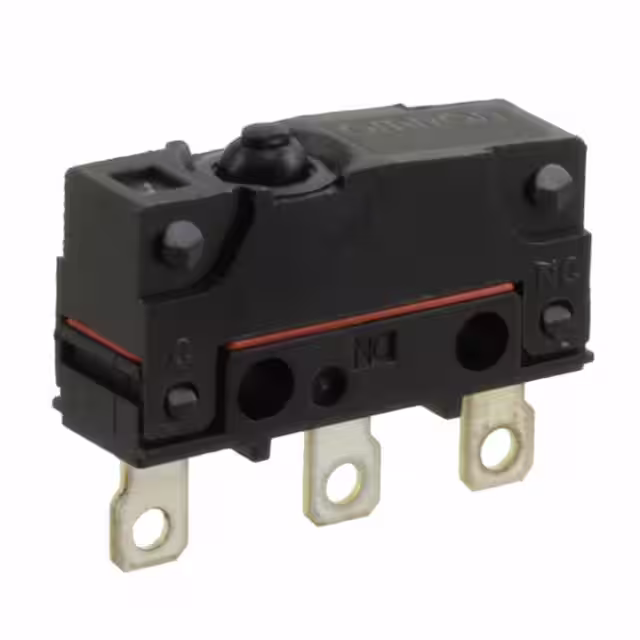

D2SW-P2H SWITCH SNAP ACTION SPDT 2A 250V Omron Electronics Inc-EMC Div	23	-	RFQ	Datasheet	D2SW-P	Bulk	Active	SPDT	On-Mom	2A (AC/DC)	250 V	30 V	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	183gf	20gf	0.330" (8.4mm)	0.024" (0.6mm)	0.006" (0.15mm)	0.015" (0.4mm)	-20°C ~ 70°C

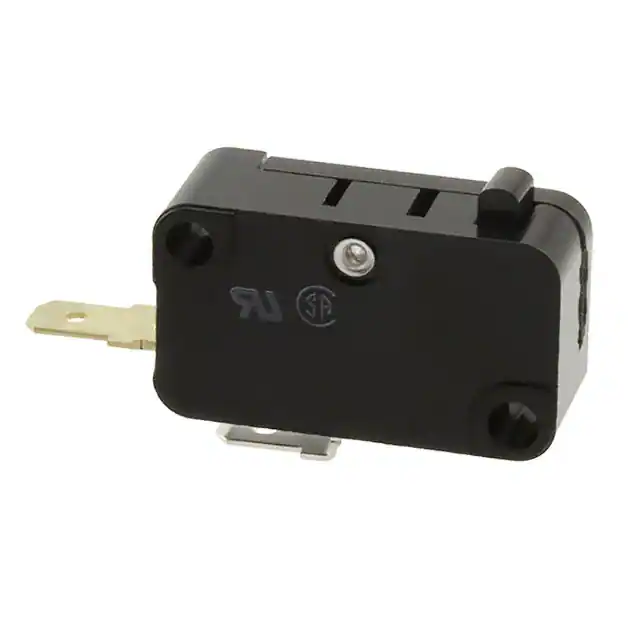

V-10-3C25 SWITCH SNAP ACT SPST-NO 10A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	V	Bulk	Active	SPST-NO	Off-Mom	10A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	50gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 80°C

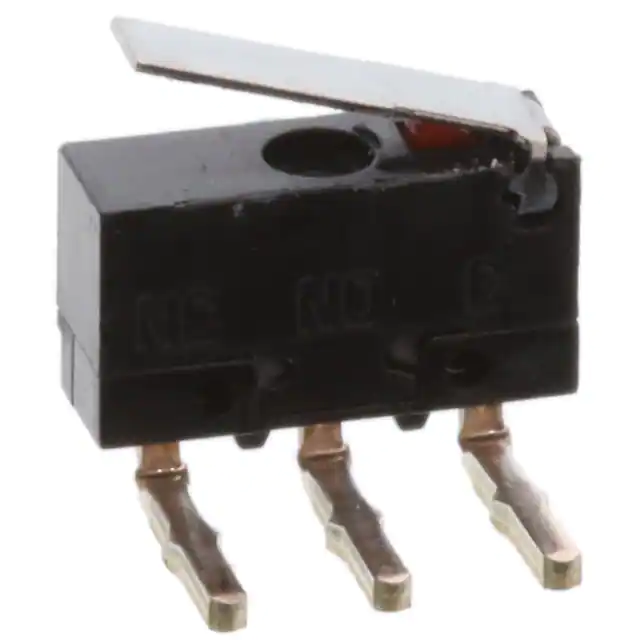

AV452461 SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works	2	-	RFQ	Datasheet	AV4	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Straight	Through Hole, Right Angle	PC Pin	-	Actuator Mounted Right Side	25gf	-	0.228" (5.8mm)	0.094" (2.4mm)	0.027" (0.7mm)	0.015" (0.4mm)	-25°C ~ 80°C

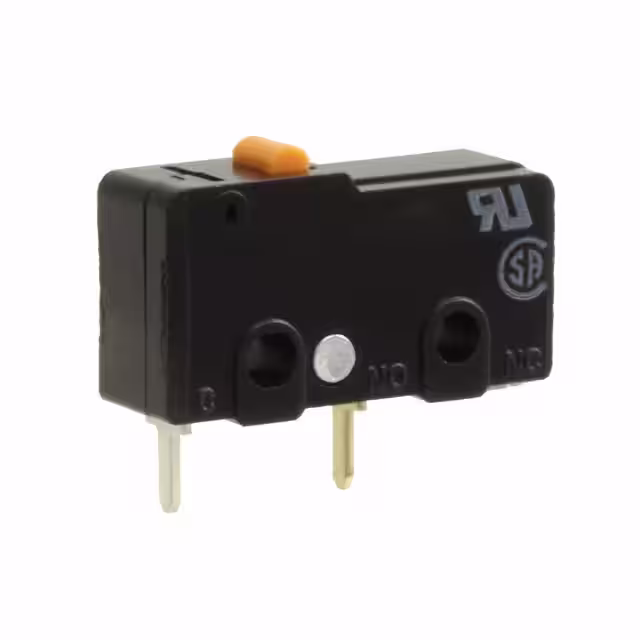

SS-5-3D SWITCH SNAP ACT SPST-NO 5A 125V Omron Electronics Inc-EMC Div	19	-	RFQ	Datasheet	SS	Bulk	Active	SPST-NO	Off-Mom	5A (AC)	125 V	-	Round (Pin Plunger)	Through Hole	PC Pin	IP40	-	150gf	25gf	0.330" (8.4mm)	0.020" (0.5mm)	0.004" (0.1mm)	0.020" (0.5mm)	-25°C ~ 85°C
V-10-3C24 SWITCH SNAP ACT SPST-NO 10A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	V	Bulk	Active	SPST-NO	Off-Mom	10A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	100gf	20gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 80°C

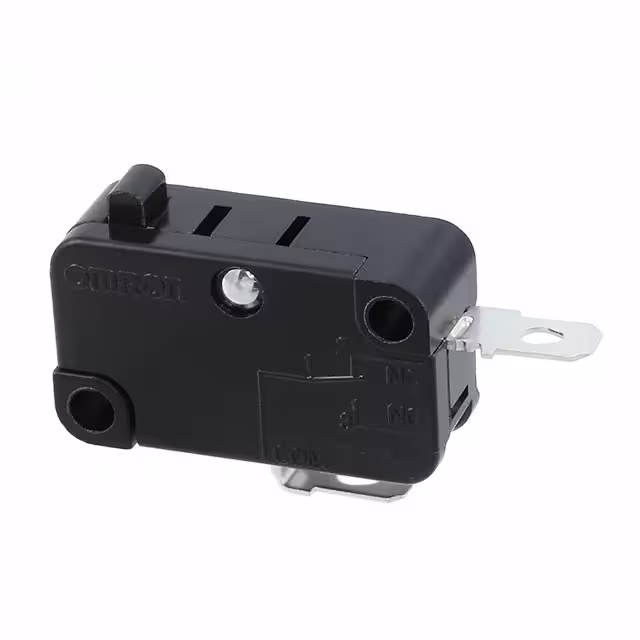

V-15-2A6 SWITCH SNAP ACT SPST-NC 15A 250V Omron Electronics Inc-EMC Div	7	-	RFQ	Datasheet	V	Bulk	Active	SPST-NC	On-Mom	15A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	400gf	80gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 80°C
D3V-11-1C24 SWITCH SNAP ACTION SPDT 11A 250V Omron Electronics Inc-EMC Div	11	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	11A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	100gf	15gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 105°C

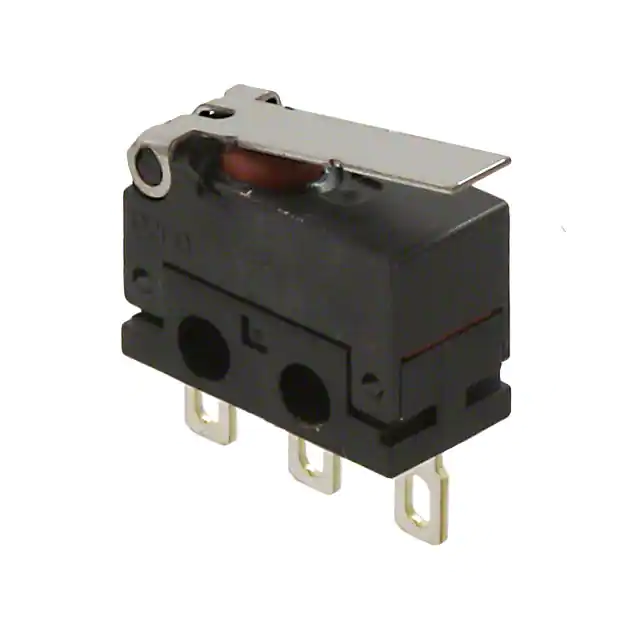

D2FD-01L1-1T SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	5	-	RFQ	Datasheet	D2FD	Bulk	Active	SPDT	On-Mom	100mA (AC/DC)	125 V	30 V	Lever, Straight	Through Hole	PC Pin	IP60 - Dust Tight	-	66gf	5.099gf	0.328" (8.3mm)	-	0.020" (0.5mm)	0.020" (0.5mm)	-20°C ~ 70°C
D2F-FL30-A SWITCH SNAP ACTION SPDT 3A 125V Omron Electronics Inc-EMC Div	3	-	RFQ	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	3A (AC)	125 V	-	Lever, Simulated Roller	Through Hole	PC Pin	IP40	-	75gf	5.000gf	0.335" (8.5mm)	-	0.018" (0.45mm)	0.020" (0.5mm)	-40°C ~ 85°C
D3V-116-1C24 SWITCH SNAP ACTION SPDT 11A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	11A (AC), 600mA (DC)	250 V	125 V	Lever, Roller	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	60gf	6.118gf	0.815" (20.7mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)	-25°C ~ 105°C
D3V-11G-1C23-K SWITCH SNAP ACTION SPDT 11A 250V Omron Electronics Inc-EMC Div	6	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	11A (AC), 100mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	50gf	5.099gf	0.579" (14.7mm)	0.047" (1.2mm)	0.012" (0.3mm)	0.040" (1.0mm)	-25°C ~ 105°C
D2F-F-A SWITCH SNAP ACTION SPDT 1A 125V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D2F	Tray	Active	SPDT	On-Mom	1A (AC)	125 V	-	Round (Pin Plunger)	Through Hole	PC Pin	-	-	-	-	-	-	-	-	-
V-15-1C26 SWITCH SNAP ACTION SPDT 15A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	V	Bulk	Active	SPDT	On-Mom	15A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	400gf	80gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 80°C

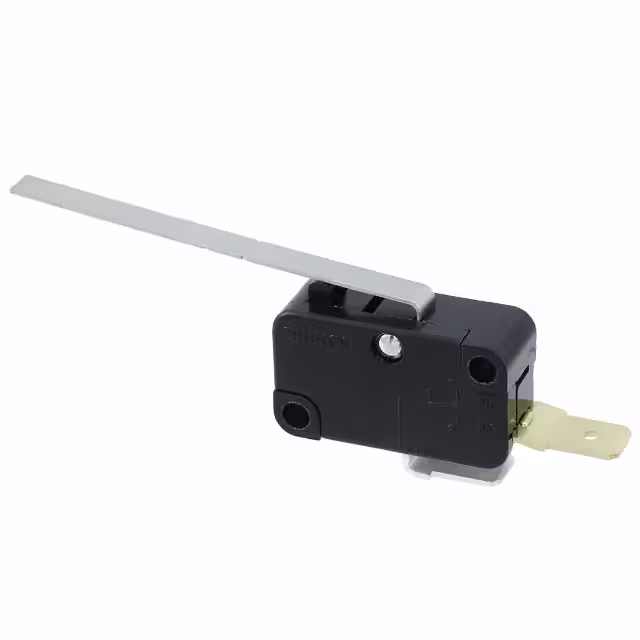

V-153-3C5 SWITCH SNAP ACT SPST-NO 15A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	V	Bulk	Active	SPST-NO	Off-Mom	15A (AC), 600mA (DC)	250 V	125 V	Lever, Straight	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	70gf	6.118gf	0.600" (15.2mm)	0.354" (9.0mm)	0.110" (2.8mm)	0.079" (2.0mm)	-25°C ~ 80°C

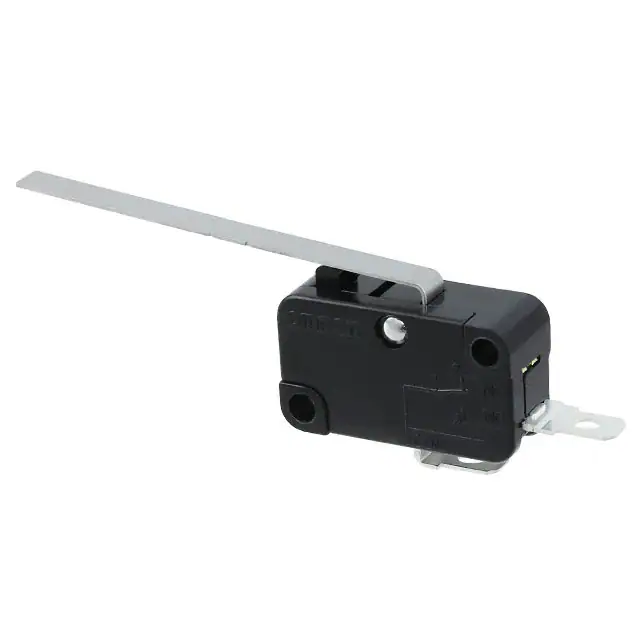

V-103-3A4 SWITCH SNAP ACT SPST-NO 10A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	V	Bulk	Active	SPST-NO	Off-Mom	10A (AC), 600mA (DC)	250 V	125 V	Lever, Straight	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	35gf	-	0.600" (15.2mm)	0.354" (9.0mm)	0.110" (2.8mm)	0.125" (3.2mm)	-25°C ~ 80°C
D3V-01-1A4-K SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	100mA (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	100gf	15gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 85°C

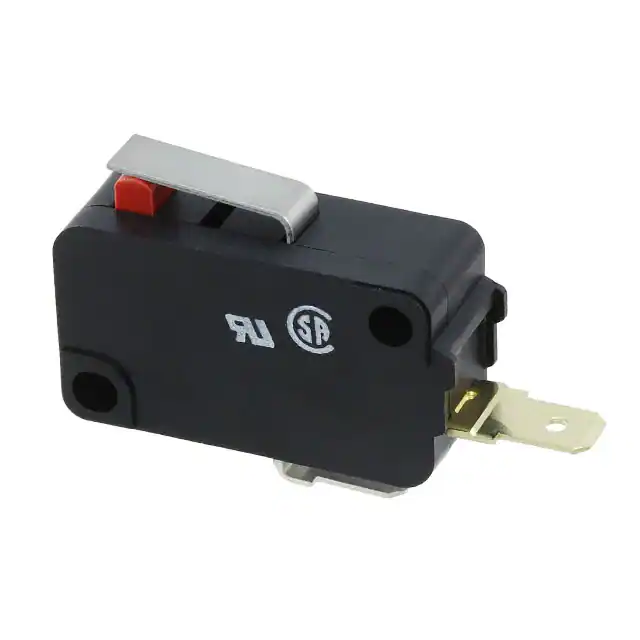

VX-011-3C23 SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	VX	Bulk	Active	SPST-NO	Off-Mom	100mA (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	50gf	4.079gf	0.600" (15.2mm)	0.063" (1.6mm)	0.020" (0.5mm)	0.030" (0.76mm)	-25°C ~ 80°C

Total 23871 Record«Prev 1... 369 370 371 372373374 375 376...1194 Next»
