Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature

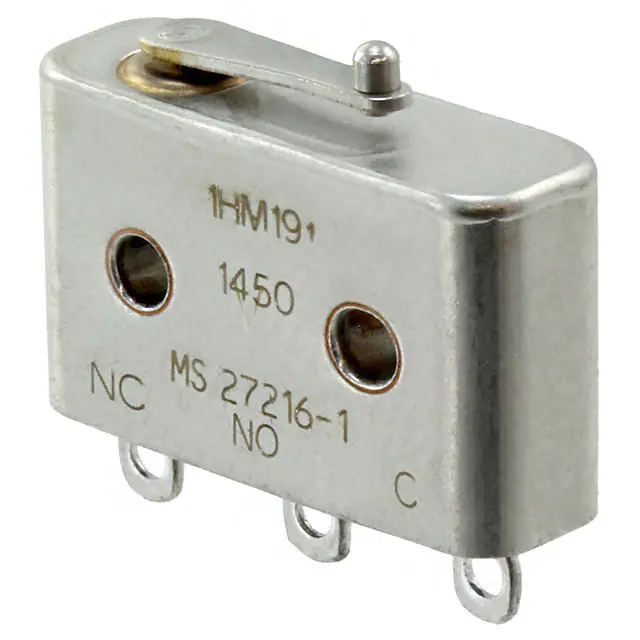

1HM19 SWITCH SNAP ACTION SPDT 4A 115V Honeywell Sensing and Productivity Solutions	1	-	RFQ	Datasheet	HM	Bulk	Active	SPDT	On-Mom	4A (AC/DC)	115 V	28 V	Lever, Straight	Chassis Mount	Solder Lug	-	Sealed - Hermetically	198gf	28gf	-	0.030" (0.8mm)	0.006" (0.15mm)	0.003" (0.076mm)	-65°C ~ 121°C
EX-XR3 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	0	-	RFQ	Datasheet	EX	Bulk	Active	SPDT	On-On	15A (AC), 500mA (DC)	125 V	125 V	Side Rotary, Roller	Chassis Mount	Wire Leads	-	Explosion Proof	340gf	340gf	-	0.219" (5.6mm)	-	90°	-
ESE-11MV1 SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components	22	-	RFQ	Datasheet	ESE11	Bulk	Active	SPST-NO	Off-Mom	10mA (DC)	-	5 V	Overtravel Plunger	Surface Mount	Gull Wing	-	-	35gf	-	0.305" (7.75mm)	-	-	-	-10°C ~ 70°C
ESE-22MH57 SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components	0	-	RFQ	Datasheet	ESE22	Bulk	Active	SPST-NO	Off-Mom	10mA (DC)	-	5 V	Angled Toggle (Detector)	Through Hole	Solder Lug	-	-	28gf	-	0.055" (1.4mm)	-	-	-	-10°C ~ 70°C
ESE-13V05D SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components	0	-	RFQ	Datasheet	ESE13	Tape & Reel (TR)	Active	SPST-NO	Off-Mom	10mA (DC)	-	5 V	Angled Toggle (Detector)	Surface Mount, Right Angle	SMD (SMT) Tab	-	Board Guide	30gf	-	15°	15°	-	60°	-10°C ~ 60°C

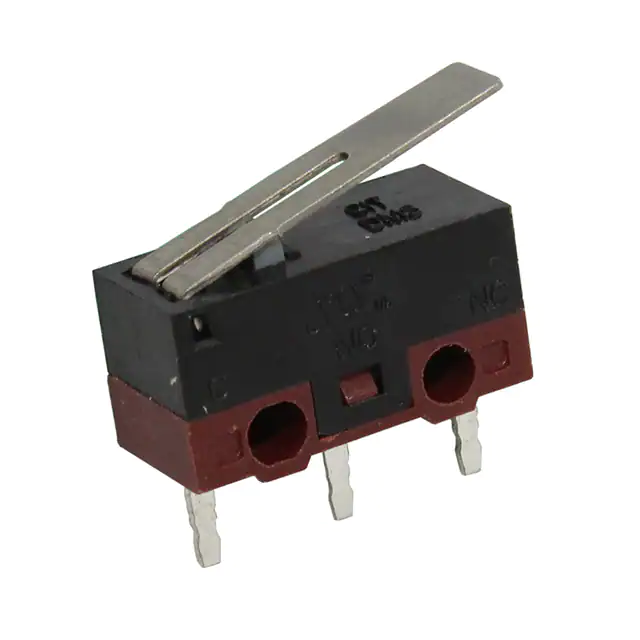

DM3CQF1003L01 SWITCH LIMIT SPDT 3A 125V CIT Relay and Switch	0	-	RFQ	Datasheet	DM3	Bag	Active	SPDT	On-Mom	3A (AC/DC)	125 V	30 V	Lever, Straight	Through Hole	PC Pin	-	-	35gf	15gf	0.281" (7.15mm)	0.087" (2.2mm)	0.027" (0.7mm)	0.035" (0.9mm)	-40°C ~ 85°C

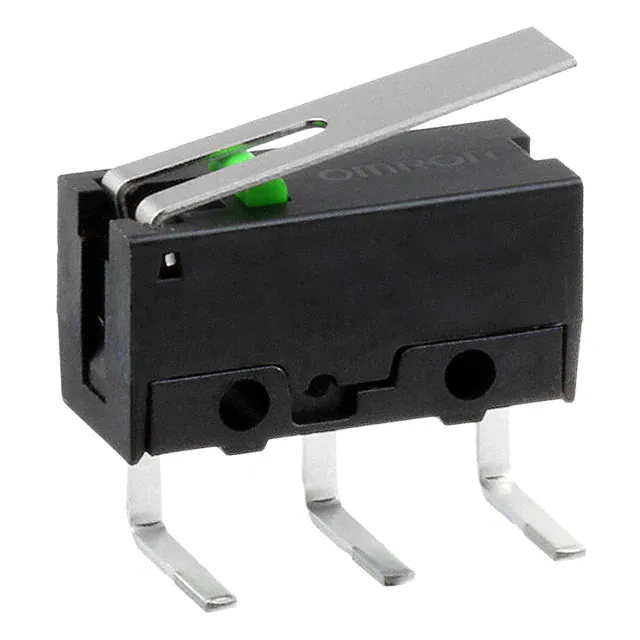

D2FS-FL-N-A1 SWITCH SNAP ACT SPST-NO 0.1A 6V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D2FS	Bulk	Active	SPST-NO	Off-Mom	100mA (DC)	-	6 V	Lever, Straight	Through Hole, Right Angle	PC Pin	IP40	Actuator Mounted Left Side	25gf	2.039gf	0.328" (8.3mm)	-	0.020" (0.5mm)	0.022" (0.55mm)	-20°C ~ 70°C
MS0850504F035S1C SWITCH SNAP ACT SPST-NO 5A 125V E-Switch	0	-	RFQ	Datasheet	MS	Bulk	Active	SPST-NO	Off-Mom	5A (AC)	125 V	-	Lever, Simulated Roller	Chassis Mount	Solder Lug	-	-	35gf	20gf	0.429" (10.9mm)	0.125" (3.2mm)	-	-	-25°C ~ 85°C
SM3CQF0805L01 SWITCH LIMIT SPDT 5A 125V CIT Relay and Switch	0	-	RFQ	Datasheet	SM3	Bag	Active	SPDT	On-Mom	5A (AC)	125 V	-	Lever, Straight	Through Hole, Right Angle	PC Pin	-	-	20gf	10gf	0.413" (10.5mm)	0.157" (4.0mm)	0.035" (0.9mm)	0.031" (0.8mm)	-40°C ~ 120°C
VM3AQF1802L03 SWITCH LIMIT SPST-NO 16A 125V CIT Relay and Switch	23	-	RFQ	Datasheet	VM3	Tray	Active	SPST-NO	Off-Mom	16A (AC)	125 V	-	Lever, Straight	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	70gf	50gf	0.551" (14.0mm)	0.131" (3.3mm)	0.025" (0.6mm)	0.090" (2.3mm)	-40°C ~ 120°C

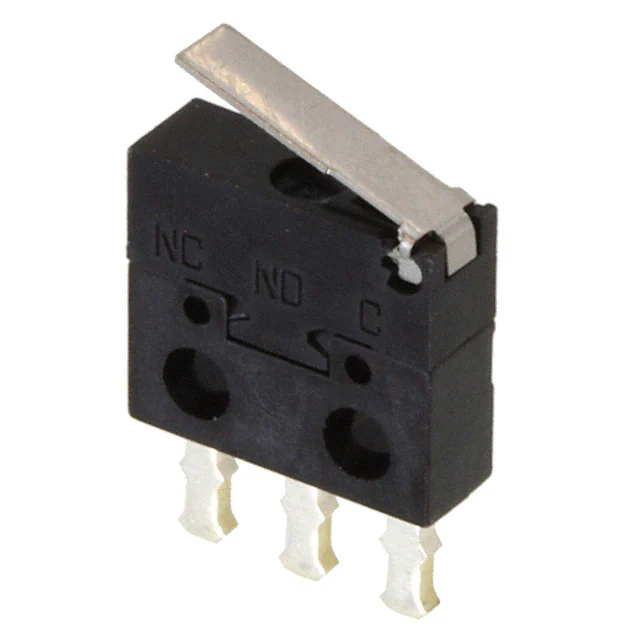

AV4024 SWITCH SNAP ACTION SPDT 0.5A 30V Panasonic Electric Works	0	-	RFQ	Datasheet	AV4	Bulk	Active	SPDT	On-Mom	500mA (DC)	-	30 V	Lever, Straight	Chassis Mount	Solder Lug	-	-	25gf	-	0.250" (6.4mm)	0.094" (2.4mm)	0.027" (0.7mm)	0.015" (0.4mm)	-25°C ~ 80°C

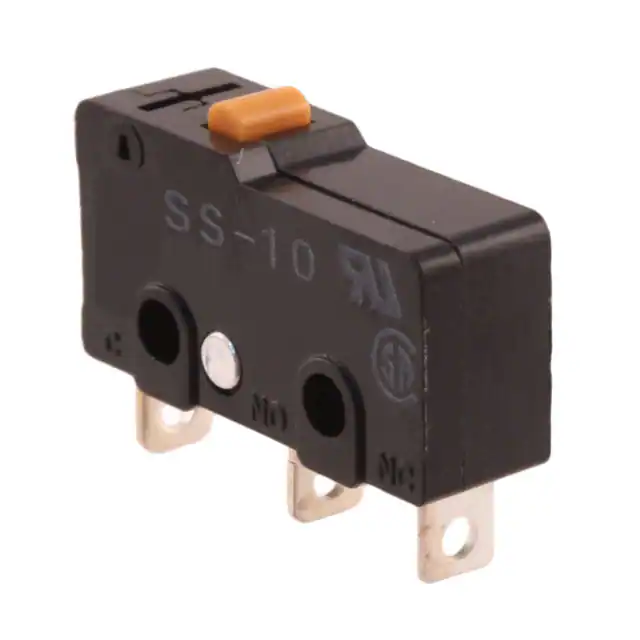

SS-10 SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	9	-	RFQ	Datasheet	SS	Tray	Active	SPDT	On-Mom	10A (AC)	250 V	-	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP40	-	150gf	25gf	0.330" (8.4mm)	0.024" (0.6mm)	0.005" (0.13mm)	0.015" (0.4mm)	-25°C ~ 85°C
D3V-16G-3C25-K SWITCH SNAP ACT SPST-NO 16A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D3V	Bulk	Active	SPST-NO	Off-Mom	16A (AC), 100mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	50gf	0.579" (14.7mm)	0.047" (1.2mm)	0.012" (0.3mm)	0.040" (1.0mm)	-25°C ~ 105°C
V-16-3C6(R) SWITCH SNAP ACT SPST-NO 16A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	V	Bulk	Active	SPST-NO	Off-Mom	16A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	400gf	80gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 80°C

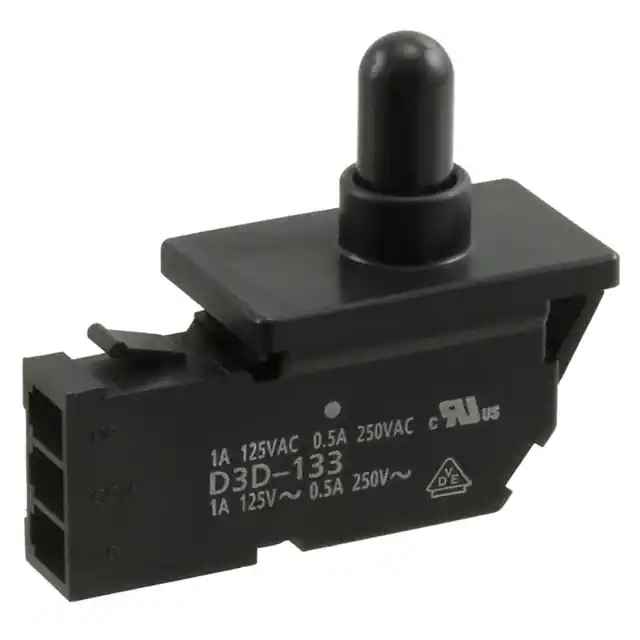

D3D-133 SWITCH SNAP ACT SPST-NO 1A 125V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D3D	Bulk	Active	SPST-NO	Off-Mom	1A (AC)	125 V	-	Overtravel Plunger	Panel Mount, Snap-In	Connector	IP00	Black Actuator	204gf	-	0.472" (12.0mm)	-	-	-	-30°C ~ 60°C
D3V-162-1C5 SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	16A (AC), 600mA (DC)	250 V	125 V	Lever, Straight	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	125gf	14gf	0.600" (15.2mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)	-25°C ~ 105°C
D3D-113 SWITCH SNAP ACTION SPDT 1A 125V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D3D	Bulk	Active	SPDT	On-Mom	1A (AC)	125 V	-	Overtravel Plunger	Panel Mount, Snap-In	Connector	IP00	Black Actuator	204gf	-	0.512" (13.0mm)	-	-	-	-30°C ~ 60°C
D3V-6-1C24 SWITCH SNAP ACTION SPDT 6A 250V Omron Electronics Inc-EMC Div	0	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	6A (AC), 400mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	100gf	15gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 105°C

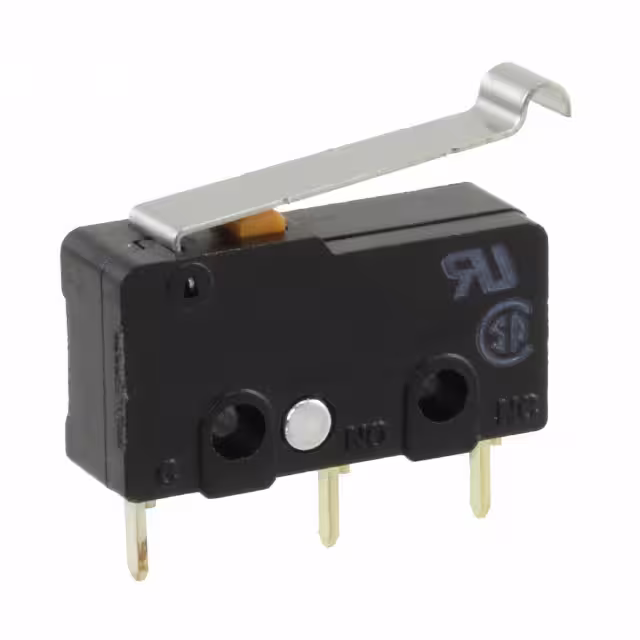

SS-5GL13-FD SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	2	-	RFQ	Datasheet	SS	Bulk	Active	SPDT	On-Mom	5A (AC)	125 V	-	Lever, Simulated Roller	Through Hole	PC Pin	IP40	-	16gf	2.039gf	0.420" (10.7mm)	-	0.031" (0.8mm)	0.047" (1.2mm)	-25°C ~ 85°C
D3V-16-1C5 SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	13	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	16A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	200gf	50gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 105°C

Total 23871 Record«Prev 1... 338 339 340 341342343 344 345...1194 Next»
