Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZ-2RW8225551SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | IP64 - Dust Tight, Water Resistant | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
11SM1777-TSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 56gf | 14gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
93SX47SWITCH SNAP ACTION SPDT 1A 28V |
96 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 28 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
|
BZ-2AW8557-D6SWITCH SNAP ACTION SPDT 15A 125V |
9 |
|
Datasheet |
BZ | Bulk | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 1A (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 240gf | 43gf | 1.188" (30.2mm) | 0.125" (3.2mm) | 0.008" (0.2mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

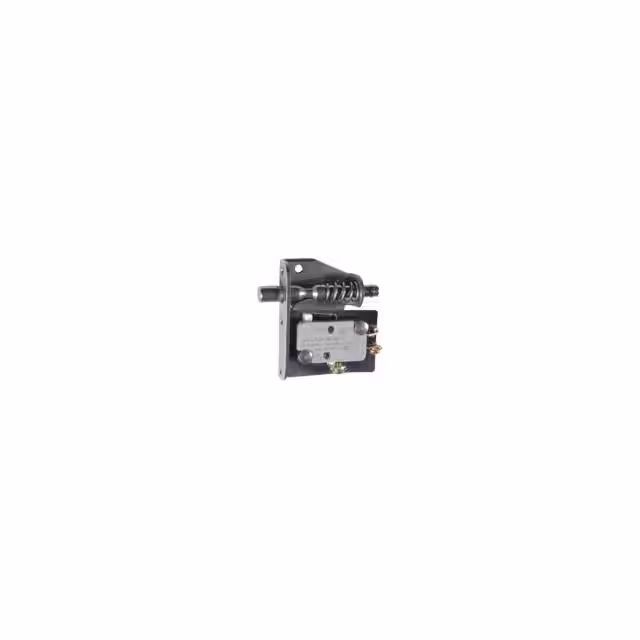

23TL404SWITCH SNAP ACT SPDTX2 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|

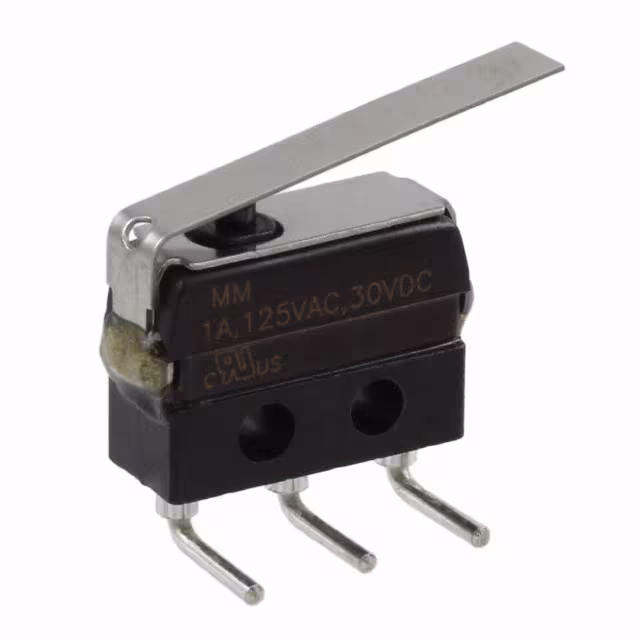

MMGGF5L0RSWITCH SNAP ACTION SPDT 1A 125V |
30 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
|
BA-3RX717SWITCH SNAP ACTION SPDT 20A 125V |
14 |
|
Datasheet |
BA | Bulk | Obsolete | SPDT | On-On | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 141 ~ 283gf | - | 0.665" (16.9mm) | 0.025" (0.65mm) | - | 0.100" (2.54mm) | -55°C ~ 85°C |
|
|
BZ-3YQ66TSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 250 V | - | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 454 ~ 737gf | 113gf | 1.500" (38.1mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|

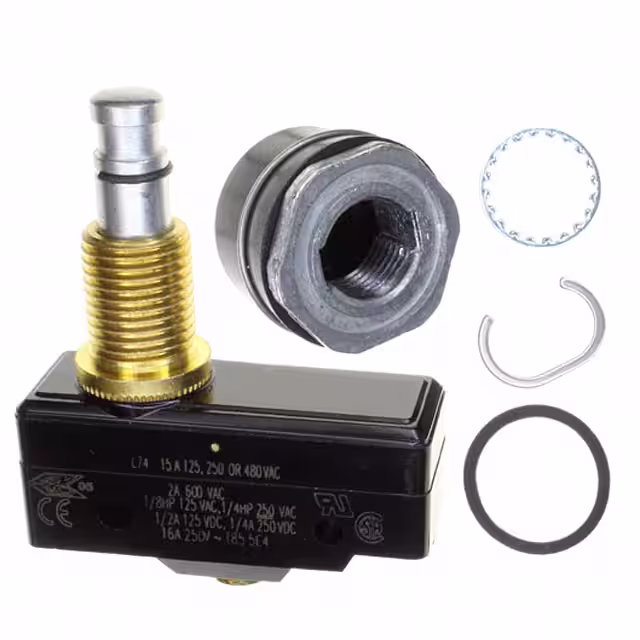

BZ-2RN770SWITCH SNAP ACTION SPDT 15A 125V |
12 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 1.906" (48.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
WW1A24A-D8SWITCH SNAP ACT SPST-NO 3A 125V |
7 |
|
Datasheet |
WW | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Button Guard | 570gf | - | 0.355" (9.0mm) | - | - | 0.079" (2.0mm) | - |
|
BZ-3YQ8TSWITCH SNAP ACTION SPDT 5A 250V |
25 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Roller Plunger | Panel Mount | Screw Terminal | - | - | 454 ~ 737gf | 113gf | 1.266" (32.2mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
83169024SWITCH SNAP ACTION SPDT 8A 125V |
0 |
|
Datasheet |
83169 | Bulk | Active | SPDT | On-Mom | 8A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1.2m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
|
YA-2RQ81245-D6SWITCH SNAP ACT SPST-NO 20A 125V |
0 |
|
Datasheet |
YA | Bulk | Obsolete | SPST-NO | Off-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Cross Roller Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 397 ~ 624gf | 255gf | 1.942" (49.3mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.219" (5.6mm) | -55°C ~ 121°C |
|
|
BFL1-BP1SWITCH SNAP ACTION SPDT 11A 125V |
0 |
|
Datasheet |
BF | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Side Plunger | Chassis Mount | Screw Terminal | - | - | 1247gf | - | - | - | 0.025" (0.6mm) | - | - |
|
HBS7PBB4SJ011CSWITCH SNAP ACTION SPDT 20A 125V |
65 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 737gf | 113gf | 0.860" (21.84mm) | 0.030" (0.8mm) | - | 0.219" (5.6mm) | -55°C ~ 150°C |
|

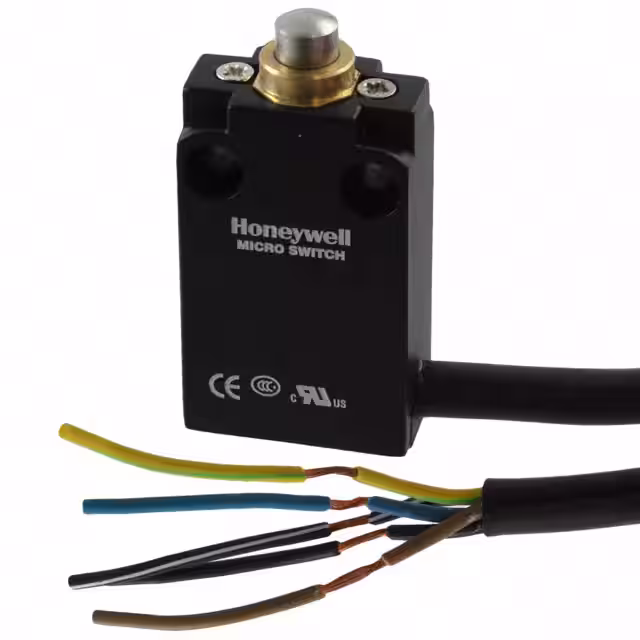

91MCE1-S1SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 816gf | - | - | 0.063" (1.6mm) | 0.055" (1.4mm) | 0.134" (3.4mm) | -25°C ~ 85°C |
|

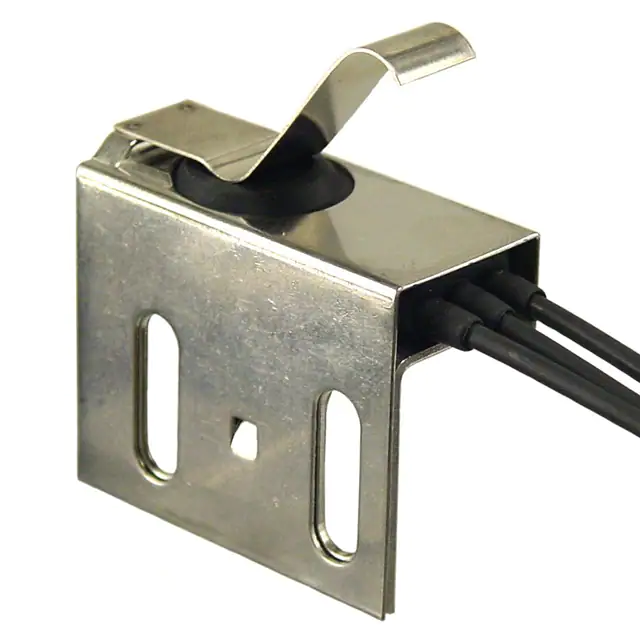

E1092-575SWITCH LIMIT 5A 120V+F7031 |
30 |
|
Datasheet |
E1092 | Bulk | Active | - | - | 5A (AC/DC) | 120 V | 28 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP68 - Dust Tight, Waterproof | - | - | - | - | - | - | - | - |
|

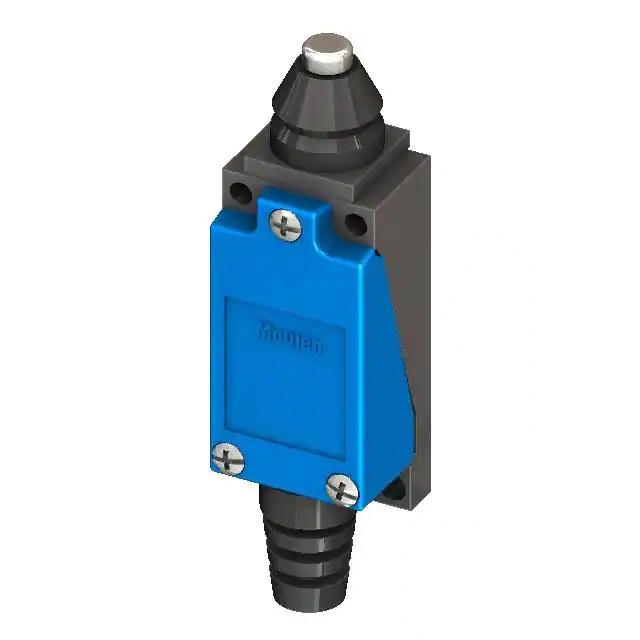

ME-8111SWITCH LIMIT SPDT 5A 250V |
32 |
|
Datasheet |
ME | Tray | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 250 V | 115 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 900gf | 150gf | - | 0.060" (1.5mm) | 0.027" (0.7mm) | 0.157" (4.0mm) | -15°C ~ 70°C |
|

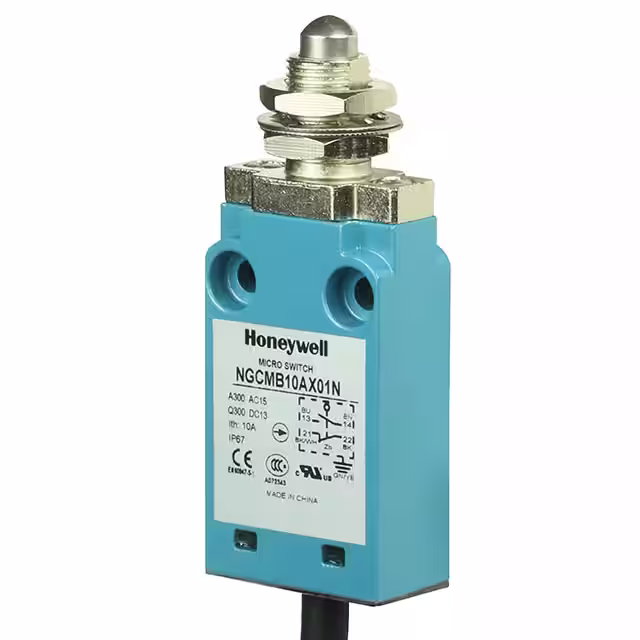

NGCMB10AX01NLIMIT SWITCH |
26 |
|
Datasheet |
NG | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
83241020SWITCH SNAP ACTION DPST 0.1A 30V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 100mA (AC/DC) | 30 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 459gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
