Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

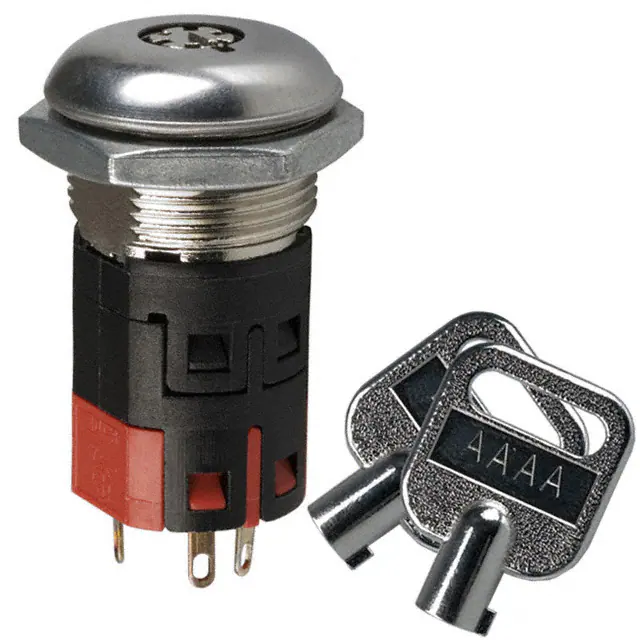

Y101132W203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
132 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Tubular Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | - |
|
Y201132C803NBESWITCH KEYLK 2POS DPDT 0.4VA 20V |
151 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
84829-03SWITCH KEYLOCK 3POS SPDT 20A 12V |
147 |
|
Datasheet |
- | Bulk | Active | SPDT | 3 | Off-On-Mom | Not Specified | 20A (DC) | - | 12 V | Flat Key | Left | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
84828-08SWITCH KEYLOCK 2POS SPST 20A 12V |
437 |
|
Datasheet |
- | Bulk | Active | SPST | 2 | Off-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
|
89697-01SWITCH KEYLOCK 3POS SPDT 20A 12V |
133 |
|
Datasheet |
- | Bulk | Active | SPDT | 3 | Off-On-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Brass | Tin | Panel Mount | Connector | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
89165-01SWITCH KEYLOCK 3POS SPDT 20A 12V |
140 |
|
Datasheet |
- | Bulk | Active | SPDT | 3 | Off-On-Mom | Not Specified | 20A (DC) | - | 12 V | Flat Key | Left | 45° | Brass | Tin | Panel Mount | Connector | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
|
95060SWITCH KEYLOCK 4POS 5A 24V |
149 |
|
Datasheet |
95060 | Bulk | Active | - | 4 | On-Off-On-On | Not Specified | 5A (DC) | - | 24 V | Flat Key | 2 only | 30° | - | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|

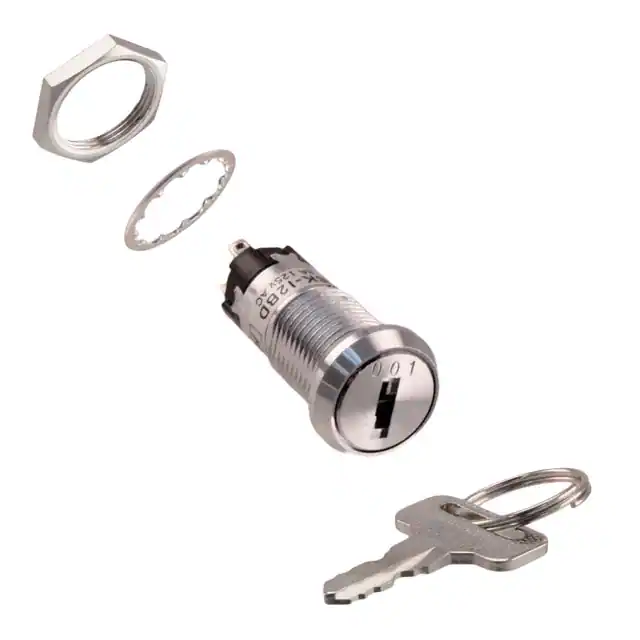

SK12BDW01SWITCH KEYLOCK 2POS SPDT 3A 125V |
219 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 1 only | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

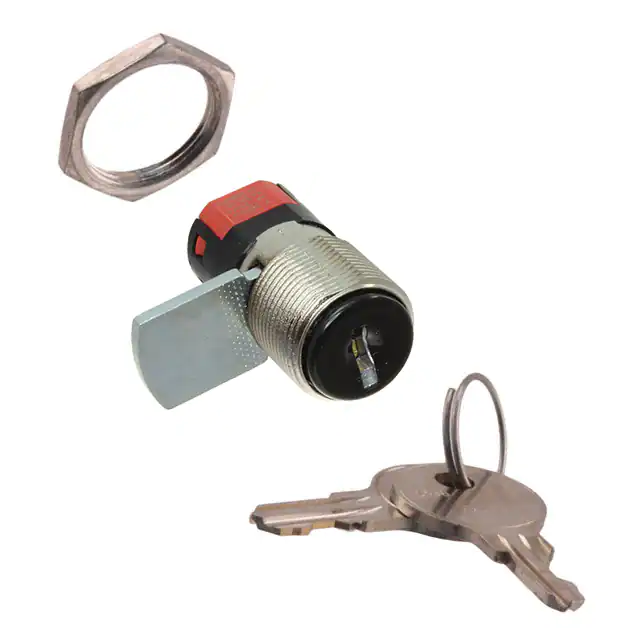

Y1011U2C803LQSWITCH KEYLOCK 2POS SPDT 4A 125V |
861 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Latch Pawl | - |
|

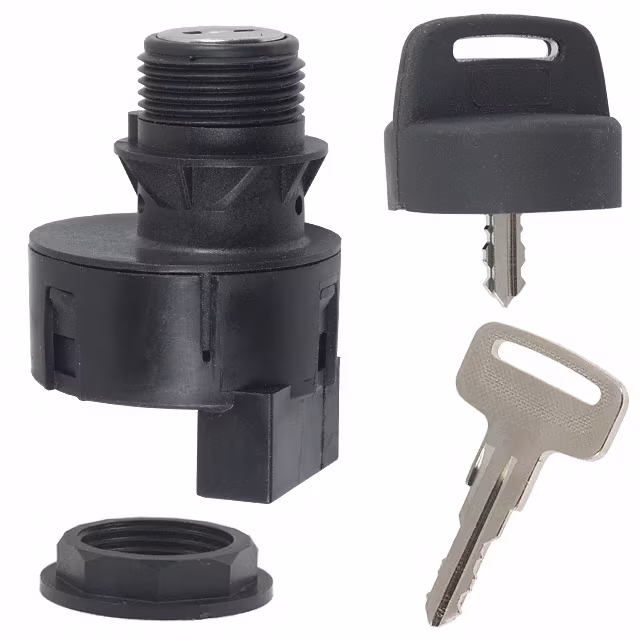

84826-01SWITCH KEYLOCK 3POS SPDT 20A 12V |
288 |
|
Datasheet |
- | Bulk | Active | SPDT | 3 | Off-On-Mom | Not Specified | 20A (DC) | - | 12 V | Flat Key | Left | 45° | Brass | Tin | Panel Mount | Connector | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
A165K-J2MR-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
86 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | Right | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-A2M-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
27 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
|
KO105B1001SWITCH KEYLOCK 2POS SPDT 1A 125V |
996 |
|
Datasheet |
KO | Bulk | Active | SPDT | 2 | On-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|

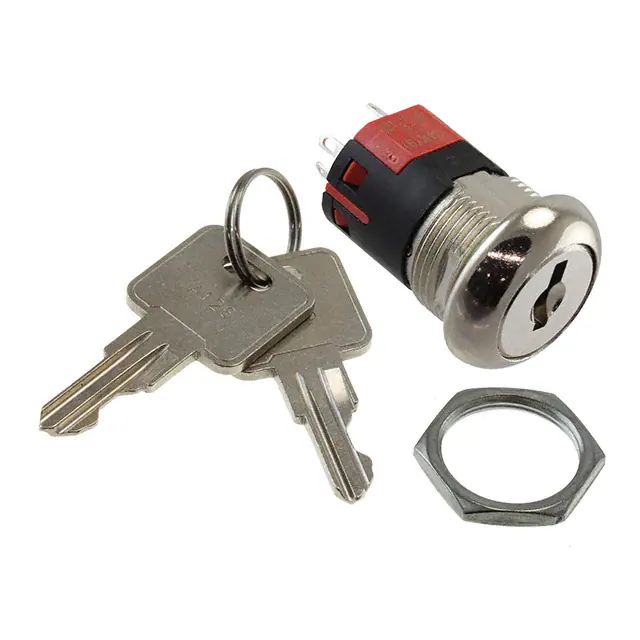

Y1011C2C203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
210 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 2 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
P20113TCM03Q22SWITCH KEYLOCK 2POS DPDT 4A 125V |
107 |
|
Datasheet |
P | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount, Snap-In | Solder Lug | Circular - 20.30mm Dia | - | - |
|
Y1001U2C203DQSWITCH KEYLOCK 3POS SP3T 4A 125V |
151 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|

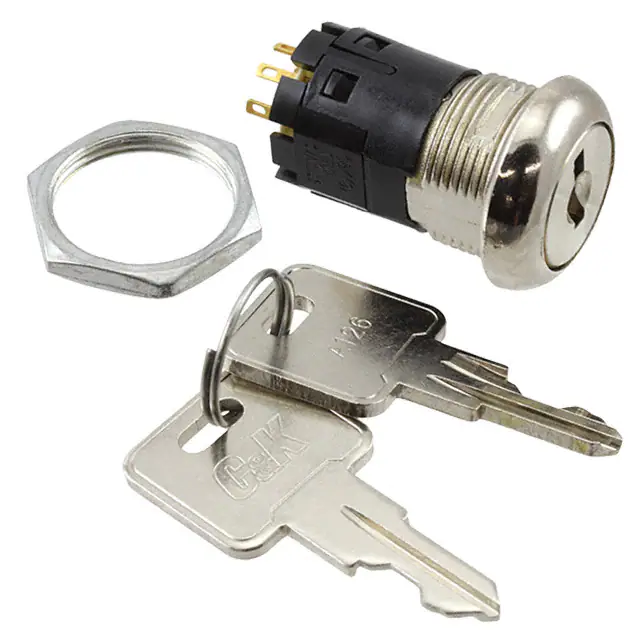

Y1907U2C207NGSWITCH KEYLOCK 3POS SP3T 4A 125V |
205 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
Y1907U2C802NQSWITCH KEYLOCK 3POS SP3T 4A 125V |
137 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | PC Pin | Circular - 19.30mm Dia | - | - |
|
YF211U2C203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
220 |
|
Datasheet |
YF | Bulk | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 11.99mm Dia | Epoxy Sealed Terminals | - |
|
A3151U2A1SZRQESWITCH KEYLK 3POS 3P3T 2.5A 125V |
216 |
|
Datasheet |
A | Tray | Active | 3P3T | 3 | On-On-On | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 and 3 | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
