Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2EDB8259KXUMA1DGTL ISO 2.5KV 2CH GT DVR 13LGA |
3,406 |
|
Datasheet |
EiceDRIVER™ | 13-LGA | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 150V/ns | 38ns, 38ns | - | - | 9A, 5A | 5A, 9A | - | - | - | - | - | - | Surface Mount | 13-LGA (5x5) | UL |
|
|
2EDB9259YXUMA1DGTL ISO 3KV 2CH GATE DVR DSO14 |
2,127 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 3000Vrms | 150V/ns | 38ns, 38ns | - | - | 9A, 5A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-14 | UL |
|
|
2EDB7259YXUMA1DGTL ISO 3KV 2CH GATE DVR DSO14 |
1,375 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 3000Vrms | 150V/ns | 38ns, 38ns | - | - | 9A, 5A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-14 | UL |
|
|
2EDB8259FXUMA1DGTL ISO 3KV 2CH GATE DVR DSO16 |
822 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 3000Vrms | 150V/ns | 38ns, 38ns | - | - | 9A, 5A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-16 | UL |
|
|
2EDB8259YXUMA1DGTL ISO 3KV 2CH GATE DVR DSO14 |
126 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 3000Vrms | 150V/ns | 38ns, 38ns | - | - | 9A, 5A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-14 | UL |
|
STGAP2SMTRDGTL ISO 1.7KV 1CH GATE DVR 8SO |
6,548 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 9.6V ~ 26V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | - |
|
1ED3125MU12FXUMA1DIGITAL ISO 3KV 1CH GT DVR DSO8 |
3,238 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 3000Vrms | 200kV/µs | - | 5ns | 30ns, 30ns (Max) | 4A, 4A | 14A | - | - | 10V ~ 35V | - | - | -40°C ~ 150°C | Surface Mount | PG-DSO-8 | UL |
|
TLP351(F)OPTOISO 3.75KV 1CH GATE DVR 8DIP |
1,752 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Last Time Buy | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.55V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | - |
|
VO3150A-X007TOPTOISO 5.3KV 1CH GATE DVR 8DIP |
2,426 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5300Vrms | 25kV/µs | 400ns, 400ns | 200ns | 100ns, 100ns | 500mA, 500mA | 500mA | 1.3V | 25 mA | 15V ~ 32V | - | - | -40°C ~ 110°C | Through Hole | 8-DIP | cUR, UR |
|
|
2EDR6258XXUMA1DGTL ISO 5.7KV 1CH GT DVR DSO14 |
1,334 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | - | 38ns, 38ns | - | - | 5A, 9A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-14 | UL, VDE |
|
|
2EDR8259XXUMA1DGTL ISO 5.7KV 2CH GT DVR DSO14 |
1,151 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 5700Vrms | 150V/ns | 38ns, 38ns | - | - | 9A, 5A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-14 | UL, VDE |
|
|
2EDR8258XXUMA1DGTL ISO 5.7KV 1CH GT DVR DSO14 |
473 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | - | 38ns, 38ns | - | - | 5A, 9A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-14 | UL, VDE |
|
|
2EDR8259HXUMA1DGTL ISO 5.7KV 2CH GT DVR DSO16 |
235 |
|
Datasheet |
EiceDRIVER™ | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 5700Vrms | 150V/ns | 38ns, 38ns | - | - | 9A, 5A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-16 | UL, VDE |
|
TLP5754H(D4TP4,EOPTOISO 5KV 1CH GATE DVR 6SO |
833 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 4A, 4A | 4A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL, VDE |
|
UCC5320SCDWVRDGTL ISO 3KV 1CH GATE DVR 8SOIC |
1,249 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3000Vrms | 100kV/µs | 75ns, 75ns | 20ns | 12ns, 10ns | 2.4A, 2.2A | 4.3A | - | - | 13.2V ~ 33V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, UR, VDE |
|
|
1ED3124MU12FXUMA1DIGITAL ISO 3KV 1CH GT DVR DSO8 |
695 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 3000Vrms | 200kV/µs | - | 5ns | 30ns, 30ns (Max) | 6A, 6A | 14A | - | - | 10V ~ 35V | - | - | -40°C ~ 150°C | Surface Mount | PG-DSO-8 | UL |
|
UCC23513QDWYRQ1DGTL ISO 5.7KV 1CH GT DVR 6SOIC |
1,635 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 3A, 3.5A | 4.5A, 5.3A | 2.1V | 25 mA | 14V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SOIC | UL, VDE |
|
|
UCC23513BQDWYRQ1DGTL ISO 5.7KV 1CH GT DVR 6SOIC |
1,082 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns (Max) | 3A, 3.5A | 4.5A, 5.3A | 2.1V | 25 mA | 10V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SOIC | UL, VDE |
|
|
2ED3140MC12LXUMA12ED3140MC12LXUMA1 |
1,222 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5700Vrms | 200kV/µs | 40ns, 40ns | - | 20ns, 20ns (Max) | 6A, 6.5A | 6A, 6.5A | - | - | 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-14-71 | UL |
|
|

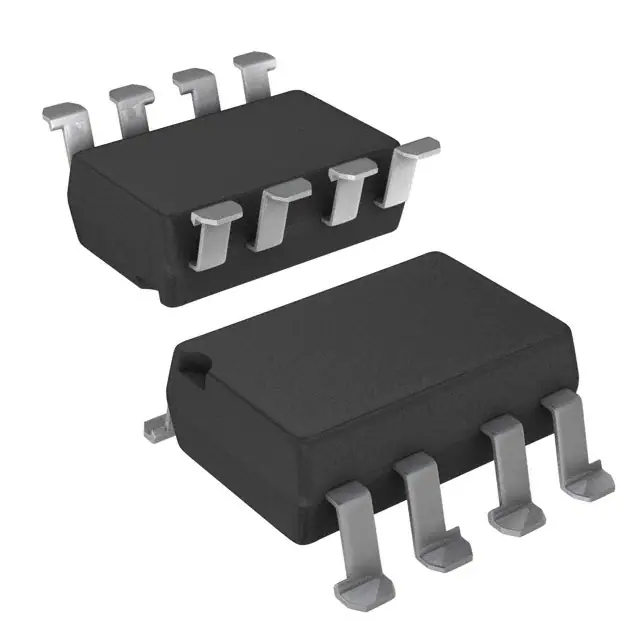

VOD3120AB-TOPTOISO 5.3KV 1CH GATE DVR 8SMD |
2,365 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5300Vrms | 35kV/µs | 500ns, 500ns | 70ns | 35ns, 35ns | 2.5A | 2.5A | 1.37V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SMD | CQC, cUL, UL, VDE |
