High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

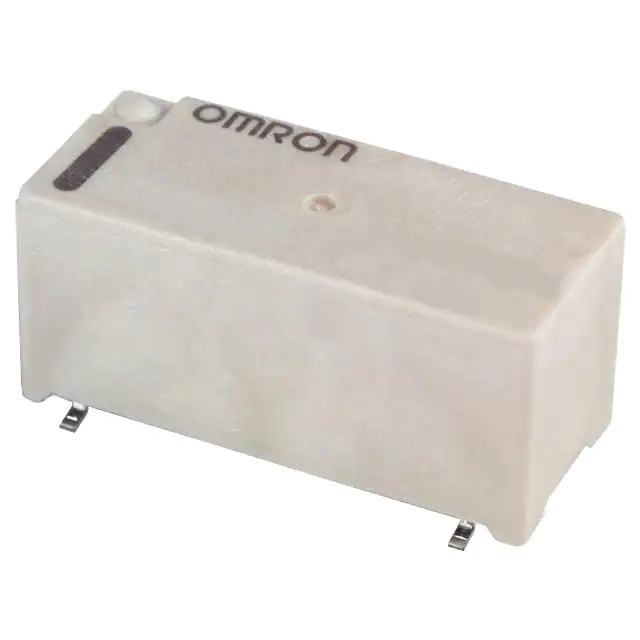

G6Z-1F-R DC5RELAY RF SPDT 10MA 5V |
0 |
|
Datasheet |
G6Z | Tube | Active | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

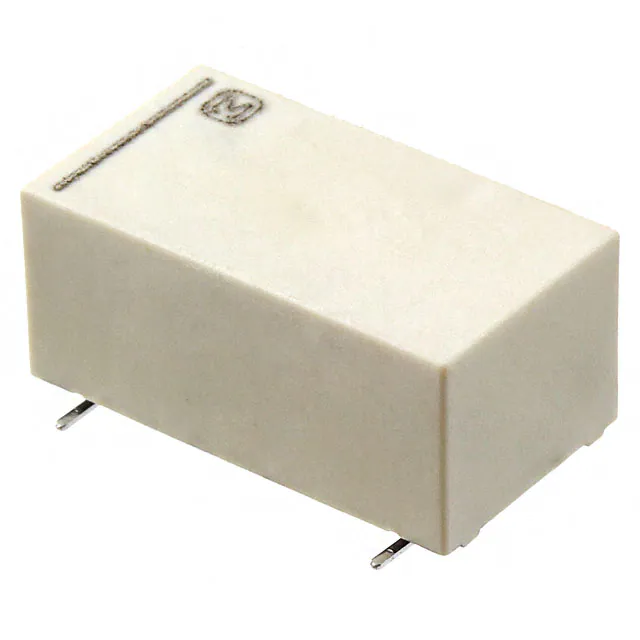

ARE10A12RELAY RF SPDT 500MA 12V |
0 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
9290-12-20RELAY RF SPST-NO 500MA 12V |
0 |
|
Datasheet |
9290 | Bulk | Obsolete | Non Latching | 20 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
9270-05-20TRRELAY RF SPST-NO 500MA 5V |
0 |
|
Datasheet |
9270 | Tape & Reel (TR) | Active | Non Latching | 50 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.5 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 125°C |
|

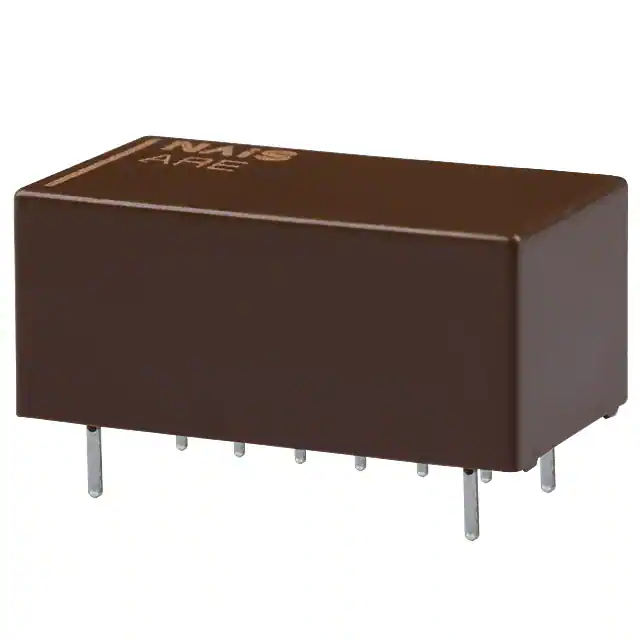

ARE1006RELAY RF SPDT 500MA 6V |
0 |
|
Datasheet |
ARE | Bulk | Obsolete | Non Latching | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | 0.6 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARE1009RELAY RF SPDT 500MA 9V |
0 |
|
Datasheet |
ARE | Bulk | Obsolete | Non Latching | 22.2 mA | 9VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARE1024RELAY RF SPDT 500MA 24V |
0 |
|
Datasheet |
ARE | Bulk | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARE10A06RELAY RF SPDT 500MA 6V |
0 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | 0.6 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE10A09RELAY RF SPDT 500MA 9V |
0 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 22.2 mA | 9VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE10A12ZRELAY RF SPDT 500MA 12V |
0 |
|
Datasheet |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARXP1006RELAY RF SPDT 500MA 6V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Non Latching | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | 0.6 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARXP1009RELAY RF SPDT 500MA 9V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Non Latching | 22.2 mA | 9VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARXP1103RELAY RF SPDT 500MA 3V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Latching, Single Coil | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARXP1106RELAY RF SPDT 500MA 6V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Latching, Single Coil | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARXP1112RELAY RF SPDT 500MA 12V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Latching, Single Coil | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARXP1124RELAY RF SPDT 500MA 24V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Latching, Single Coil | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARXP114HRELAY RF SPDT 500MA 4.5V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Latching, Single Coil | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARXP1206RELAY RF SPDT 500MA 6V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Latching, Dual Coil | 66.7 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARXP1212RELAY RF SPDT 500MA 12V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Latching, Dual Coil | 33.3 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARXP1224RELAY RF SPDT 500MA 24V |
0 |
|
Datasheet |
ARXP | Box | Obsolete | Latching, Dual Coil | 16.7 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
