Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M83446/39-01FFIXED IND 10NH 1.23A 100MOHM SMD |
1,055 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Phenolic | 10 nH | ±20% | 1.23 A | - | Unshielded | 100mOhm Max | 40 @ 50MHz | 1GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
2474R-01LFIXED IND 1UH 6.27A 9 MOHM TH |
1,076 |
|
Datasheet |
2474R | Axial | Bulk | Active | Molded | Ferrite | 1 µH | ±15% | 6.27 A | 6.4A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
HCM1305-100-RFIXED IND 10UH 9A 21.9 MOHM SMD |
800 |
|
Datasheet |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 9 A | 16A | Shielded | 21.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
MPXV1D1770LR47FIXED IND 470NH 52.5A 1 MOHM SMD |
500 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 52.5 A | 108A | Shielded | 1mOhm Max | - | 45MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
MPXV1D1770L4R7FIXED IND 4.7UH 23.5A 4.8MOHM SM |
289 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 23.5 A | 33.5A | Shielded | 4.8mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|

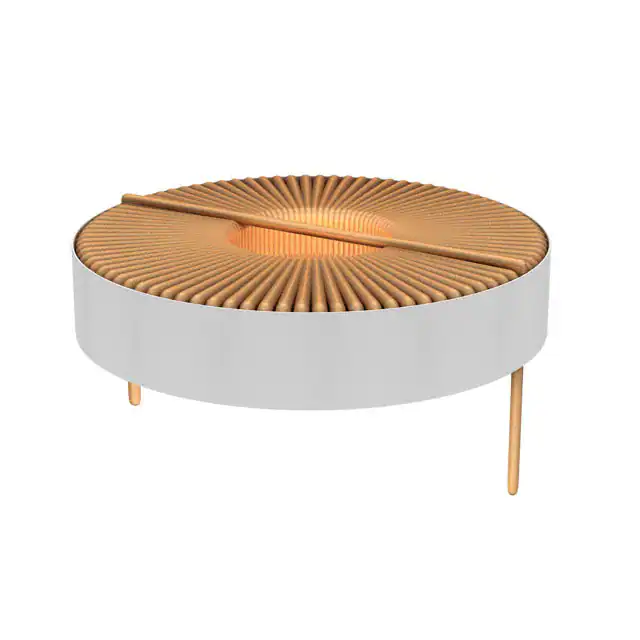

CTX10-2-52LP-RFIXED IND 10UH 4.7A 18.3 MOHM TH |
264 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 4.7 A | 4.5A | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.307" (7.80mm) |
|
|
MPXV1D1740L4R7FIXED IND 4.7UH 14.5A 10.4 MOHM |
200 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 14.5 A | 18.5A | Shielded | 10.4mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
2200LL-391-H-RCFIXED IND 390UH 3.8A 84 MOHM TH |
604 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 390 µH | ±15% | 3.8 A | - | Unshielded | 84mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
|
2200LL-151-H-RCFIXED IND 150UH 4.9A 52 MOHM TH |
459 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 150 µH | ±15% | 4.9 A | - | Unshielded | 52mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
|
2200LL-680-H-RCFIXED IND 68UH 7.6A 22 MOHM TH |
223 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 68 µH | ±15% | 7.6 A | - | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
|
2200LL-100-H-RCFIXED IND 10UH 14.3A 6 MOHM TH |
176 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 10 µH | ±15% | 14.3 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|

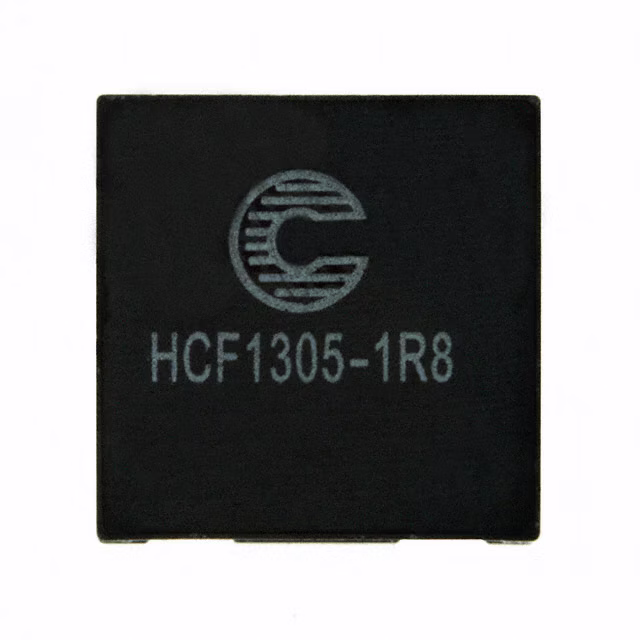

HCF1305-1R8-RFIXED IND 1.8UH 16.3A 3.1MOHM SM |
587 |
|
Datasheet |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 16.3 A | 18A | Unshielded | 3.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
CTX50-2-52M-RFIXED IND 50UH 4.9A 32.6 MOHM TH |
0 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 4.9 A | 4.9A | Unshielded | 32.6mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 0.925" (23.50mm) |
|
AMPLA1707S-100MTFIXED IND 10UH 16.5A 13 MOHM SMD |
0 |
|
Datasheet |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 16.5 A | 29A | Shielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMPLA1707S-470MTFIXED IND 47UH 8.7A 55 MOHM SMD |
188 |
|
Datasheet |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 47 µH | ±20% | 8.7 A | 16A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMPLA1707S-220MTFIXED IND 22UH 12A 26.5 MOHM SMD |
162 |
|
Datasheet |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 22 µH | ±20% | 12 A | 23A | Shielded | 26.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
78439369056WE-XHMA SMT POWER INDUCTOR 1090; |
294 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 5.6 µH | ±20% | 11.5 A | 24.45A | Shielded | 5.9mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
|
78439369082WE-XHMA SMT POWER INDUCTOR 1090; |
246 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 8.2 µH | ±20% | 9.8 A | 20.45A | Shielded | 10mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
|
78439369068WE-XHMA SMT POWER INDUCTOR 1090; |
214 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 10.5 A | 23.25A | Shielded | 7.16mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|

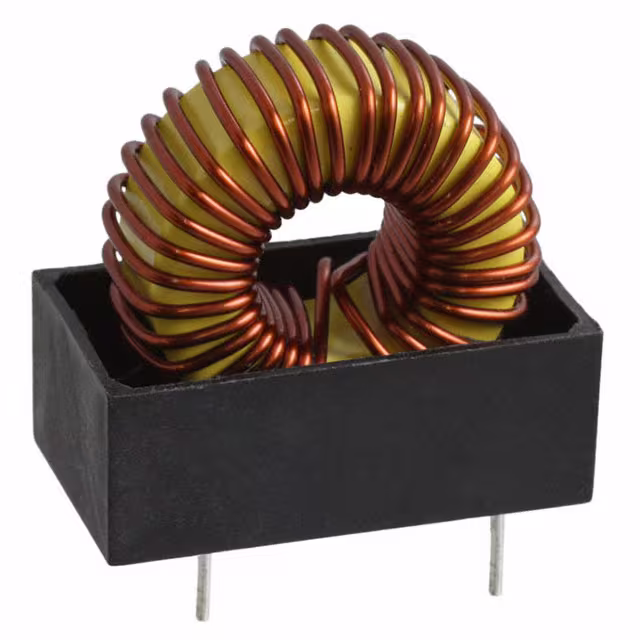

PE-51515NLFIXED IND 52UH 7A 32 MOHM TH |
327 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tube | Active | Toroidal | - | 52 µH | - | 7 A | - | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.440" L x 0.800" W (36.57mm x 20.32mm) | 1.440" (36.57mm) |
