Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447715003FIXED IND 3.3UH 5.9A 13 MOHM SMD |
150 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.9 A | 7.1A | Shielded | 13mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
SD6020-470-RFIXED IND 47UH 610MA 595MOHM SMD |
2,613 |
|
Datasheet |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 610 mA | 540mA | Shielded | 595mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|

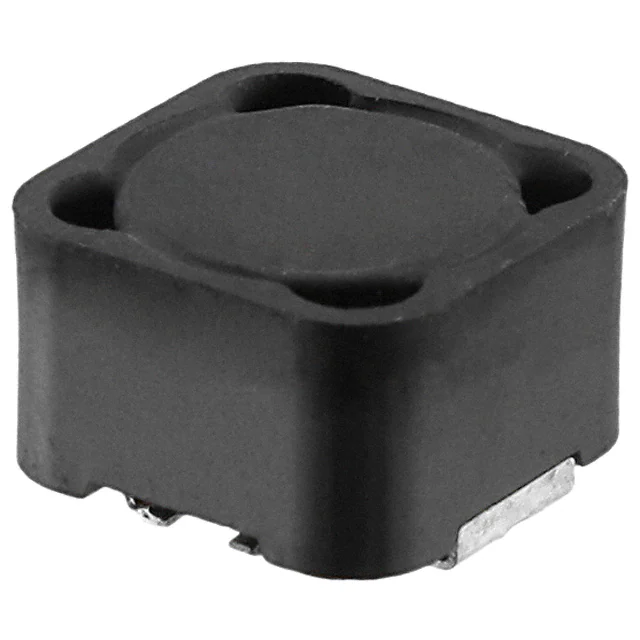

P1172.473NLTFIXED IND 47UH 2.6A 89 MOHM SMD |
1,567 |
|
Datasheet |
P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.6 A | 2.6A | Shielded | 89mOhm Max | - | 7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
|
P1172.103NLTFIXED IND 10UH 5.2A 21.8MOHM SMD |
1,078 |
|
Datasheet |
P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5.2 A | 5.5A | Shielded | 21.8mOhm Max | - | 20MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
P1173.183NLTFIXED IND 18UH 4A 37 MOHM SMD |
1,036 |
|
Datasheet |
P1173NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 4 A | 4.3A | Shielded | 37mOhm Max | - | 13MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
B82464P4683M000FIXED IND 68UH 1.3A 130 MOHM SMD |
735 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 1.45A | Shielded | 130mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464D6302M000FIXED IND 3UH 5.77A 0.024OHM SMD |
598 |
|
Datasheet |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±20% | 5.77 A | 11.75A | Shielded | 24mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
|
B82464D6223M000FIXED IND 22UH 2.66A 0.113OHM SM |
597 |
|
Datasheet |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.66 A | 4.35A | Shielded | 113mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
|
B82464D6472M000FIXED IND 4.7UH 5.08A 0.031OHM |
595 |
|
Datasheet |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.08 A | 9.9A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
|
B82464D6123M000FIXED IND 12UH 3.31A 0.073OHM SM |
594 |
|
Datasheet |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3.31 A | 5.65A | Shielded | 73mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
74454115FIXED IND 15UH 1.7A 0.085OHM SMD |
564 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 15 µH | ±20% | 1.7 A | 3A | Shielded | 85mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
B82464D6473M000FIXED IND 47UH 1.71A 0.274OHM SM |
562 |
|
Datasheet |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.71 A | 2.95A | Shielded | 274mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|

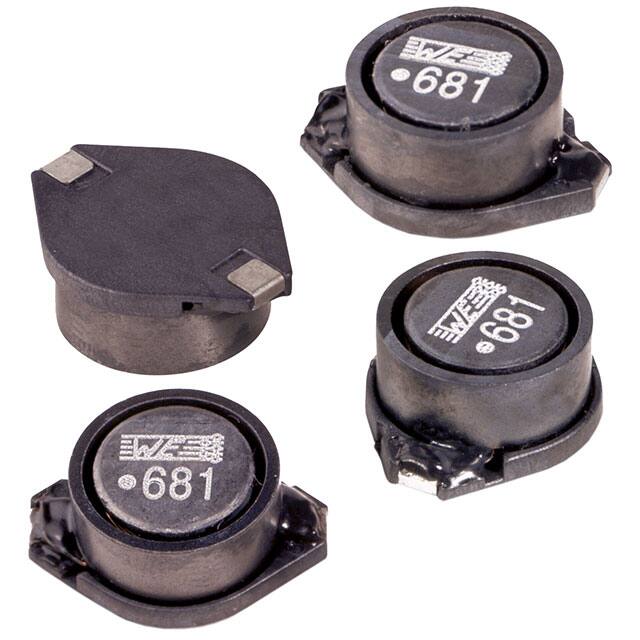

74454133FIXED IND 33UH 1.2A 0.16OHM SMD |
519 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 33 µH | ±15% | 1.2 A | 1.8A | Shielded | 160mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
B82464D6103M000FIXED IND 10UH 3.71A 0.058OHM SM |
390 |
|
Datasheet |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.71 A | 6.15A | Shielded | 58mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
|
74454220FIXED IND 220UH 450MA 0.8OHM SMD |
334 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 220 µH | ±10% | 450 mA | 700mA | Shielded | 800mOhm Max | - | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
PG0434.202NLFIXED IND 2UH 23A 2.9 MOHM SMD |
830 |
|
Datasheet |
PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 2 µH | ±20% | 23 A | 24A | Shielded | 2.9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
|
PG0434.282NLFIXED IND 2.8UH 19A 4.2 MOHM SMD |
830 |
|
Datasheet |
PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 2.8 µH | ±20% | 19 A | 20A | Shielded | 4.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
|
PG0434.401NLFIXED IND 450NH 45A 0.8 MOHM SMD |
830 |
|
Datasheet |
PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 450 nH | ±20% | 45 A | 48A | Shielded | 0.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
PAL6374.121HLTIND POWER BEAD TLVR |
1,470 |
|
Datasheet |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 71 A | 66A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
SNT-S10CMC 1.5UH 3A 2LN TH |
698 |
|
Datasheet |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 1.5 µH | - | 3 A | - | Unshielded | 25mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.197" W (9.50mm x 5.00mm) | 0.500" (12.70mm) |
