Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

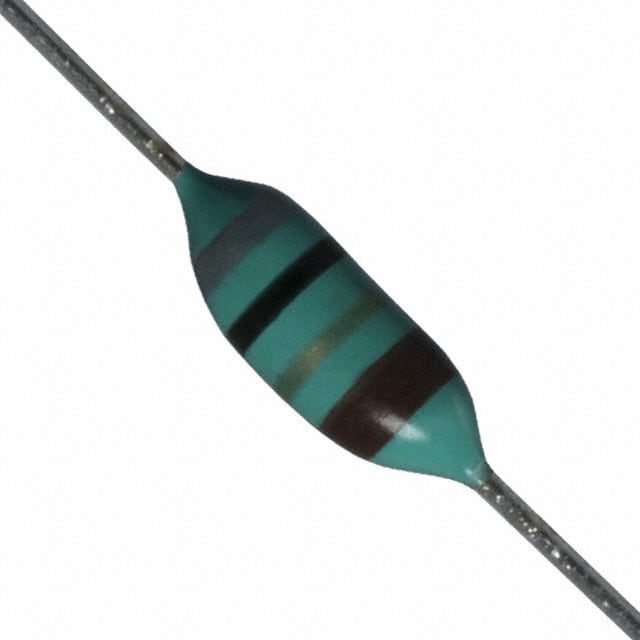

8230-20-RCFIXED IND 1UH 350MA 1 OHM TH |
552 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 1 µH | ±10% | 350 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

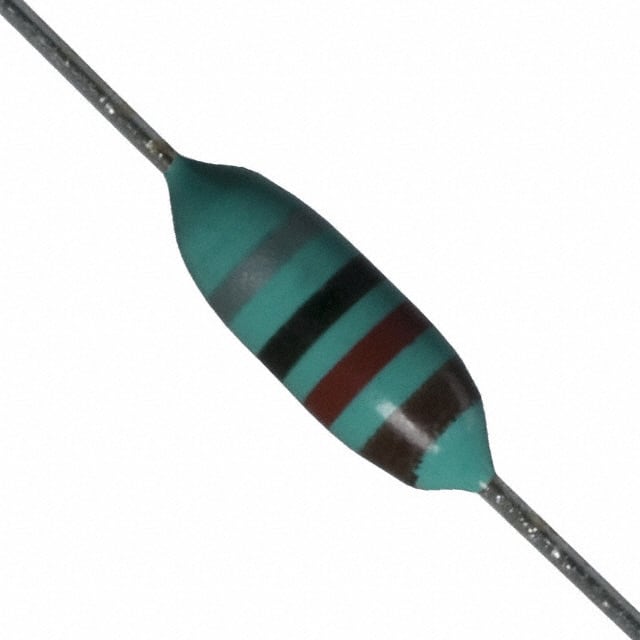

8230-46-RCFIXED IND 12UH 210MA 2.7 OHM TH |
461 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 210 mA | - | Unshielded | 2.7Ohm Max | 45 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
74456233FIXED IND 330UH 700MA 1.15OHM SM |
385 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 700 mA | 800mA | Unshielded | 1.15Ohm Max | - | 3.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|

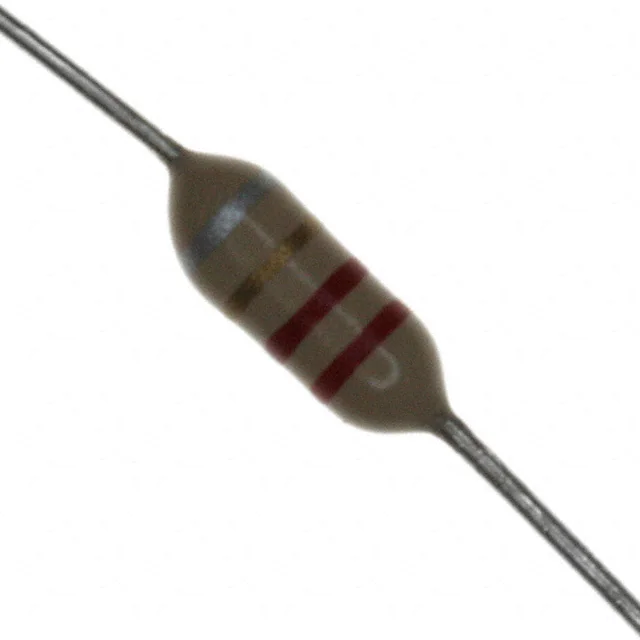

8230-28-RCFIXED IND 2.2UH 550MA 400MOHM TH |
183 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 550 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
MPC0730LR20CFIXED IND 200NH 23A 1.2 MOHM SMD |
0 |
|
Datasheet |
MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±25% | 23 A | 17.5A | Shielded | 1.2mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.157" (4.00mm) |
|
UP1B-331-RFIXED IND 330UH 280MA 3.1OHM SMD |
521 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 280 mA | 310mA | Unshielded | 3.1Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
SBCP-87HY330HFIXED IND 33UH 1.5A 120 MOHM TH |
1,993 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.5A | Unshielded | 120mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
SBC6-682-181FIXED IND 6.8MH 180MA 8.92OHM TH |
964 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 180 mA | 420mA | Unshielded | 8.92Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
|
SBC6-103-161FIXED IND 10MH 160MA 13.6 OHM TH |
578 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 160 mA | 350mA | Unshielded | 13.6Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
B82477P2682M000FIXED IND 6.8UH 4.8A 20 MOHM SMD |
498 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.8 A | 4.8A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SBCP-87HY331HFIXED IND 330UH 500MA 920MOHM TH |
437 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 500 mA | 470mA | Unshielded | 920mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
B82477P2102M000FIXED IND 1UH 9.25A 8 MOHM SMD |
377 |
|
Datasheet |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 9.25 A | 10A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
PG0936.253NLFIXED IND 25UH 7A 19.4 MOHM SMD |
950 |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 25 µH | ±20% | 7 A | 9.2A | Unshielded | 19.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
MPCH1060LR45FIXED IND 450NH 32A 0.76MOHM SMD |
3,324 |
|
Datasheet |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 450 nH | ±20% | 32 A | 32A | Shielded | 0.76mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.394" W (12.00mm x 10.00mm) | 0.236" (6.00mm) |
|
P1170.223NLTFIXED IND 22UH 3A 45 MOHM SMD |
1,733 |
|
Datasheet |
P1170NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3 A | 3A | Shielded | 45mOhm Max | - | 14MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
|
P1171.223NLTFIXED IND 22UH 3A 45 MOHM SMD |
1,149 |
|
Datasheet |
P1171NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3 A | 3A | Shielded | 45mOhm Max | - | 14MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
MPXV1D0650L3R3FIXED IND 3.3UH 8.7A 18.9MOHM SM |
944 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 8.7 A | 8A | Shielded | 18.9mOhm Max | - | 26MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
SLF12565T-2R0N6R2-HFIXED IND 2UH 6.2A 9.6 MOHM SMD |
935 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2 µH | ±30% | 6.2 A | 10A | Shielded | 9.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
MPXV1D0650L4R7FIXED IND 4.7UH 6.7A 32MOHM SMD |
862 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 6.7 A | 6.5A | Shielded | 32mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
MPX1D1235L4R7FIXED IND 4.7UH 10.9A 16.4 MOHM |
543 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 10.9 A | 17.5A | Shielded | 16.4mOhm Max | - | 14MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
