Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1250-1R8MFIXED IND 1.8UH 21A 4.7 MOHM SMD |
626 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1.8 µH | ±20% | 21 A | 40A | Shielded | 4.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|

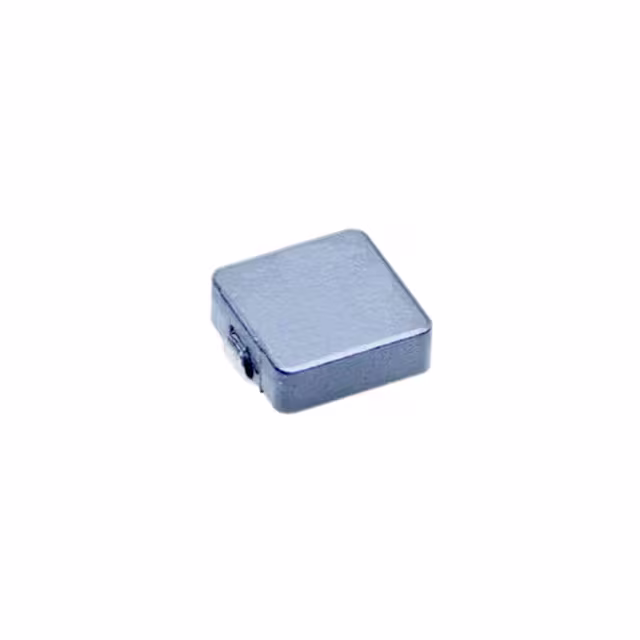

HCMA1104-R90-RFIXED IND 900NH 22A 2.5 MOHM SMD |
622 |
|
Datasheet |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 900 nH | ±20% | 22 A | 28A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
EST1060T3R3NDGAFIXED IND 3.3UH 6.5A 12MOHM SMD |
499 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.5 A | 7A | Shielded | 12mOhm Max | - | 43MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
EST1060T151MDGAFIXED IND 150UH 1.2A 295MOHM SMD |
498 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.2 A | 1.2A | Shielded | 295mOhm Max | - | 3.9MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
SRP1250-R22MFIXED IND 220NH 45A 1 MOHM SMD |
445 |
|
Datasheet |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 220 nH | ±20% | 45 A | 80A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
EST1060T150MDGAFIXED IND 15UH 3.6A 37 MOHM SMD |
245 |
|
Datasheet |
ES, T Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.6 A | 3.7A | Shielded | 37mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|

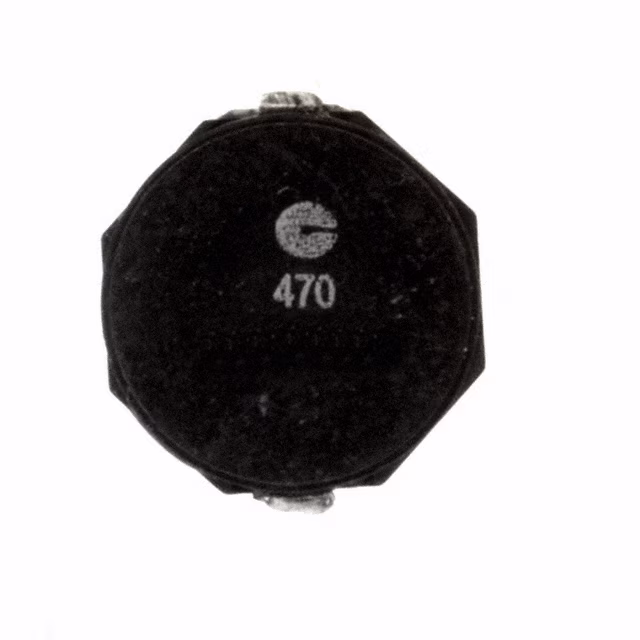

SD8350-470-RFIXED IND 47UH 1.3A 150 MOHM SMD |
13,025 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.3 A | 1.8A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|

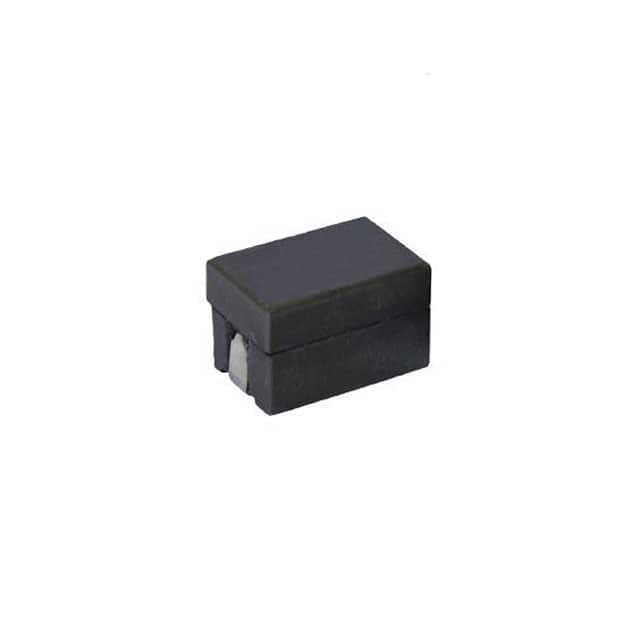

FP1108R1-R21-RFIXED IND 210NH 65A 0.29MOHM SMD |
1,913 |
|
Datasheet |
FP1108 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 210 nH | ±10% | 65 A | 55A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.303" W (10.70mm x 7.70mm) | 0.295" (7.50mm) |
|
BMRF00131350100MA1INDUCTOR POWER |
1,494 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 7 A | 13A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.197" (5.00mm) |
|
HCM1A1104V2-330-RFIXED IND 33UH 3.3A 102MOHM SMD |
1,316 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 3.3 A | 4.6A | Shielded | 102mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
MWLA1265S-1R0MTFIXED IND 1UH 2.3MOHM 48000MA |
990 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 30 A | 48A | Shielded | 2.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MWLA1004S-5R6MTFIXED IND 5.6UH 19.3MOHM 14000MA |
848 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 9 A | 14A | Shielded | 19.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

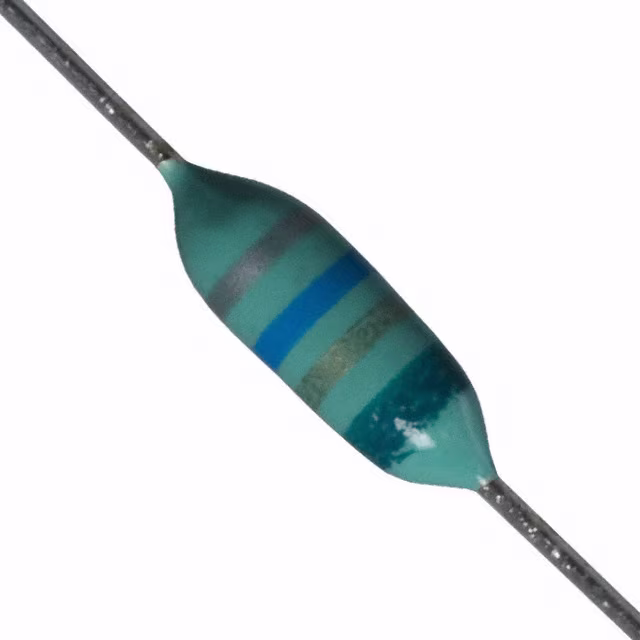

8230-38-RCFIXED IND 5.6UH 260MA 1.8 OHM TH |
770 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 260 mA | - | Unshielded | 1.8Ohm Max | 50 @ 7.9MHz | 68MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
MWSA1205S-R36MTFIXED IND 360NH 42A 0.85MOHM SMD |
664 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 360 nH | ±20% | 42 A | 50A | Shielded | 0.85mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
MWLA1235S-1R0MTFIXED IND 1UH 3.5MOHM 40000MA |
480 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 24 A | 40A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
MWLA1004S-100MTFIXED IND 10UH 30MOHM 12000MA |
315 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 7.5 A | 12A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
HCMA1104-R56-RFIXED IND 560NH 25A 1.8 MOHM SMD |
261 |
|
Datasheet |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 560 nH | ±20% | 25 A | 32A | Shielded | 1.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWLA1004S-3R3MTFIXED IND 3.3UH 11.8MOHM 20000MA |
261 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 11 A | 20A | Shielded | 11.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWLA1004S-R22MTFIXED IND 0.22UH 1MOHM 60000MA |
259 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±20% | 35 A | 60A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MWLA1004S-220MTFIXED IND 22UH 74MOHM 7000MA |
254 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 5 A | 7A | Shielded | 74mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
