Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1806-470MFIXED IND 47UH 2A 110 MOHM SMD |
321 |
|
Datasheet |
SRR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2 A | 4.2A | Shielded | 110mOhm | 40 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|
SRU8045A-220YFIXED IND 22UH 2.25A 122MOHM SMD |
283 |
|
Datasheet |
SRU8045A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.25 A | 2.15A | Shielded | 122mOhm Max | 18 @ 2.52MHz | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.189" (4.80mm) |
|
VLCF5024T-2R7N1R5-2FIXED IND 2.7UH 1.53A 31MOHM SMD |
246 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 1.53 A | 1.53A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.094" (2.40mm) |
|
MWLA0624S-R82MTFIXED IND 0.82UH 9.5MOHM 17000MA |
204 |
|
Datasheet |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 820 nH | ±20% | 11 A | 17A | Shielded | 9.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
MPXV1D0520L4R7FIXED IND 4.7UH 3.4A 96.6MOHM SM |
112 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 3.4 A | 4.5A | Shielded | 96.6mOhm Max | - | 26MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
SRR1050A-270YFIXED IND 27UH 2.6A 77 MOHM SMD |
101 |
|
Datasheet |
SRR1050A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±30% | 2.6 A | 2.7A | Shielded | 77mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|

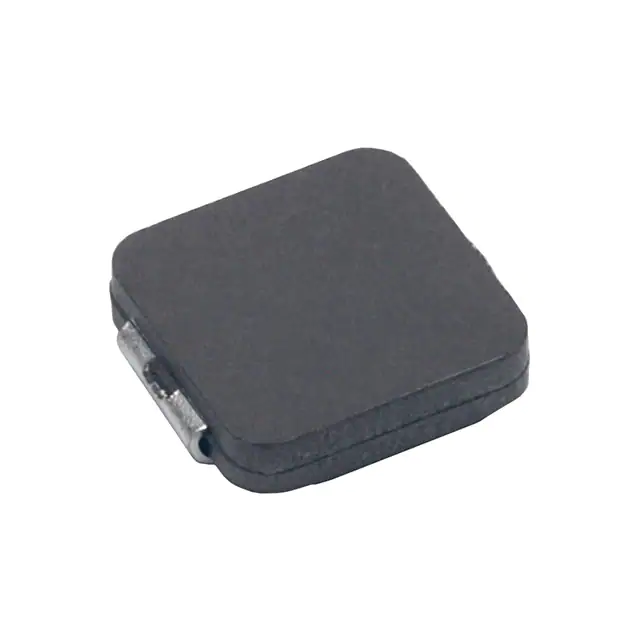

MPX1D0618L4R7FIXED IND 4.7UH 3.4A 83.4MOHM SM |
5,052 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 3.4 A | 6A | Shielded | 83.4mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|

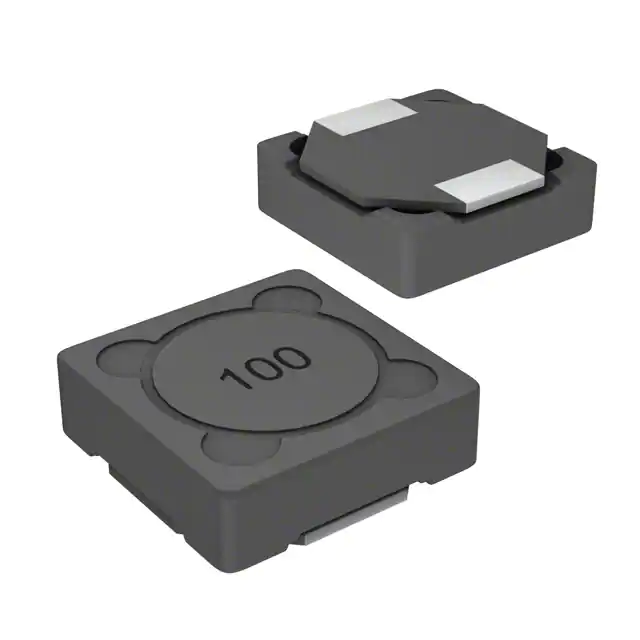

SRR1240-181KFIXED IND 180UH 980MA 550MOHM SM |
1,337 |
|
Datasheet |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 980 mA | 950mA | Shielded | 550mOhm Max | 12 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

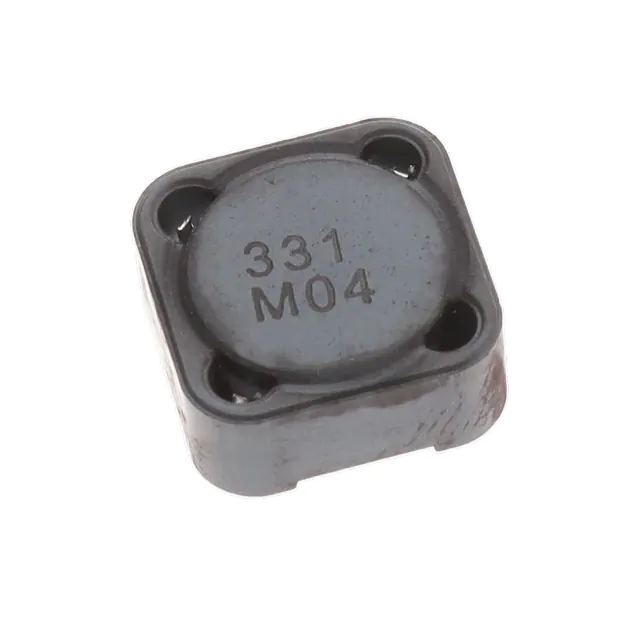

CDRH125L125NP-331MCFIXED IND 330UH 900MA 674MOHM SM |
1,211 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 900 mA | 900mA | Shielded | 674mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH3D16NP-150NCFIXED IND 15UH 450MA 295MOHM SMD |
1,166 |
|
Datasheet |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 450 mA | - | Shielded | 295mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
SRU8045A-4R7YFIXED IND 4.7UH 4.6A 27.5MOHM SM |
1,162 |
|
Datasheet |
SRU8045A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.6 A | 4.4A | Shielded | 27.5mOhm Max | 10 @ 7.96MHz | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.189" (4.80mm) |
|
|
MPXV1D0630LR47FIXED IND 470NH 18.7A 4 MOHM SMD |
902 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 18.7 A | 21A | Shielded | 4mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
CDRH125L125NP-681MCFIXED IND 680UH 650MA 1.22OHM SM |
846 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±20% | 650 mA | 620mA | Shielded | 1.22Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
EXLA1V0707-3R3-RIND MOLDED SHLD 3.3UH 11.5A |
817 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 15.1 A | 15.1A | Shielded | 9.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
|
MPXV1D0630L4R7FIXED IND 4.7UH 6.2A 36.7MOHM SM |
800 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 6.2 A | 6.5A | Shielded | 36.7mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPXV1D0630L6R8FIXED IND 6.8UH 5.2A 50.9MOHM SM |
690 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.2 A | 5.5A | Shielded | 50.9mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPXV1D0630L1R0FIXED IND 1UH 13.1A 8.2 MOHM SMD |
675 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 13.1 A | 13A | Shielded | 8.2mOhm Max | - | 43MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
CDRH125L125NP-1R8NCFIXED IND 1.8UH 8A 10.6MOHM SMD |
490 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±30% | 8 A | 12.6A | Shielded | 10.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
MPXV1D0630LR15FIXED IND 150NH 27.6A 1.9MOHM SM |
485 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 150 nH | ±20% | 27.6 A | 40A | Shielded | 1.9mOhm Max | - | 130MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
CDRH125L125NP-1R2NCFIXED IND 1.2UH 9A 8.5 MOHM SMD |
485 |
|
Datasheet |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±30% | 9 A | 14.2A | Shielded | 8.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
