Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18ASR18G0CDFIXED IND 180NH 240MA 1.4OHM SMD |
3,954 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 180 nH | ±2% | 240 mA | - | Unshielded | 1.4Ohm Max | 25 @ 100MHz | 990MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

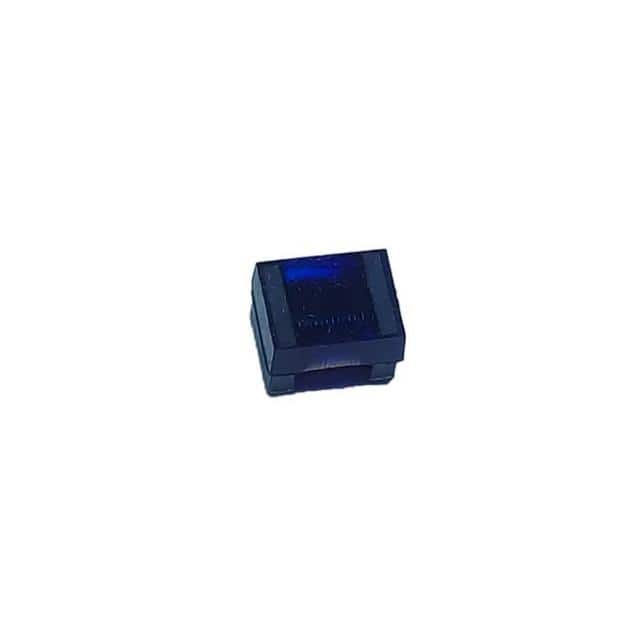

WCLA3225V1-330-RCHIP IND 33.0UH 0.285A SMT 2 PA |
3,906 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±10% | 285 mA | - | Unshielded | 1.5Ohm Max | 10 @ 2.52MHz | 12MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
CW252016-R33GFIXED IND 330NH 500MA 1.05OHM SM |
3,780 |
|
Datasheet |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 500 mA | - | Unshielded | 1.05Ohm Max | 45 @ 100MHz | 570MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
WCLA3225V1-3R3-RCHIP IND 3.3UH 0.775A SMT 2 PAD |
3,490 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±10% | 775 mA | - | Unshielded | 220mOhm Max | 10 @ 7.96MHz | 64MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
LQW18AS56NG0CDFIXED IND 56NH 600MA 310MOHM SMD |
3,448 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 56 nH | ±2% | 600 mA | - | Unshielded | 310mOhm Max | 38 @ 200MHz | 1.9GHz | - | -40°C ~ 85°C | 200 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LCXND5050KKT220MMGFIXED IND 22UH 450MA 720MOHM SMD |
2,000 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 450 mA | 550mA | Unshielded | 600mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
LCXND5050KKT150MMGFIXED IND 15UH 650MA 480MOHM SMD |
2,000 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 650 mA | 680mA | Unshielded | 400mOhm | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
LCXND5050KKT6R8MMGFIXED IND 6.8UH 1A 222 MOHM SMD |
2,000 |
|
Datasheet |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 1A | Unshielded | 185mOhm | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
|
WCLA3225V1-6R8-RCHIP IND 6.8UH 0.66A SMT 2 PAD |
1,997 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 660 mA | - | Unshielded | 300mOhm Max | 10 @ 7.96MHz | 34MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-1R5-RCHIP IND 1.5UH 1.0A SMT 2 PAD |
1,955 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±10% | 1 A | - | Unshielded | 130mOhm Max | 10 @ 7.96MHz | 260MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-151-RCHIP IND 150UH 0.14A SMT 2 PAD |
1,895 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±10% | 140 mA | - | Unshielded | 6.55Ohm Max | 10 @ 1MHz | 5MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-331-RCHIP IND 330UH 0.098A SMT 2 PAD |
1,830 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±10% | 98 mA | - | Unshielded | 13.7Ohm Max | 10 @ 1MHz | 2.8MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-680-RCHIP IND 68.0UH 0.235A SMT 2 PA |
1,825 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±10% | 235 mA | - | Unshielded | 2.29Ohm Max | 10 @ 2.52MHz | 9MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-221-RCHIP IND 202UH 0.115A SMT 2 PAD |
1,800 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±10% | 115 mA | - | Unshielded | 8.23Ohm Max | 10 @ 1MHz | 4MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-390-RCHIP IND 39.0UH 0.27A SMT 2 PAD |
1,499 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±10% | 270 mA | - | Unshielded | 1.66Ohm Max | 10 @ 2.52MHz | 12MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
|
WCLA3225V1-220-RCHIP IND 22.0UH 0.4A SMT 2 PAD |
1,334 |
|
Datasheet |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 400 mA | - | Unshielded | 820mOhm Max | 10 @ 2.52MHz | 16MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
744761056CFIXED IND 5.6NH 700MA 190MOHM SM |
1,129 |
|
Datasheet |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 700 mA | - | Unshielded | 190mOhm Max | 16 @ 250MHz | 5.7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
744764002FIXED IND 220NH 450MA 320MOHM SM |
1,050 |
|
Datasheet |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 450 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 660MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
.jpg)
|
B82422A3121K100FIXED IND 120NH 400MA 320MOHM SM |
1,026 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±10% | 400 mA | - | Unshielded | 320mOhm Max | 22 @ 30MHz | 880MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
PF0580.123NLFIXED IND 12UH 1A 160 MOHM SMD |
5,660 |
|
Datasheet |
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 12 µH | ±15% | 1 A | 1A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
