0Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDMK2020T1R0MMVFIXED IND 1UH 1.9A 64 MOHM SMD |
4,924 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 1.9 A | 2.9A | Shielded | 64mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
HLQ022R2BTTRFIXED IND 2.2NH 245MA 200MOHM SM |
4,667 |
|
Datasheet |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.2 nH | ±0.1nH | 245 mA | - | Unshielded | 200mOhm Max | 17 @ 450MHz | 7GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
|
MDMK2020T3R3MMVFIXED IND 3.3UH 178 MOHM SMD |
4,327 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | - | - | Shielded | 178mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
BWVS006060281R5T00INDUCTOR POWER |
3,000 |
|
Datasheet |
BWVS | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 4.32 A | 5.67A | Shielded | 16mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
BPSD000605454R7K00FIXED IND 4.7UH 37.2 MOHM SMD |
2,905 |
|
Datasheet |
BPSD | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±10% | - | 2.3A | Unshielded | 37.2mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
SDCHA1V5020-1R5-RIND SMD POWER 1.5UH 3.5A |
2,505 |
|
Datasheet |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 1.5 µH | ±30% | 3.5 A | 4.5A | Shielded | 25mOhm | - | 100MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
MDKK2020T1R0MMVFIXED IND 1UH 1.9A 85 MOHM SMD |
2,400 |
|
Datasheet |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 1.9 A | 2.9A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW15CN53NJ1ZDFIXED IND 53NH 1.3A 0.06OHM SMD |
2,347 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 53 nH | ±5% | 1.3 A | - | Unshielded | 60mOhm Max | - | 2GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
SRN3015C-R24MIND,3X3X1.3MM,0.24UH20%,5A,SHD |
2,000 |
|
Datasheet |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 240 nH | ±20% | 5 A | 6A | Shielded | 16mOhm Max | 3 @ 100MHz | 220MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXBD6060MKT5R3MEFIXED IND 5.3UH 1.4A 150MOHM SMD |
2,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 5.3 µH | ±20% | 1.4 A | 1.5A | Shielded | 125mOhm | - | 34MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LSXBD6060MKT6R8MEFIXED IND 6.8UH 1.18A 198MOHM SM |
2,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 1.18 A | 1.3A | Shielded | 165mOhm | - | 30MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|

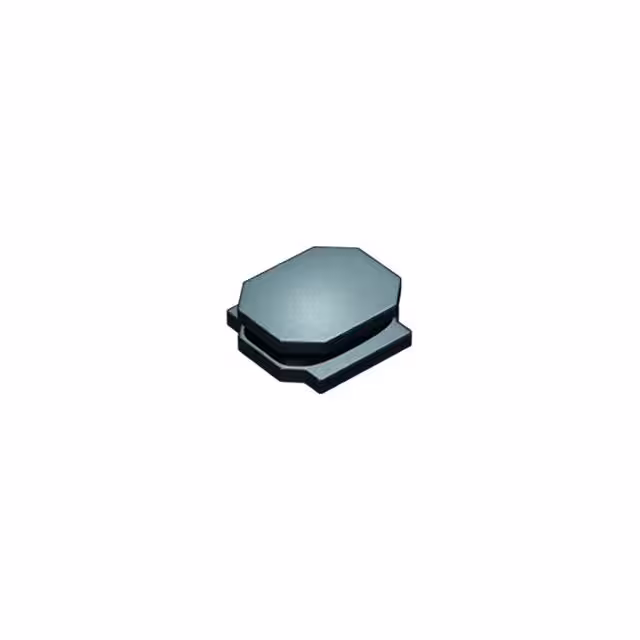

LSXBD6060MKT330MEFIXED IND 33UH 530MA 840MOHM SMD |
2,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 33 µH | ±20% | 530 mA | 590mA | Shielded | 700mOhm | - | 8MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
SRN3015C-R47MIND,3X3X1.3MM,0.47UH20%,3.7A,SHD |
1,995 |
|
Datasheet |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±20% | 3.7 A | 4.3A | Shielded | 22mOhm Max | 10 @ 100MHz | 160MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015C-R68MIND,3X3X1.3MM,0.68UH20%,3.5A,SHD |
1,950 |
|
Datasheet |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±20% | 3.5 A | 3.8A | Shielded | 28mOhm Max | 10 @ 100MHz | 130MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
VLS2012ET-1R0N-CAFIXED IND 1UH 1.65A 86 MOHM SMD |
1,949 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.65 A | 1.45A | Shielded | 86mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
PA4337.471NLTFIXED IND 470NH 6.5A 8 MOHM SMD |
1,914 |
|
Datasheet |
PA4337.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 470 nH | ±30% | 6.5 A | 15A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN3015C-1R5MIND,3X3X1.3MM,1.5UH20%,2.7A,SHD |
1,885 |
|
Datasheet |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±20% | 2.7 A | 2.4A | Shielded | 43mOhm Max | 10 @ 100MHz | 90MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS2010ET-4R7M-CAFIXED IND 4.7UH 790MA 408MOHM SM |
1,882 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 790 mA | 700mA | Shielded | 408mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
SPH3012H100MTY01FIXED IND 10UH 900MA 495MOHM SMD |
1,800 |
|
Datasheet |
SPH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 1.1A | Shielded | 495mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS2010ET-1R5N-CAFIXED IND 1.5UH 1.25A 156MOHM SM |
1,789 |
|
Datasheet |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.25 A | 1.2A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
