Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWPA252012S100MTFIXED IND 10UH 620MA 690MOHM SMD |
3,947 |
|
Datasheet |
SWPA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 620 mA | 880mA | Shielded | 690mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
ASPI-U201610-R33M-TFIXED INDUCTOR 330NH 4.1A SMD |
3,940 |
|
Datasheet |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
BDQQ001412FE1R0MCAINDUCTOR PWR MOLDED 1UH 2A |
3,830 |
|
Datasheet |
BDQQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 1.5 A | 2A | Unshielded | 88mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | - | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.026" (0.65mm) |
|
NR3010T330MFIXED IND 33UH 275MA 1.86OHM SMD |
3,750 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 275 mA | 260mA | Shielded | 1.86Ohm Max | - | 20MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
NR3010T6R8MFIXED IND 6.8UH 630MA 360MOHM SM |
3,500 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 630 mA | 610mA | Shielded | 360mOhm Max | - | 46MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
BDQQ001412FER47MCAINDUCTOR PWR MOLDED 0.47UH 3A |
3,399 |
|
Datasheet |
BDQQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 2.6 A | 3A | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | - | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.026" (0.65mm) |
|
|
BDQQ001412FER33MCAINDUCTOR PWR MOLDED 0.33UH 5A |
3,221 |
|
Datasheet |
BDQQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 3 A | 5A | Unshielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | - | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.026" (0.65mm) |
|
CC453232-5R6KLFIXED IND 5.6UH 650MA 300MOHM SM |
3,110 |
|
Datasheet |
CC453232 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 650 mA | - | Unshielded | 300mOhm Max | 10 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
LSXND5050MKT3R3MMGFIXED IND 3.3UH 1.45A 192MOHM SM |
2,000 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.45 A | 2.4A | Shielded | 192mOhm Max | - | 48MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
NRS6020T2R2NMGJFIXED IND 2.2UH 2.9A 40.8MOHM SM |
1,731 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.9 A | 3.2A | Shielded | 40.8mOhm Max | - | 73MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LQW18CN85NJ0ZDFIXED IND 85NH 1.4A 60 MOHM SMD |
1,521 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 85 nH | ±5% | 1.4 A | - | Unshielded | 60mOhm Max | - | 1.38GHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LSXND5050PKT6R8MMGFIXED IND 6.8UH 1.2A 150MOHM SMD |
1,440 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.2 A | 1.6A | Shielded | 180mOhm Max | - | 33MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|

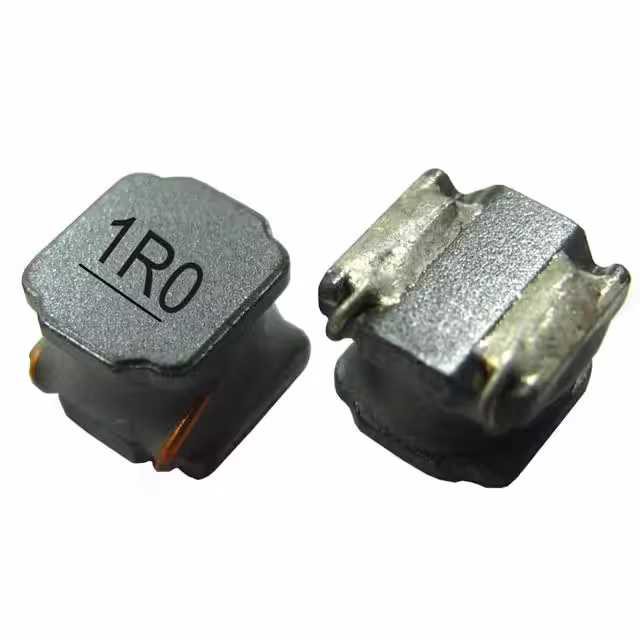

AWVF00252012100M00FIXED IND 10UH 700MA 385MOHM SMD |
14,381 |
|
Datasheet |
AWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 700 mA | 880mA | Shielded | 385mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
ASPI-2515-6R8M-T2FIXED IND 6.8UH 900MA 295MOHM SM |
13,211 |
|
Datasheet |
ASPI-2515 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 900 mA | 950mA | Shielded | 295mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
IFSC1111ABER220M01FIXED IND 22UH 670MA 756MOHM SMD |
11,188 |
|
Datasheet |
IFSC-1111AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 670 mA | 550mA | Shielded | 756mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.114" L x 0.114" W (2.90mm x 2.90mm) | 0.051" (1.30mm) |
|
LQW04AN0N8D00DFIXED IND 0.8NH 1.8A 20MOHM SMD |
10,000 |
|
Datasheet |
LQW04 | 0302 (0804 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 0.8 nH | ±0.5nH | 1.8 A | - | Unshielded | 20mOhm Max | 23 @ 250MHz | 20GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.018" (0.45mm) |
|
LSXBD4040KKL2R2NFIXED IND 2.2UH 890MA 180MOHM SM |
10,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2.2 µH | ±30% | 890 mA | 1.15A | Shielded | 150mOhm | - | 73MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXBD4040KKL1R0NFIXED IND 1UH 1.05A 120 MOHM SMD |
10,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1 µH | ±30% | 1.05 A | 1.8A | Shielded | 100mOhm | - | 116MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXBD4040KKL3R3MFIXED IND 3.3UH 820MA 216MOHM SM |
10,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3.3 µH | ±20% | 820 mA | 1.1A | Shielded | 180mOhm | - | 58MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXBD4040KKL470MFIXED IND 47UH 280MA 2.172OHM SM |
10,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 280 mA | 240mA | Shielded | 1.81Ohm | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
