Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTSPT30LF-353M35UH SMT STD TOROIDAL INDUCTOR |
5 |
|
- |
CTSPT-L | Nonstandard | Bulk | Active | Toroidal | - | 35 µH | ±20% | 1.4 A | - | Unshielded | 166mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.378" (9.60mm) |
|
|
CTSPT30LF-123M12UH SMT STD TOROIDAL INDUCTOR |
5 |
|
- |
CTSPT-L | Nonstandard | Bulk | Active | Toroidal | - | 12 µH | ±20% | 2.8 A | - | Unshielded | 46mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.378" (9.60mm) |
|

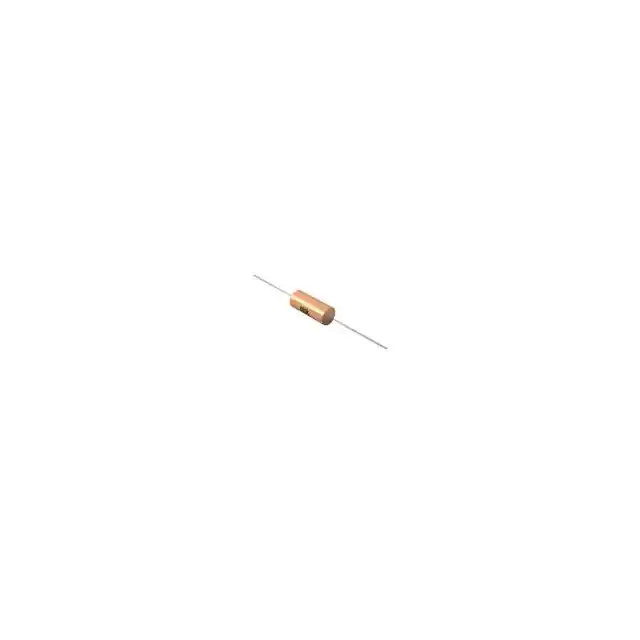

CTS4F-152K1500UH XIALSHIELDED INDUCTOR |
3 |
|
Datasheet |
CTS4F | Axial | Tape & Reel (TR) | Active | Molded | - | 1.5 mH | ±10% | 119 mA | 33mA | Shielded | 17Ohm Max | 70 @ 250kHz | 2.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.449" L (4.06mm x 11.40mm) | - |
|
|
CTSPT20LF-112M1.1UH SMT STD TOROIDAL INDUCTOR |
2 |
|
- |
CTSPT-L | Nonstandard | Bulk | Active | Toroidal | - | 1.1 µH | ±20% | 3.4 A | - | Unshielded | 11mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
CTS5F-250J25UH AXL MOLDED SHLD INDUCTOR |
2 |
|
Datasheet |
CTS5F | Axial | Bulk | Active | Molded | - | 25 µH | ±5% | 560 mA | - | Shielded | 800mOhm Max | 55 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.150" Dia x 0.449" L (3.81mm x 11.40mm) | - |
|

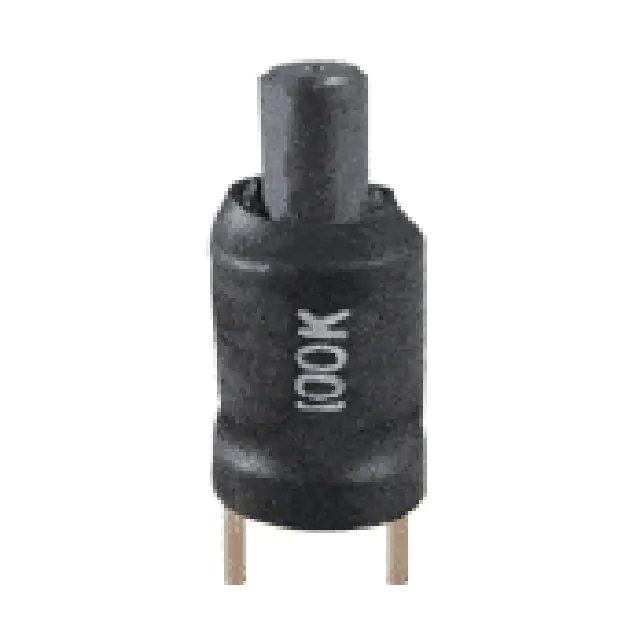

CTVF-1-100K-1010UH RADIAL POWER INDUCTOR |
7 |
|
- |
CTVF-0 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | - | 10.9A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 15.75 kHz | - | Through Hole | Radial | 0.630" Dia (16.00mm) | 1.098" (27.90mm) |
|

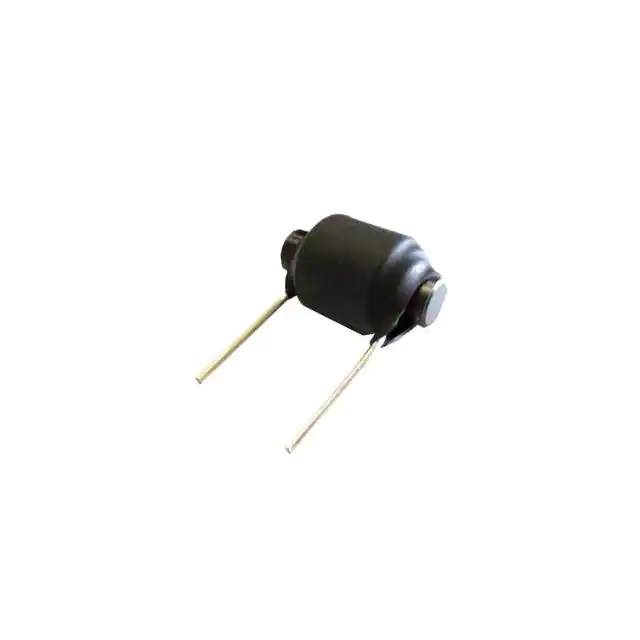

CTHR10F-680K68UH FILTER INDUCTOR |
1 |
|
Datasheet |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | 10 A | 8A | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.935" Dia (23.75mm) | 1.375" (34.93mm) |
|
CTSFW1030F-R33MSMD FLAT WIRE POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW1030F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 18 A | 36A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.134" (3.40mm) |
|
|
CTSFW1030F-2R2MSMD FLAT WIRE POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW1030F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 9 A | 15A | Shielded | 12.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.134" (3.40mm) |
|

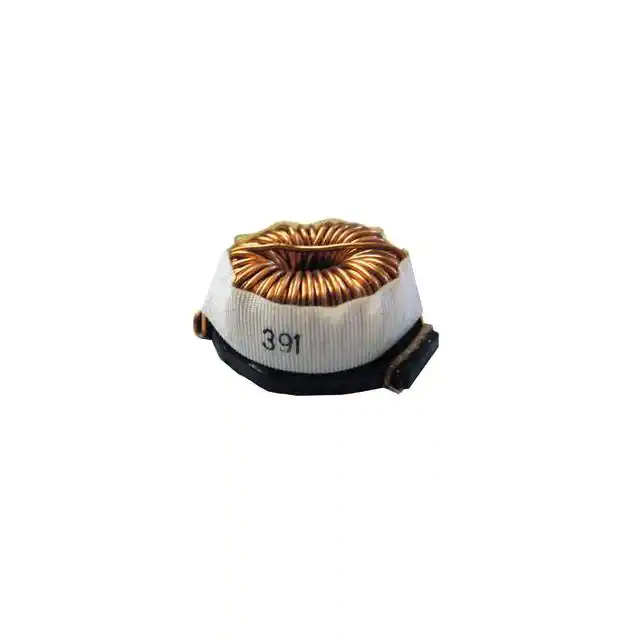

CTTSMD2110F-391KHIGH CURRENT SMD POWER INDUCTOR |
5 |
|
Datasheet |
CTTSMD2110F | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron | 390 µH | ±10% | - | 2.79A | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.098" W (30.50mm x 27.90mm) | 0.600" (15.24mm) |
|
CTSFW1040F-2R8MSMD FLAT WIRE POWER INDUCTOR |
5 |
|
Datasheet |
CTSFW1040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 9.5 A | 11A | Shielded | 11.7mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.173" (4.40mm) |
|
PQ108081H-471MHF470.00UH, 20%, 94.70MOHM, 4.50A |
20 |
|
Datasheet |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 5.7 A | 4.3A | - | 94.7mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081H-561MHF560.00UH, 20%, 116.90MOHM, 4.10A |
20 |
|
Datasheet |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 5.2 A | 3.9A | - | 116.9mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081H-102MHF1000.00UH, 20%, 206.00MOHM, 3.10 |
20 |
|
Datasheet |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 3.9 A | 2.95A | - | 206mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081H-221MHF220.00UH, 20%, 54.50MOHM, 6.60A |
20 |
|
Datasheet |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 7.6 A | 6.35A | - | 54.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081H-681MHF680.00UH, 20%, 150.30MOHM, 3.75A |
20 |
|
Datasheet |
PQ108081H | 3-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 4.6 A | 3.55A | - | 150.3mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | 3-SMD | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
CTSPT38LF-294MSMD TOROID |
5 |
|
- |
CTSPT-L | Nonstandard | Bulk | Active | Toroidal | - | 290 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.565" L x 0.560" W (14.35mm x 14.22mm) | 0.360" (9.14mm) |
|
XFHCL2620-681LFIXED IND 680UH 3A 135.0 MOHM SM |
20 |
|
Datasheet |
XFHCL2620 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±15% | 3 A | - | Shielded | 135mOhm Max | - | 1.59MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
XFHCL2620-680LFIXED IND 68UH 9A 17.0 MOHM SMD |
20 |
|
Datasheet |
XFHCL2620 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±15% | 9 A | - | Shielded | 17mOhm Max | - | 6.07MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
XFHCL2620-331LFIXED IND 330UH 4A 80.0 MOHM SMD |
20 |
|
Datasheet |
XFHCL2620 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±15% | 4 A | - | Shielded | 80mOhm Max | - | 2.66MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
