Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7847804271WE-MCI MULTILAYER CERAMIC SMD IN |
9,990 |
|
Datasheet |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 270 nH | ±5% | 110 mA | - | Unshielded | 4.9Ohm Max | 8 @ 100MHz | 500MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
SDCL1005C2N0CTDFFIXED IND 2NH 300MA 200MOHM SMD |
9,956 |
|
Datasheet |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2 nH | ±0.2nH | 300 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
SDFL1005LR15MTFFIXED IND 150NH 25MA 900MOHM SMD |
9,950 |
|
Datasheet |
SDFL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±20% | 25 mA | - | Shielded | 900mOhm Max | 10 @ 25MHz | 140MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
MLG0603S0N5CTD25FIXED IND 0.5NH 600MA 100MOHM SM |
9,947 |
|
Datasheet |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.5 nH | ±0.2nH | 600 mA | - | Unshielded | 100mOhm Max | - | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|
LQG15HZ3N6C02DFIXED IND 3.6NH 750MA 0.14OHM SM |
9,940 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 3.6 nH | ±0.2nH | 750 mA | - | Unshielded | 140mOhm Max | - | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15HZ1N5C02DFIXED IND 1.5NH 1A 0.07OHM SMD |
9,860 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.5 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | - | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
-,65-White-Field.jpg)
|
MCL1005-3R3-RFIXED IND 3.3NH 300MA 200MOHM SM |
9,820 |
|
Datasheet |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.3 nH | ±0.3nH | 300 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-1R1-RFIXED IND 1.1NH 400MA 100MOHM SM |
9,721 |
|
Datasheet |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.1 nH | ±0.3nH | 400 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|

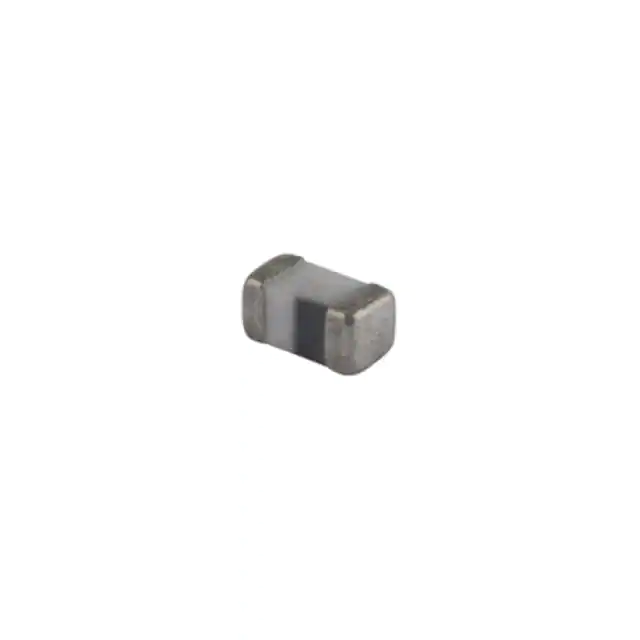

MCLA1005V2-2R4-RFIXED IND 2.4NH 300MA 150MOHM SM |
9,708 |
|
Datasheet |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.4 nH | ±0.3nH | 300 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MLG0603P2N0CTD25FIXED IND 2NH 600MA 100 MOHM SMD |
9,692 |
|
Datasheet |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2 nH | ±0.2nH | 600 mA | - | Unshielded | 100mOhm Max | 14 @ 500MHz | 8.5GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
SDCL1005C8N2HTDFFIXED IND 8.2NH 300MA 400MOHM SM |
9,685 |
|
Datasheet |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.2 nH | ±3% | 300 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-7R5-RFIXED IND 7.5NH 300MA 400MOHM SM |
9,680 |
|
Datasheet |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 7.5 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-181-RFIXED IND 180NH 100MA 3.7OHM SMD |
9,661 |
|
Datasheet |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 180 nH | ±5% | 100 mA | - | Unshielded | 3.7Ohm Max | 8 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
7447840168GWE-MK MULTILAYER CERAMIC SMD IND |
9,655 |
|
Datasheet |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 68 nH | ±2% | 180 mA | - | Unshielded | 1.25Ohm Max | 8 @ 100MHz | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
7447840218GWE-MK MULTILAYER CERAMIC SMD IND |
9,646 |
|
Datasheet |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 180 nH | ±2% | 150 mA | - | Unshielded | 3.38Ohm Max | 8 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MCL1005-820-RFIXED IND 82NH 150MA 2.4 OHM SMD |
9,622 |
|
Datasheet |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 82 nH | ±5% | 150 mA | - | Unshielded | 2.4Ohm Max | 8 @ 100MHz | 750MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
7447840212GWE-MK MULTILAYER CERAMIC SMD IND |
9,617 |
|
Datasheet |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 120 nH | ±2% | 150 mA | - | Unshielded | 1.6Ohm Max | 8 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15HZ1N3C02DFIXED IND 1.3NH 1A 0.07OHM SMD |
9,602 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.3 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | - | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
7847803270WE-MCI MULTILAYER CERAMIC SMD IN |
9,574 |
|
Datasheet |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 170mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MCL1005-5R6-RFIXED IND 5.6NH 300MA 250MOHM SM |
9,564 |
|
Datasheet |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 5.6 nH | ±0.3nH | 300 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
