Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53820NLFIXED IND 115UH 670MA 400MOHM TH |
921 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tray | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
74459147FIXED IND 47UH 2.8A 0.097OHM SMD |
511 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 47 µH | ±20% | 2.8 A | 4A | Shielded | 97mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
DRA124-4R7-RFIXED IND 4.7UH 5.47A 14MOHM SMD |
747 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 5.47 A | 9.06A | Shielded | 14mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

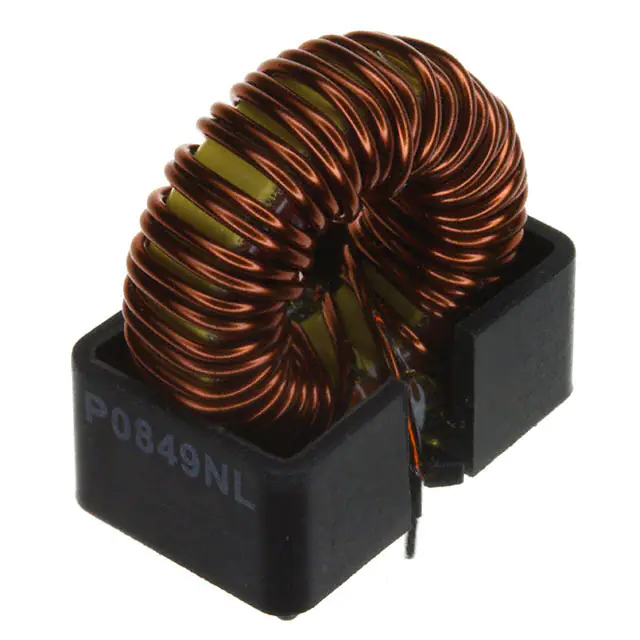

P0849NLFIXED IND 33UH 5A 47 MOHM TH |
1,080 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 33 µH | ±20% | 5 A | - | Shielded | 47mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.350" (34.29mm) |
|
IHA203EBFIXED IND 100UH 2.7A 120 MOHM TH |
127 |
|
Datasheet |
IHA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.7 A | - | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 0.920" L (12.70mm x 23.37mm) | - |
|

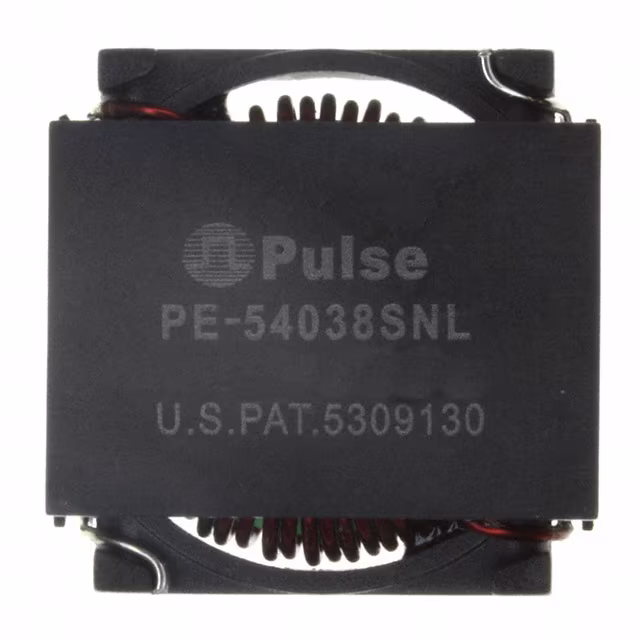

PE-54038SNLTFIXED IND 77UH 2.7A 90 MOHM SMD |
2,115 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|

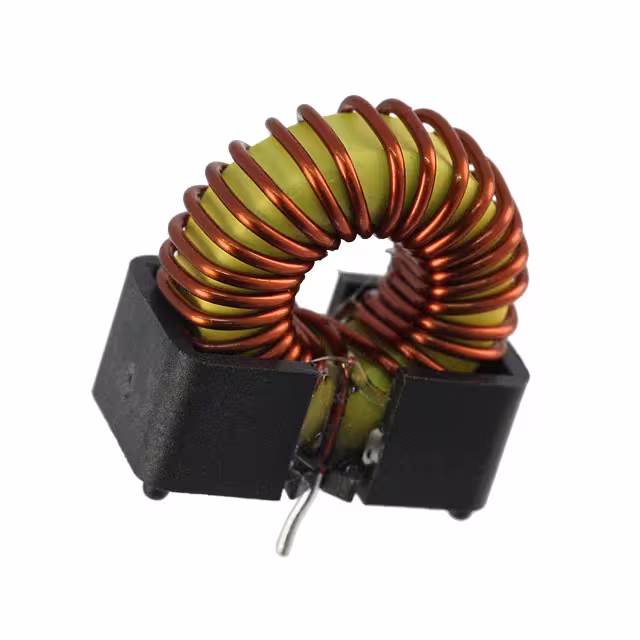

PE-92111KNLFIXED IND 40UH 4A 27 MOHM TH |
744 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 40 µH | ±20% | 4 A | - | Unshielded | 27mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" L x 0.450" W (21.59mm x 11.43mm) | 0.950" (24.13mm) |
|
RC-10FIXED IND 100UH 2A 98 MOHM TH |
166 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2 A | - | Unshielded | 98mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
2206-H-RCFIXED IND 27UH 9.8A 11 MOHM TH |
1,407 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 27 µH | ±15% | 9.8 A | - | Shielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
.jpg)
|
AIRD-06-102KFIXED IND 1MH 1A 818 MOHM TH |
886 |
|
Datasheet |
AIRD-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 1 A | 3.1A | Unshielded | 818mOhm Max | 15 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
2214-H-RCFIXED IND 150UH 3.1A 110 MOHM TH |
187 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 3.1 A | - | Shielded | 110mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2207-H-RCFIXED IND 33UH 7.4A 20 MOHM TH |
183 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 33 µH | ±15% | 7.4 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2210-H-RCFIXED IND 56UH 6.4A 26 MOHM TH |
107 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 56 µH | ±15% | 6.4 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
WTX0420T3R3MTR01FIXED IND 3.320%UH 0.026OHM 5400 |
1,850 |
|
Datasheet |
WT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6.6 A | 4.7A | Unshielded | 28.6mOhm Max | - | 18MHz | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
WTX0420TR47MTR01FIXED IND 0.4720%UH 0.005OHM 115 |
1,746 |
|
Datasheet |
WT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 17 A | 11.2A | Unshielded | 4.5mOhm Max | - | 61MHz | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
HCMA1707-6R8-RFIXED IND 6.8UH 20A 7.55MOHM SMD |
1,643 |
|
Datasheet |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 20 A | 22A | Shielded | 7.55mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCMA1707-150-RFIXED IND 15UH 12A 15.5 MOHM SMD |
995 |
|
Datasheet |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±20% | 12 A | 13A | Shielded | 15.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCMA1707-470-RFIXED IND 47UH 6.8A 47 MOHM SMD |
882 |
|
Datasheet |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±20% | 6.8 A | 7.5A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCMA1707-100-RFIXED IND 10UH 14A 10 MOHM SMD |
633 |
|
Datasheet |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 14 A | 18A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCMA1707-680-RFIXED IND 68UH 5.2A 85 MOHM SMD |
320 |
|
Datasheet |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 68 µH | ±20% | 5.2 A | 6.5A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
