Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744777928FIXED IND 820UH 210MA 5.2OHM SMD |
676 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 210 mA | 260mA | Shielded | 5.2Ohm Max | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

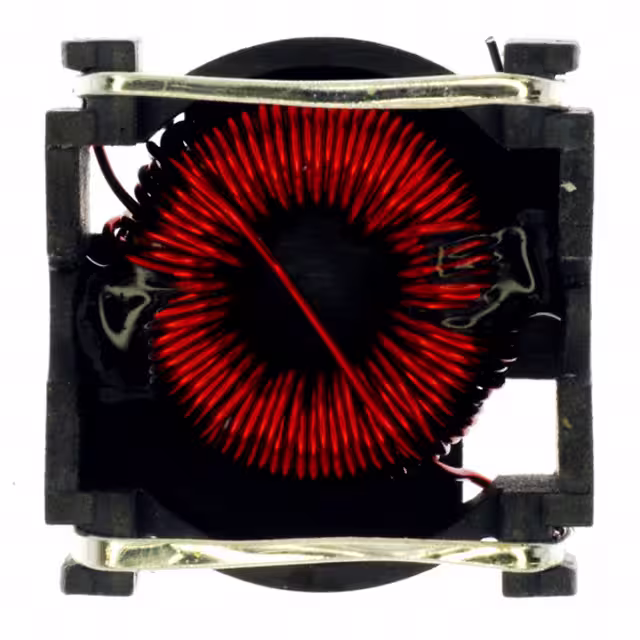

PE-53821SNLFIXED IND 78UH 820MA 300MOHM SMD |
562 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
7447783047FIXED IND 4.7UH 3.3A 35 MOHM SMD |
477 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.3 A | 4.6A | Shielded | 35mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
7447783151FIXED IND 150UH 630MA 750MOHM SM |
462 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 630 mA | 840mA | Shielded | 750mOhm Max | - | 6.25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
744778003FIXED IND 3.3UH 3.1A 32 MOHM SMD |
434 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.1 A | 4.1A | Shielded | 32mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
784777100FIXED IND 10UH 1.9A 126 MOHM SMD |
284 |
|
Datasheet |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 1.9 A | 2.6A | Shielded | 126mOhm Max | - | 32.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.169" (4.30mm) |
|
74477830FIXED IND 1MH 200MA 9.44 OHM SMD |
259 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 200 mA | 180mA | Shielded | 9.44Ohm Max | - | 2.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
7447783100FIXED IND 10UH 2.2A 68 MOHM SMD |
234 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.2 A | 3.1A | Shielded | 68mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
7447789118FIXED IND 18UH 1.41A 140MOHM SMD |
225 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.41 A | 1.7A | Shielded | 140mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
7447783470FIXED IND 47UH 1.2A 210 MOHM SMD |
225 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.45A | Shielded | 210mOhm Max | - | 11.6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
FP1308-R21-RFIXED IND 210NH 68A 0.24MOHM SMD |
171 |
|
Datasheet |
FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 210 nH | ±10% | 68 A | 72A | Unshielded | 0.24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | 0.315" (8.00mm) |
|
|
7447783102FIXED IND 1MH 230MA 4.6 OHM SMD |
127 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 230 mA | 320mA | Shielded | 4.6Ohm Max | - | 2.2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
FP1005R1-R10-RFIXED IND 100NH 53A 0.39MOHM SMD |
1,988 |
|
Datasheet |
FLAT-PAC, FP1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 53 A | 73A | Unshielded | 0.39mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.95mm) |
|
B82477R4105M100FIXED IND 1MH 720MA 1.35 OHM SMD |
673 |
|
Datasheet |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 720 mA | 950mA | Shielded | 1.35Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
UP2B-221-RFIXED IND 220UH 773MA 671.7 MOHM |
632 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 773 mA | 637mA | Unshielded | 671.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
IHLP5050FDER100M8AIHLP-5050FD-8A 10 20% ER E3 |
580 |
|
Datasheet |
IHLP-5050FD-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 12.1 A | 7.8A | Shielded | 17.76mOhm Max | - | 10.7MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
SRP1265WA-6R8MIND,13.6X12.6X6.2MM,6.8UH20%,14A |
456 |
|
Datasheet |
SRP1265WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 14 A | 17A | Shielded | 11.2mOhm Max | 20 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.256" (6.50mm) |
|
IHLP5050FDER2R2M5AFIXED IND 2.2UH 25.5A 3.67 MOHM |
390 |
|
Datasheet |
IHLP-5050FD-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 25.5 A | 21.5A | Shielded | 3.67mOhm Max | - | 23.3MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDER100M5AFIXED IND 10UH 10.9A 17.76 MOHM |
241 |
|
Datasheet |
IHLP-5050FD-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 10.9 A | 7.2A | Shielded | 17.76mOhm Max | - | 10.7MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.252" (6.40mm) |
|
|
SRP1265WA-1R0MIND,13.6X12.6X6.2MM,1UH20%,32A,S |
160 |
|
Datasheet |
SRP1265WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 32 A | 32A | Shielded | 2.1mOhm Max | 20 @ 100kHz | 39MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.535" L x 0.496" W (13.60mm x 12.60mm) | 0.256" (6.50mm) |
