Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-16-RCFIXED IND 680NH 450MA 600MOHM TH |
716 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 680 nH | ±10% | 450 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-44-RCFIXED IND 10UH 180MA 3.7 OHM TH |
695 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 180 mA | - | Unshielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-22-RCFIXED IND 1.2UH 825MA 180MOHM TH |
677 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 825 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
9250A-154-RCFIXED IND 150UH 140MA 4.1 OHM TH |
560 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 150 µH | ±10% | 140 mA | 90mA | Shielded | 4.1Ohm Max | 55 @ 790kHz | 8.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-474-RCFIXED IND 470UH 92MA 9.5 OHM TH |
522 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 470 µH | ±10% | 92 mA | 58mA | Shielded | 9.5Ohm Max | 60 @ 790kHz | 5.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

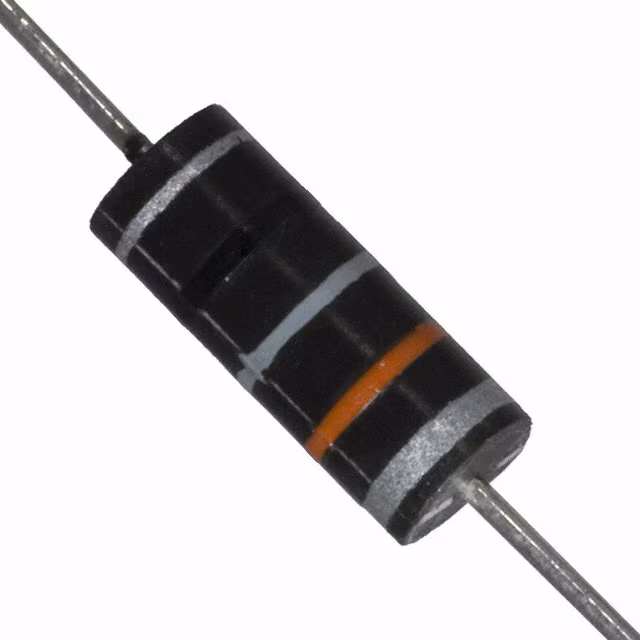

9250A-393-RCFIXED IND 39UH 205MA 1.93 OHM TH |
511 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 39 µH | ±10% | 205 mA | 180mA | Shielded | 1.93Ohm Max | 50 @ 2.5MHz | 29MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-825-RCFIXED IND 8.2MH 26MA 119 OHM TH |
501 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 8.2 mH | ±10% | 26 mA | 15mA | Shielded | 119Ohm Max | 40 @ 250kHz | 540kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
8230-08-RCFIXED IND 330NH 780MA 200MOHM TH |
464 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 330 nH | ±10% | 780 mA | - | Unshielded | 200mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

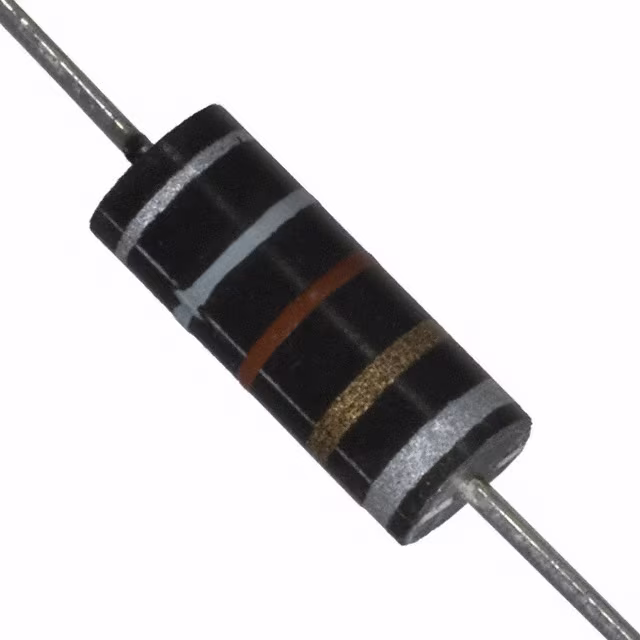

9250A-181-RCFIXED IND 180NH 1.3A 47 MOHM TH |
398 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 180 nH | ±10% | 1.3 A | 1.3A | Shielded | 47mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

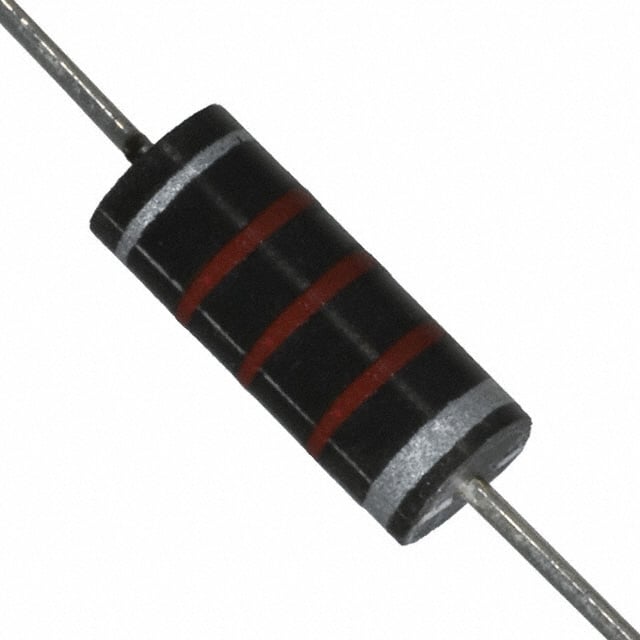

9250A-225-RCFIXED IND 2.2MH 50MA 33.8 OHM TH |
288 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 2.2 mH | ±10% | 50 mA | 27mA | Shielded | 33.8Ohm Max | 45 @ 250kHz | 970kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-275-RCFIXED IND 2.7MH 40MA 47.3 OHM TH |
183 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 2.7 mH | ±10% | 40 mA | 25mA | Shielded | 47.3Ohm Max | 45 @ 250kHz | 920kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

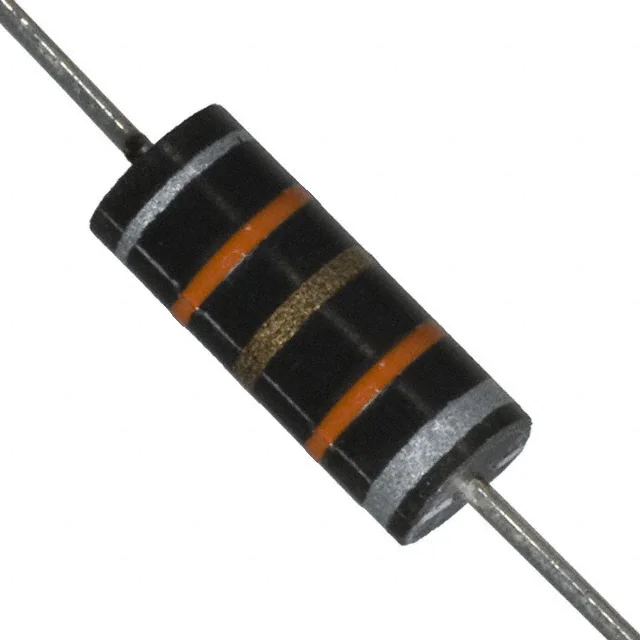

9250A-332-RCFIXED IND 3.3UH 480MA 350MOHM TH |
126 |
|
Datasheet |
9250A | Axial | Bulk | Active | Molded | Ferrite | 3.3 µH | ±10% | 480 mA | 480mA | Shielded | 350mOhm Max | 44 @ 7.9MHz | 85MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
7847131020WE-RCIT ROD CORE INDUCTOR THT 2. |
118 |
|
Datasheet |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | 2 µH | ±25% | 15 A | 34A | Unshielded | 1.7mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.394" Dia x 1.012" L (10.00mm x 25.70mm) | - |
|
PD0120.503NLFIXED IND 56.5UH 3.4A 82.5 MOHM |
1,070 |
|
Datasheet |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 56.5 µH | ±10% | 3.4 A | 4.3A | Unshielded | 82.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
DRA73-6R8-RFIXED IND 6.8UH 2.62A 41MOHM SMD |
5,448 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 2.62 A | 2.96A | Shielded | 41mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
MPIA4020V2-100-RFIXED IND 10UH 1.7A 281 MOHM SMD |
3,067 |
|
Datasheet |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 1.7 A | 2.2A | Shielded | 281mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
5900-393-RCFIXED IND 39MH 120MA 31 OHM TH |
1,179 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 39 mH | ±10% | 120 mA | 130mA | Unshielded | 31Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-562-RCFIXED IND 5.6MH 320MA 4.1 OHM TH |
1,030 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 320 mA | 350mA | Unshielded | 4.1Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
SBC6-681-631FIXED IND 680UH 630MA 980MOHM TH |
508 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 630 mA | 1.3A | Unshielded | 980mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.728" (18.50mm) |
|
PA2729.283NLFIXED IND 28.1UH 7.8A 14MOHM SMD |
965 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 28.1 µH | ±15% | 7.8 A | 9A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
