Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C-40XFIXED IND 320MH 600MA 10 OHM |
143 |
|
Datasheet |
C | Nonstandard | Bulk | Active | Wirewound | - | 320 mH | -20%, +50% | 600 mA | - | Unshielded | 10Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.312" L x 2.000" W (84.12mm x 50.80mm) | 1.940" (49.28mm) |
|

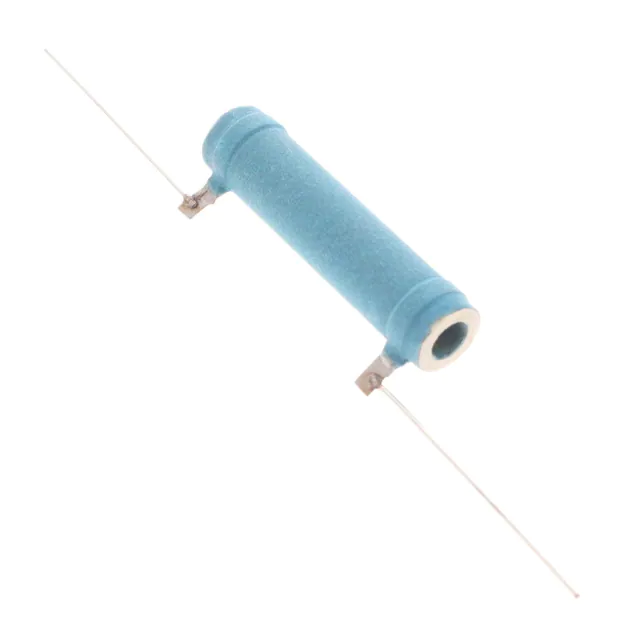

Z14EFIXED IND 44UH 680MA 2.6 OHM |
152 |
|
Datasheet |
Z | - | Bulk | Active | - | - | 44 µH | - | 680 mA | - | - | 2.6Ohm | - | - | - | - | 1 kHz | - | - | - | 0.437" Dia x 1.992" L (11.11mm x 50.60mm) | - |
|
506WLSM0R70KT619TFIXED IND 700NH 619MA 320MOHM SM |
3,934 |
|
Datasheet |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 700 nH | ±10% | 619 mA | - | Unshielded | 320mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
|
506WLSM1R10KT438TFIXED IND 1.1UH 438MA 640MOHM SM |
1,078 |
|
Datasheet |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.1 µH | ±10% | 438 mA | - | Unshielded | 640mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.127" L x 0.080" W (3.23mm x 2.03mm) | 0.105" (2.67mm) |
|
IHXL1500VZEB2R2M51FIXED IND 2.2UH 168A 0.34MOHM TH |
140 |
|
Datasheet |
IHXL-1500VZ-51 | Nonstandard | Bulk | Active | - | - | 2.2 µH | ±20% | 168 A | - | Shielded | 0.34mOhm Max | - | - | - | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|
159ZJFIXED IND 10MH 5A 160 MOHM CHASS |
101 |
|
Datasheet |
159 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 5 A | - | Unshielded | 160mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
750343810FIXED IND 340UH 15A 50 MOHM TH |
100 |
|
Datasheet |
MID-FLT | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 340 µH | ±20% | 15 A | 24A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 2.657" Dia (67.50mm) | 1.570" (39.88mm) |
|
195C20FIXED IND 1MH 20A 13 MOHM CHASS |
47 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 20 A | - | Unshielded | 13mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.000" L x 3.060" W (76.20mm x 77.72mm) | 2.500" (63.50mm) |
|
|
195G10FIXED IND 5MH 10A 40 MOHM CHASS |
26 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 10 A | - | Unshielded | 40mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 3.600" W (95.25mm x 91.44mm) | 3.130" (79.50mm) |
|
|
195E20FIXED IND 2.5MH 20A 22 MOHM CHAS |
39 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 20 A | - | Unshielded | 22mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 4.200" W (95.25mm x 106.68mm) | 3.130" (79.50mm) |
|

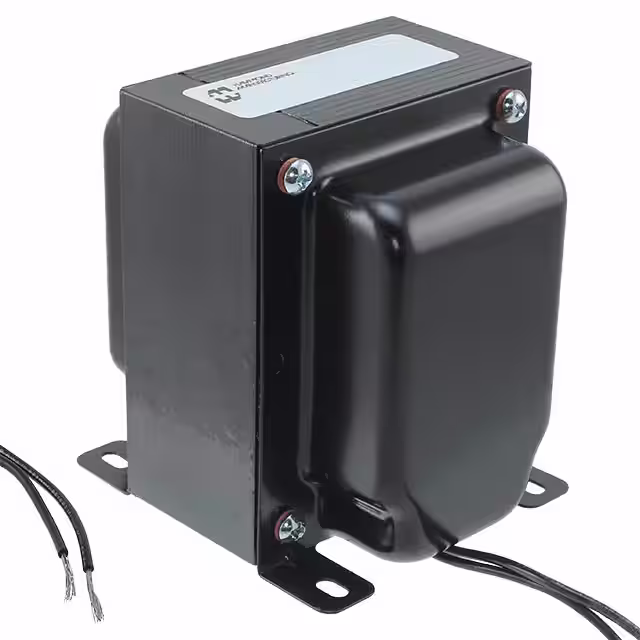

193VFIXED IND 150MH 3A 1OHM CHAS MNT |
30 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 150 mH | ±15% | 3 A | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) |
|

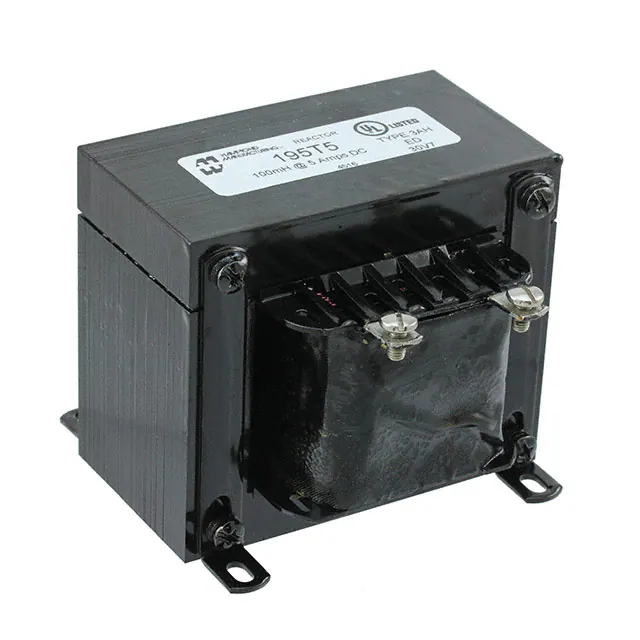

195T5FIXED IND 100MH 5A 640 MOHM CHAS |
46 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 100 mH | ±15% | 5 A | - | Unshielded | 640mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.500" L x 5.250" W (114.30mm x 133.35mm) | 3.750" (95.25mm) |
|
CLF6045NIT-3R3N-DFIXED IND 3.3UH 3.5A 25 MOHM SMD |
3,437 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.5 A | 3.5A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
LRC0402CJ33NGV001TFIXED IND 33NH 200MA 1 OHM SMD |
1,478,243 |
|
Datasheet |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±5% | 200 mA | - | Unshielded | 1Ohm Max | 8 @ 100MHz | 1.6GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LRC0402CJ22NGV001TFIXED IND 22NH 200MA 800MOHM SMD |
1,283,176 |
|
Datasheet |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 200 mA | - | Unshielded | 800mOhm Max | 8 @ 100MHz | 2.1GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LRC0402CS3N3GV001TFIXED IND 3.3NH 300MA 190MOHM SM |
1,244,287 |
|
Datasheet |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 300 mA | - | Unshielded | 190mOhm Max | 8 @ 100MHz | 8.5GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LRC0201BS1N8GV001TFIXED IND 1.8NH 300MA 220MOHM SM |
920,804 |
|
Datasheet |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 220mOhm Max | 4 @ 100MHz | 10.5GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LRC0402CJ10NGV001TFIXED IND 10NH 250MA 450MOHM SMD |
803,584 |
|
Datasheet |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 250 mA | - | Unshielded | 450mOhm Max | 8 @ 100MHz | 3.7GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
.jpg)
|
LQP03TN5N1H02DFIXED IND 5.1NH 350MA 400MOHM SM |
533,301 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 5.1 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 14 @ 500MHz | 4.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LRC0201BS3N9GV001TFIXED IND 3.9NH 300MA 450MOHM SM |
522,347 |
|
Datasheet |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 450mOhm Max | 4 @ 100MHz | 6.8GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
