Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP7030-R68MFIXED IND 680NH 15.5A 0.0055OHM |
1,014 |
|
Datasheet |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 680 nH | ±20% | 15.5 A | 23A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
IMC1812ER470KFIXED IND 47UH 140MA 5 OHM SMD |
947 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±10% | 140 mA | - | Unshielded | 5Ohm Max | 50 @ 2.52MHz | 10MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
EXL1V0606-8R2-RFIXED IND 8.2UH 8A 24.8MOHM SMD |
658 |
|
Datasheet |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 8.2 µH | ±20% | 8 A | 8A | Shielded | 24.8mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
CDRH125/LDNP-330MCFIXED IND 33UH 2.6A 65 MOHM SMD |
220 |
|
- |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.6 A | - | Shielded | 65mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

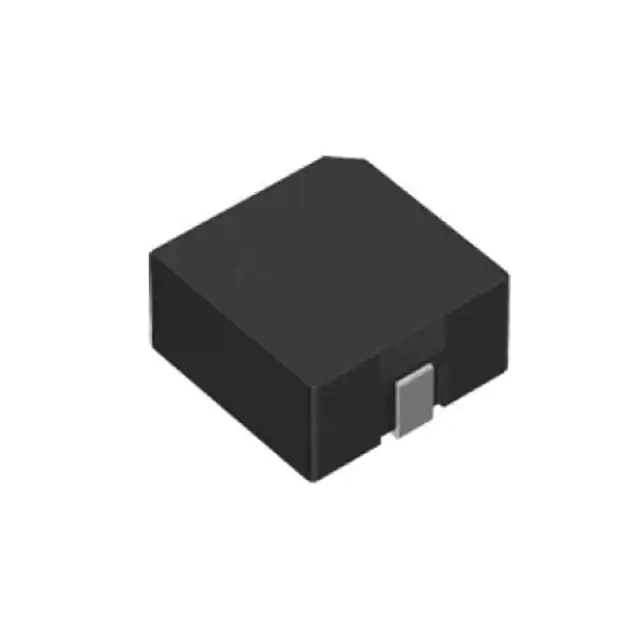

SPM12565XT-1R0MFIXED IND 1UH 22A 2.28 MOHM SMD |
163 |
|
Datasheet |
SPM-XT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 22 A | 42A | Shielded | 2.28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.256" (6.50mm) |
|
B82477G4392M000FIXED IND 3.9UH 7.5A 12.5MOHM SM |
153 |
|
Datasheet |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 7.5 A | 9.5A | Shielded | 12.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
SPM4012T-R47M-LRFIXED IND 470NH 6.7A 17.6MOHM SM |
152 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 6.7 A | 8.5A | Shielded | 17.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-2R2M-LRFIXED IND 2.2UH 3.1A 85.4MOHM SM |
132 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 3.1 A | 4.8A | Shielded | 85.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4020T-R47M-LRFIXED IND 470NH 8.7A 11.8MOHM SM |
118 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 8.7 A | 14.1A | Shielded | 11.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
B82462A4102M000FIXED IND 1UH 3A 24 MOHM SMD |
12,890 |
|
Datasheet |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3 A | 5.8A | Unshielded | 24mOhm Max | - | 130MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
B82462A4472M000FIXED IND 4.7UH 1.65A 80MOHM SMD |
6,271 |
|
Datasheet |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.65 A | 2.8A | Unshielded | 80mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CDR6D28MNNP-7R7NCFIXED IND 7.7UH 2A 76.3 MOHM SMD |
4,816 |
|
Datasheet |
CDR6D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 7.7 µH | ±25% | 2 A | 2.85A | Shielded | 76.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.118" (3.00mm) |
|
IHLP2525CZER1R5M5AFIXED IND 1.5UH SMD |
4,767 |
|
Datasheet |
IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
PA3784.151HLFIXED IND 150NH 67A 0.18MOHM SMD |
4,061 |
|
Datasheet |
PA3784.XXXHL | Nonstandard | Tray | Active | - | - | 150 nH | ±10% | 67 A | 83A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.315" (8.00mm) |
|
VCMT053T-100MN5FIXED IND 10UH 2.5A 129.5MOHM SM |
3,816 |
|
Datasheet |
VCMT053T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 2.5 A | 2A | Unshielded | 129.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.207" W (5.45mm x 5.25mm) | 0.118" (3.00mm) |
|
|
VCMT053T-4R7MN5FIXED IND 4.7UH 4.4A 59MOHM SMD |
3,142 |
|
Datasheet |
VCMT053T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 4.4 A | 3.9A | Unshielded | 59mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.207" W (5.45mm x 5.25mm) | 0.118" (3.00mm) |
|

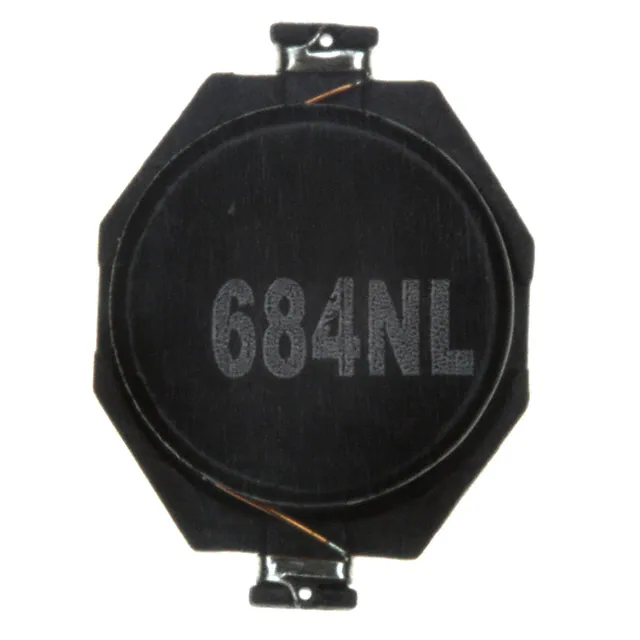

P0752.684NLTFIXED IND 680UH 400MA 2.17OHM SM |
2,993 |
|
Datasheet |
P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 400 mA | 400mA | Unshielded | 2.17Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
VCMT053T-1R0MN5FIXED IND 1UH 10.3A 11.5MOHM SMD |
2,028 |
|
Datasheet |
VCMT053T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 10.3 A | 5.7A | Unshielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.207" W (5.45mm x 5.25mm) | 0.118" (3.00mm) |
|
PA5034.331HLTIND PWR BEAD 330NH 40A SMD |
1,785 |
|
Datasheet |
PA5034.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±15% | 40 A | 40A | Shielded | 0.4mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|
IHLP2020CZER220M5AIHLP-2020CZ-5A 22 20% ER E3 |
1,710 |
|
Datasheet |
IHLP-2020CZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
