Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DO5040H-183MLDFIXED IND 18UH 6A 22MOHM SM Coilcraft |
123 |
|
Datasheet |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 18 µH | ±20% | 6 A | 13.2A | Unshielded | 22mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.472" (12.00mm) |
|
|
XEL4020-331MECFIXED IND 330NH 15.4A 5.7MOHM SM Coilcraft |
24,957 |
|
Datasheet |
XEL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±20% | 15.4 A | 15.7A | Shielded | 5.7mOhm Max | - | 124MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|

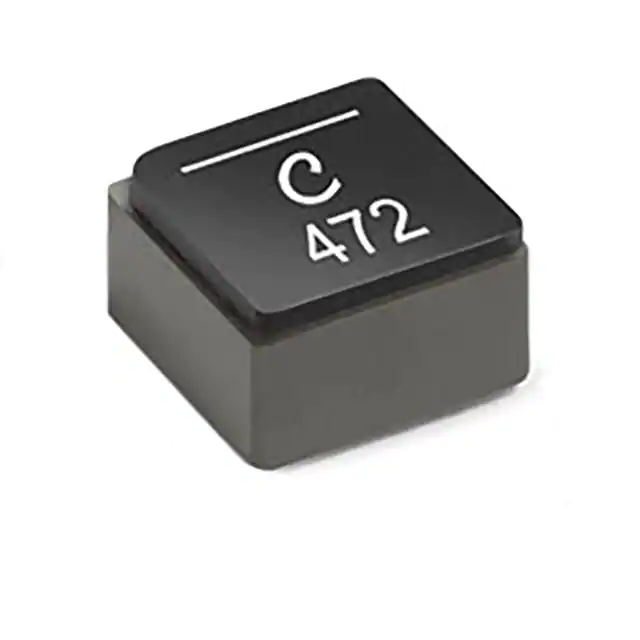

XGL4025-822MECFIXED INDUCTOR 8.2UH SMD Coilcraft |
2,820 |
|
Datasheet |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 8.2 µH | ±20% | 4 A | 3.3A | Shielded | 76mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
XEL4020-201MECFIXED IND 200NH 17.2A 3.35MOHM Coilcraft |
2,613 |
|
Datasheet |
XEL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 200 nH | ±20% | 17.2 A | 19.7A | Shielded | 3.35mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
XEL4020-800MECFIXED IND 80NH 21.4A 1.8MOHM SM Coilcraft |
2,501 |
|
Datasheet |
XEL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 80 nH | ±20% | 21.4 A | 33.2A | Shielded | 1.8mOhm Max | - | 305MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.087" (2.20mm) |
|
|
XGL4025-331MECFIXED INDUCTOR 0.33UH SMD Coilcraft |
2,010 |
|
Datasheet |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 330 nH | ±20% | 21.6 A | 16.2A | Shielded | 3.2mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
SER2010-901MLDFIXED IND 900NH 45A 1MOHM SM Coilcraft |
251 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 900 nH | ±20% | 45 A | 48A | Shielded | 1mOhm Max | - | 96MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
|
SER2010-801MLDFIXED IND 800NH 45A 1MOHM SM Coilcraft |
234 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 800 nH | ±20% | 45 A | 53A | Shielded | 1mOhm Max | - | 92MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2010 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.370" (9.40mm) |
|
|
MSS1048-152NLCFIXED IND 1.5UH 10.8A 5.1MOHM SM Coilcraft |
2,151 |
|
Datasheet |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1.5 µH | ±30% | 10.8 A | 5.44A | Shielded | 5.1mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MSS1048-823MLCFIXED IND 82UH 1.67A 196MOHM SM Coilcraft |
1,890 |
|
Datasheet |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 82 µH | ±20% | 1.67 A | 1.08A | Shielded | 196mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
